Camshaft Gear/Sprocket

CMP Actuator Bolt (a):
Tightening torque 60 Nm (6.1 kgf-m, 44.5 lbf-ft)






Exhaust Camshaft Timing Sprocket Bolt (a):
Tightening torque 60 Nm (6.1 kgf-m, 44.5 lbf-ft)

NOTE:
If the bolt is tightened using the extension special tool until the torque wrench reads the specified torque, the bolt will actually be tightened to a torque much more than the specified torque. This could cause damage to the related components.

Use the formula shown below to determine the correct reading of the torque wrench for its length. Then tighten the bolt until the torque wrench indicates the value thus determined.

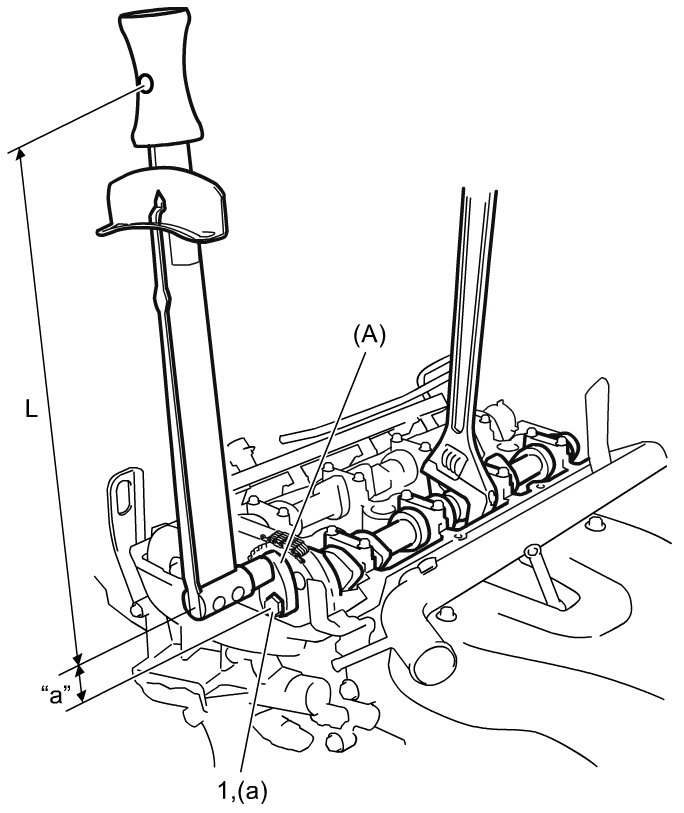

Formula for reading value of torque wrench.
M = T X L / (L + "a")
- M: Reading value using extension special tool
- T: Specified torque
- L: Torque wench length
- "a": Dimension of special tool
