Front Suspension

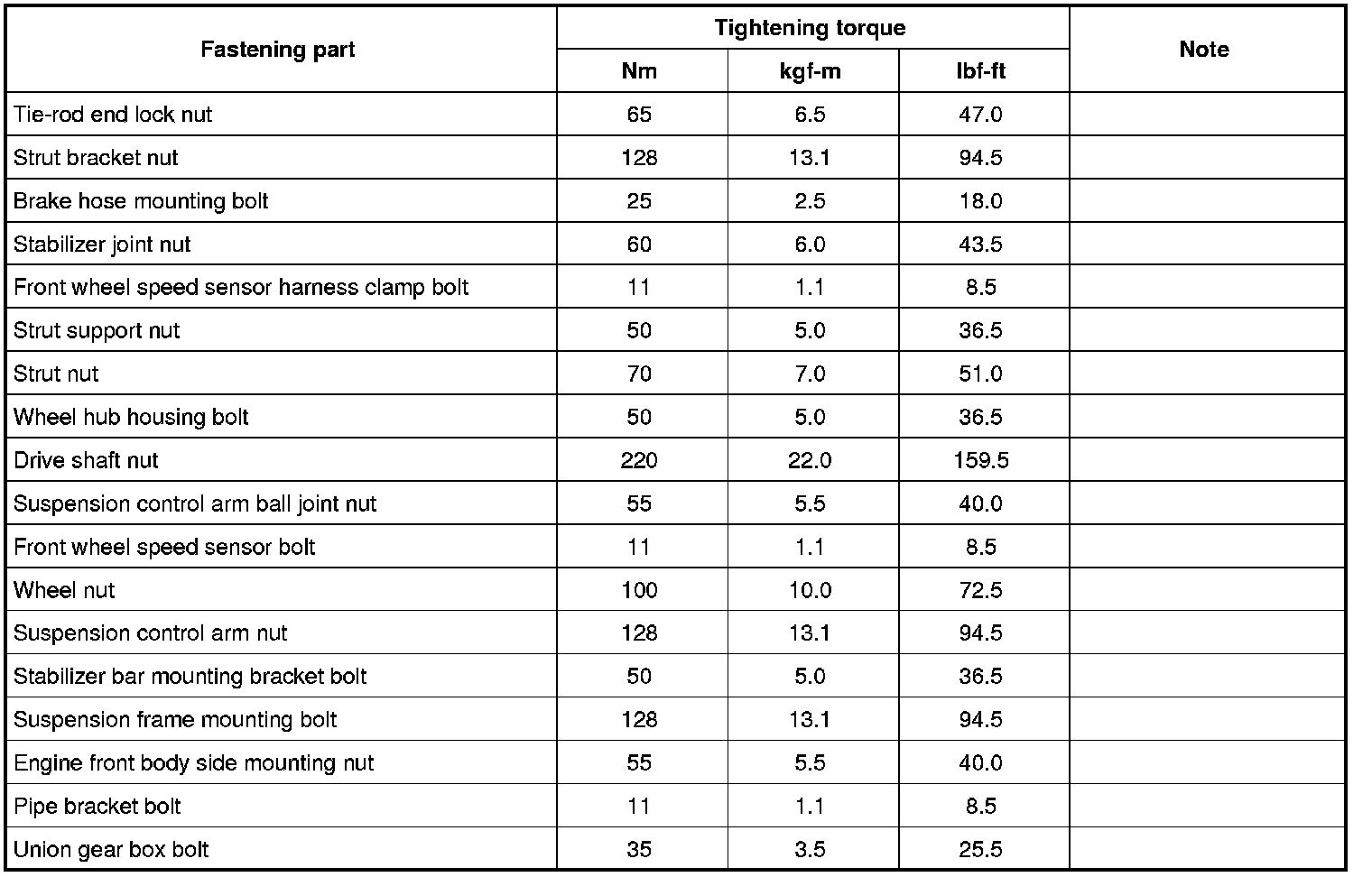

Tightening Torque Specifications







NOTE:

The tightening torque(s) also specified in:

Front Suspension Front Suspension Construction

Front Strut Assembly Components Front Strut Assembly Components

Front Wheel Hub Assembly and Steering Knuckle Components Front Wheel Hub Assembly and Steering Knuckle Components

Front Suspension Frame, Stabilizer Bar and/or Bushings Components Front Suspension Frame, Stabilizer Bar and/or Bushings Components

Reference:

For the tightening torques of fasteners not specified in this section, refer to Fastener Information Fastener Information.
