Charging System: Testing and Inspection
Generator Symptom Diagnosis
Trouble in charging system will show up as one or more of the following conditions.

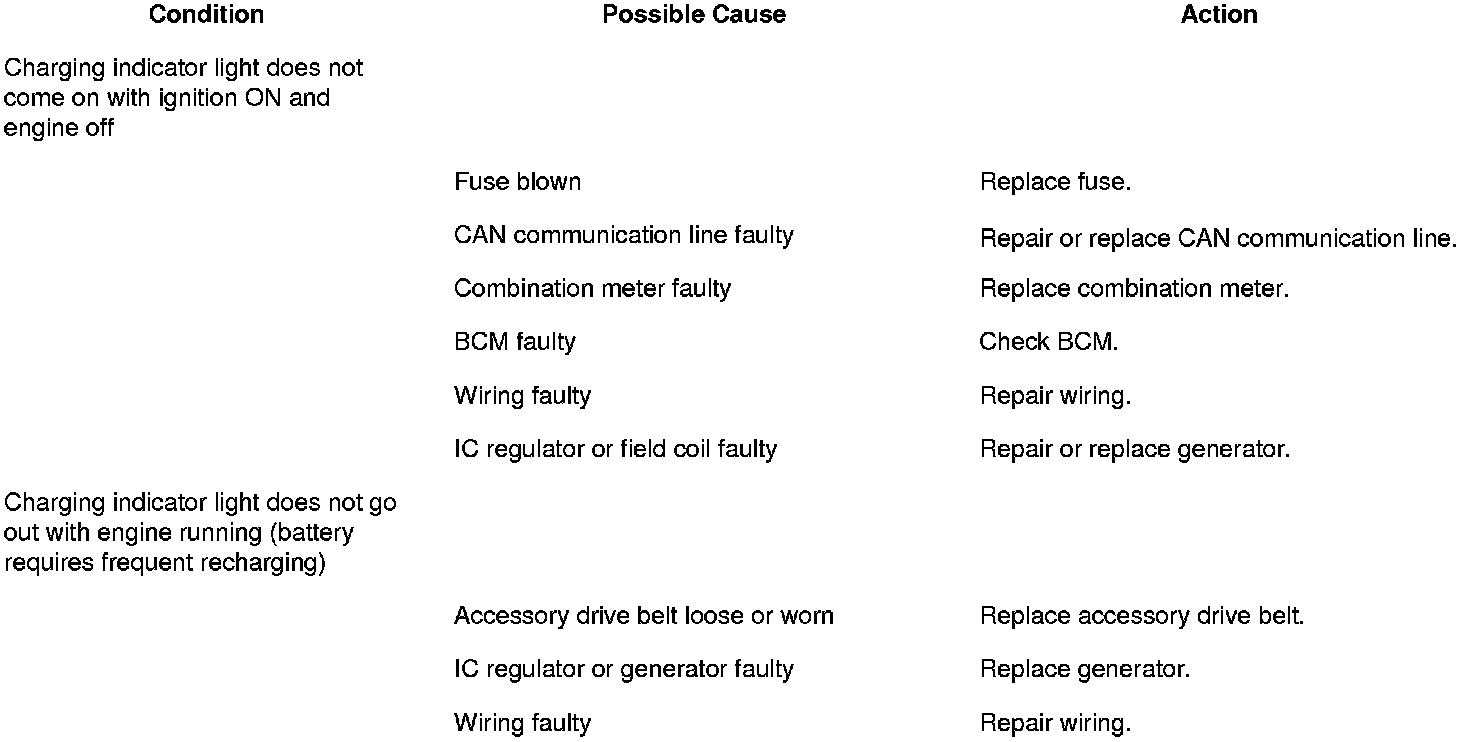

Charging Indicator Light Operation Failure
CAN DTC (Lost Communication and Communication Bus Off) Table

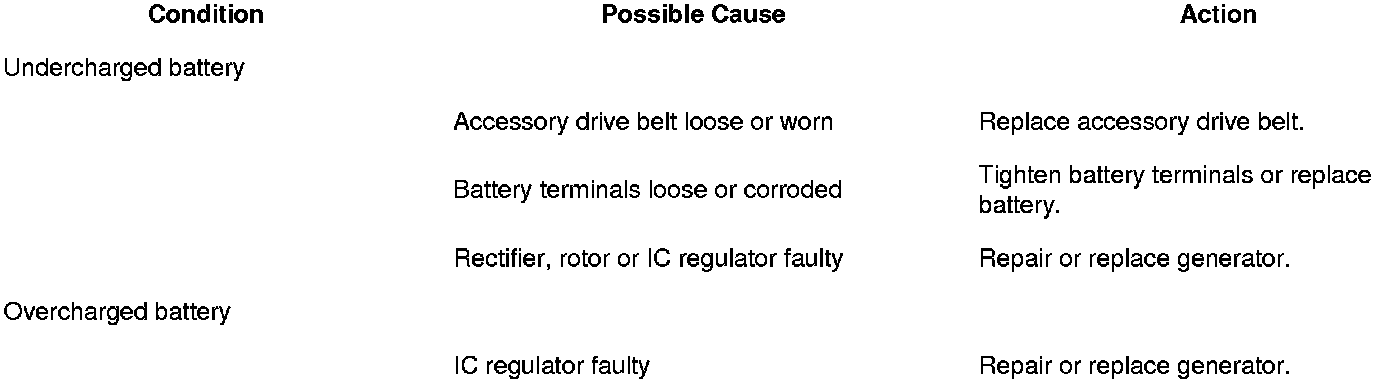

Battery Charging Failure

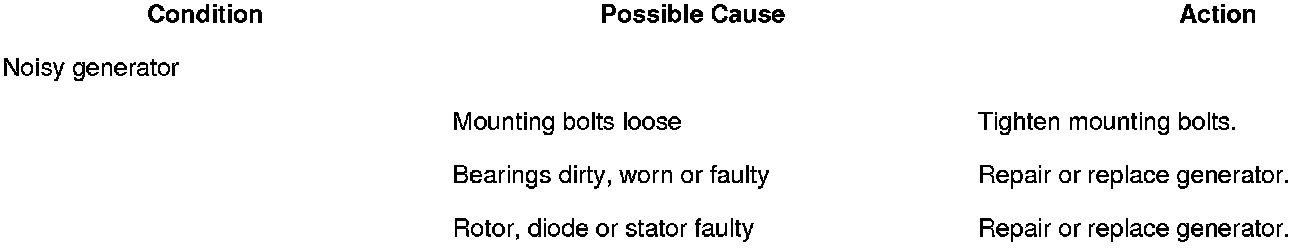

Noise
