Cruise Control Module: Locations

Cruise Control Component Locations.:

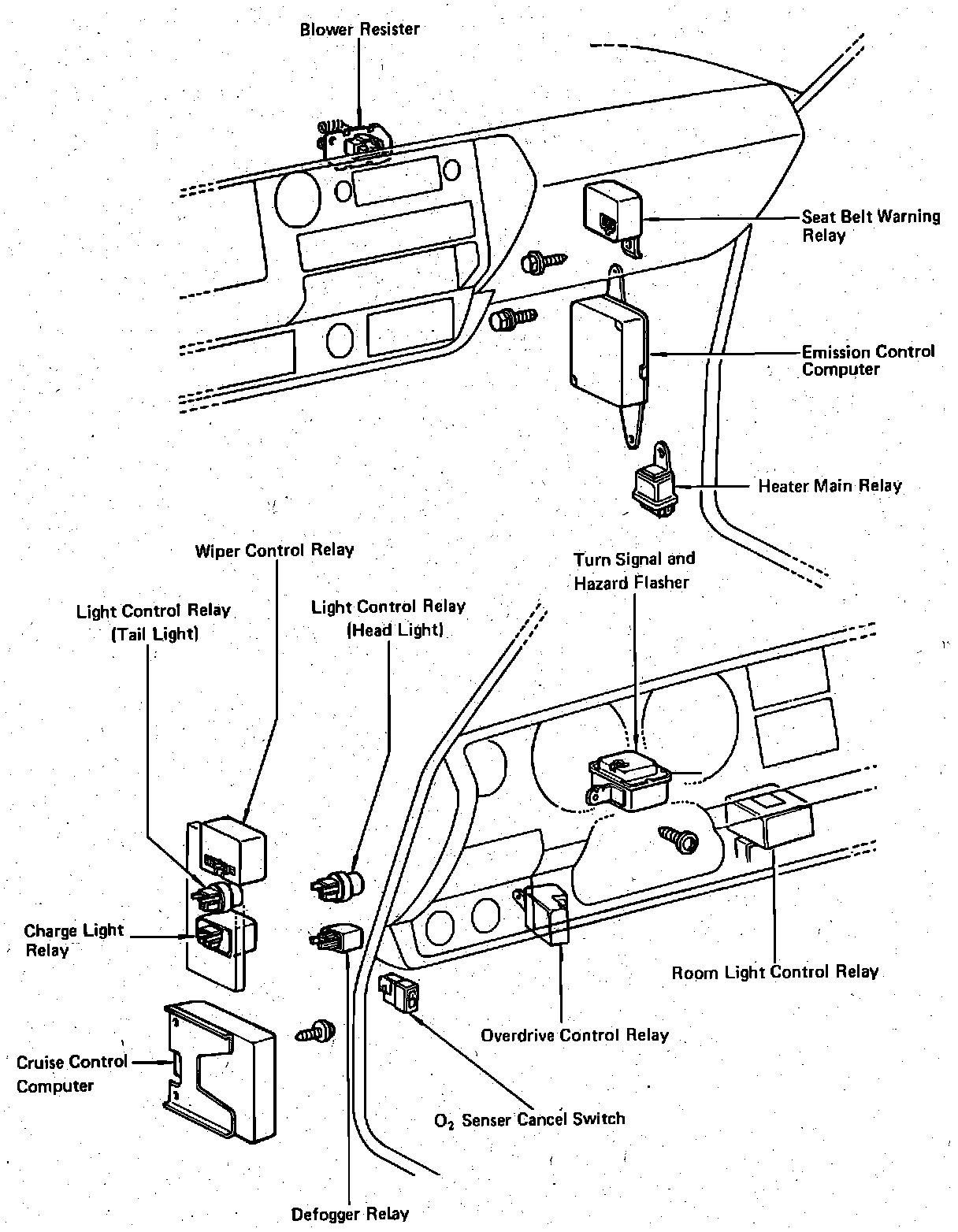

I/P Relay Locations.:




Behind LH Side Kick Panel

Applicable to: 1981-82 Models
