Control Module HVAC: Locations

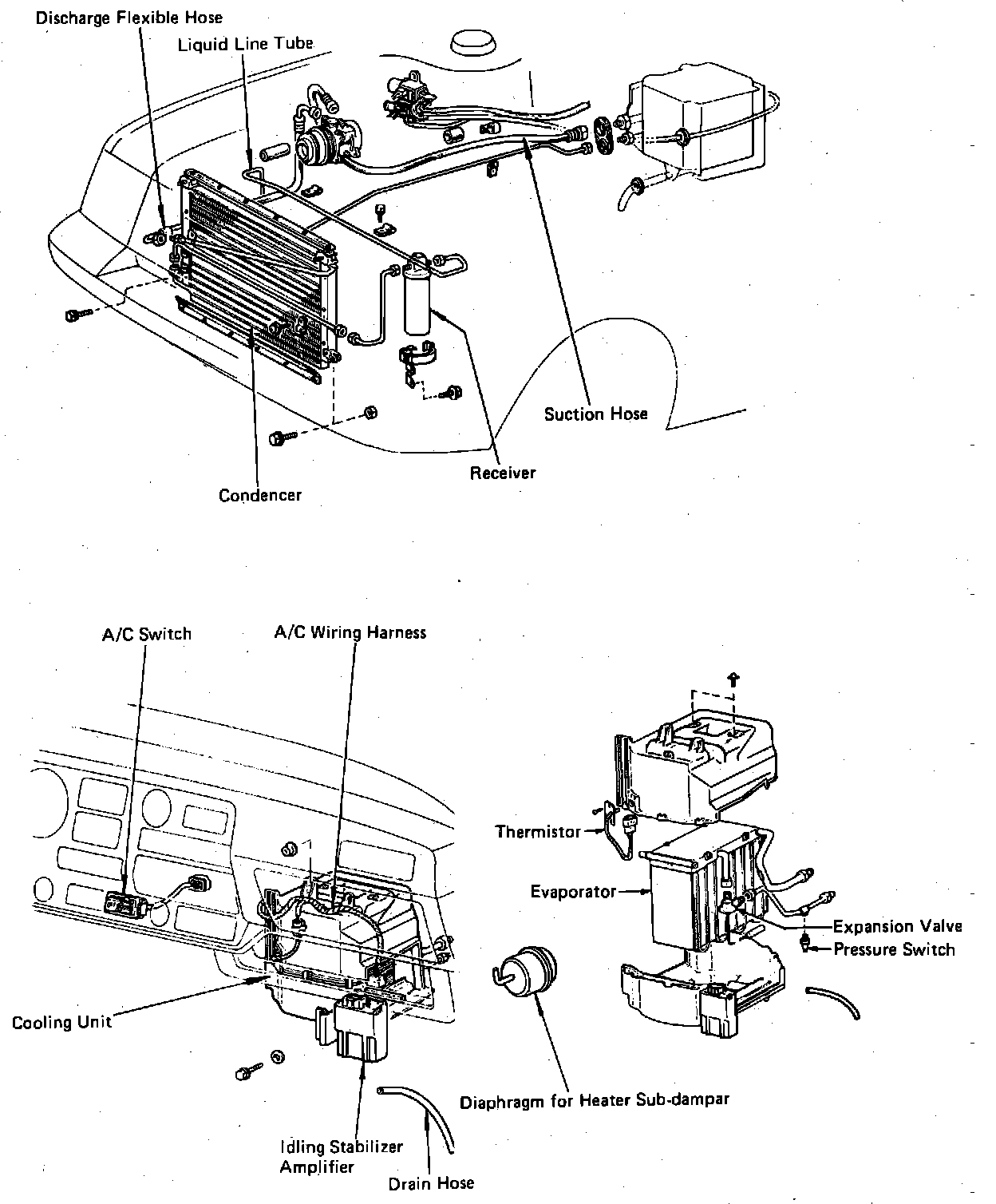

A/C System Component Locations.:




Attached to Cooling Unit

Applicable to: 1981-82 Models
