Mixture Control Solenoid: Locations

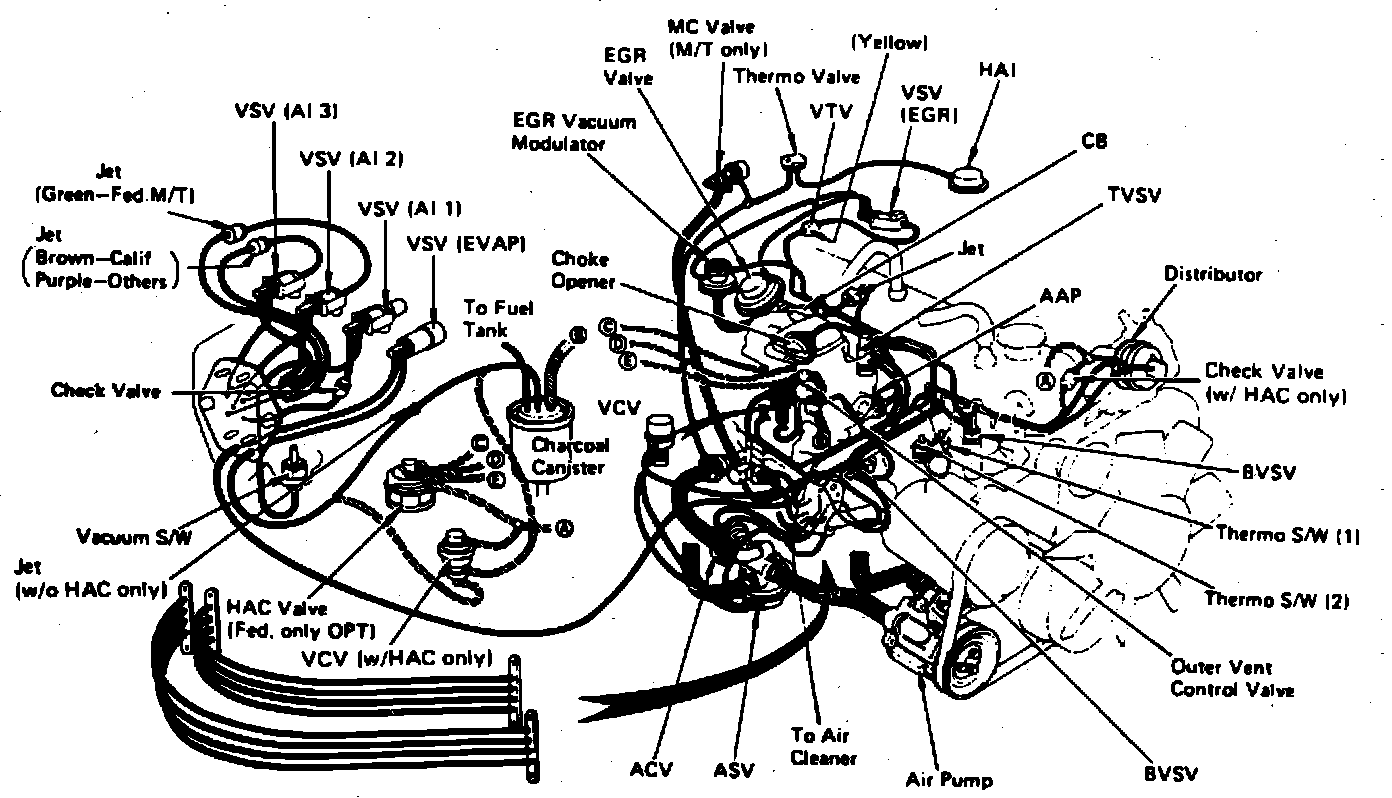

Emission Component Locations.:

RH Side Of Engine

Applicable to: 1981-82 Models w/22R-E Engine

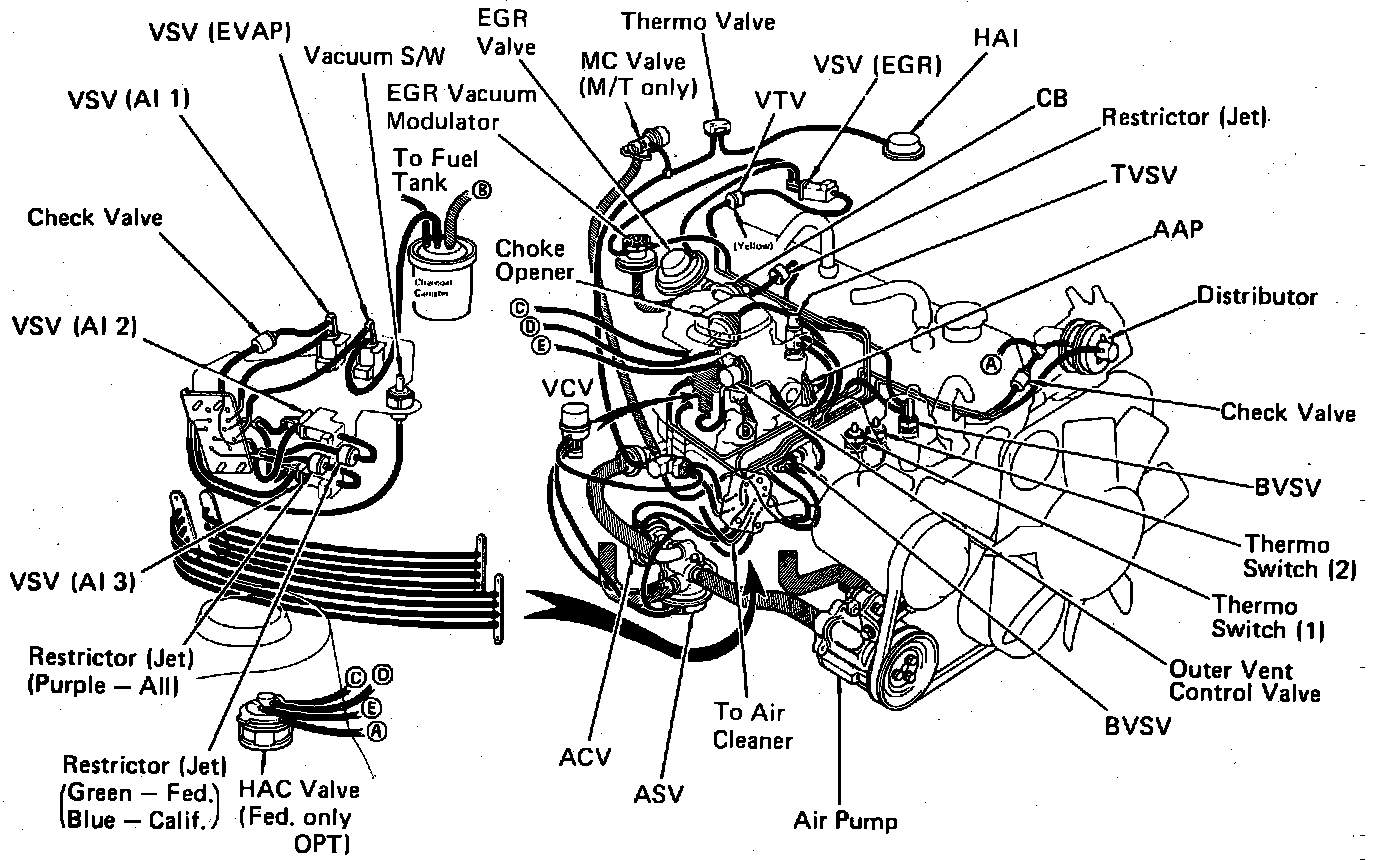

Emission Component Locations.:

RH Side Of Engine

Applicable to: 1982 Models w/22R Engine
