D/F Technical Data

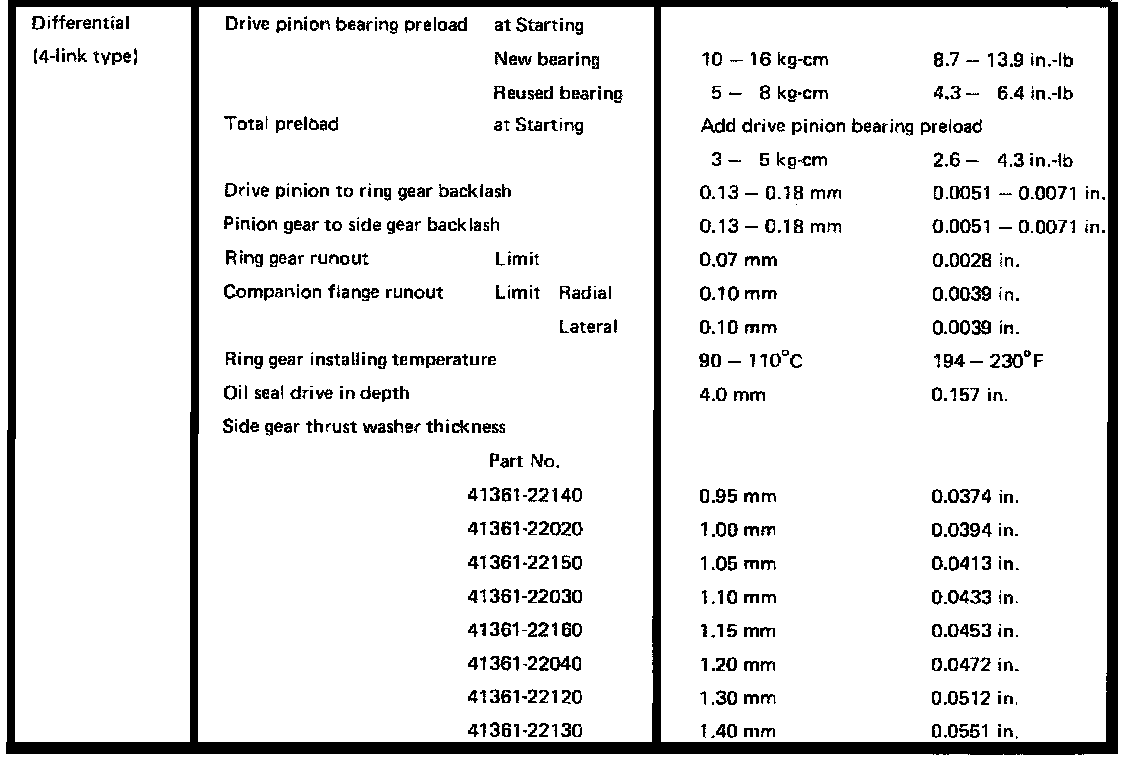

Rear Wheel Drive Differential, 4-Link Suspension:

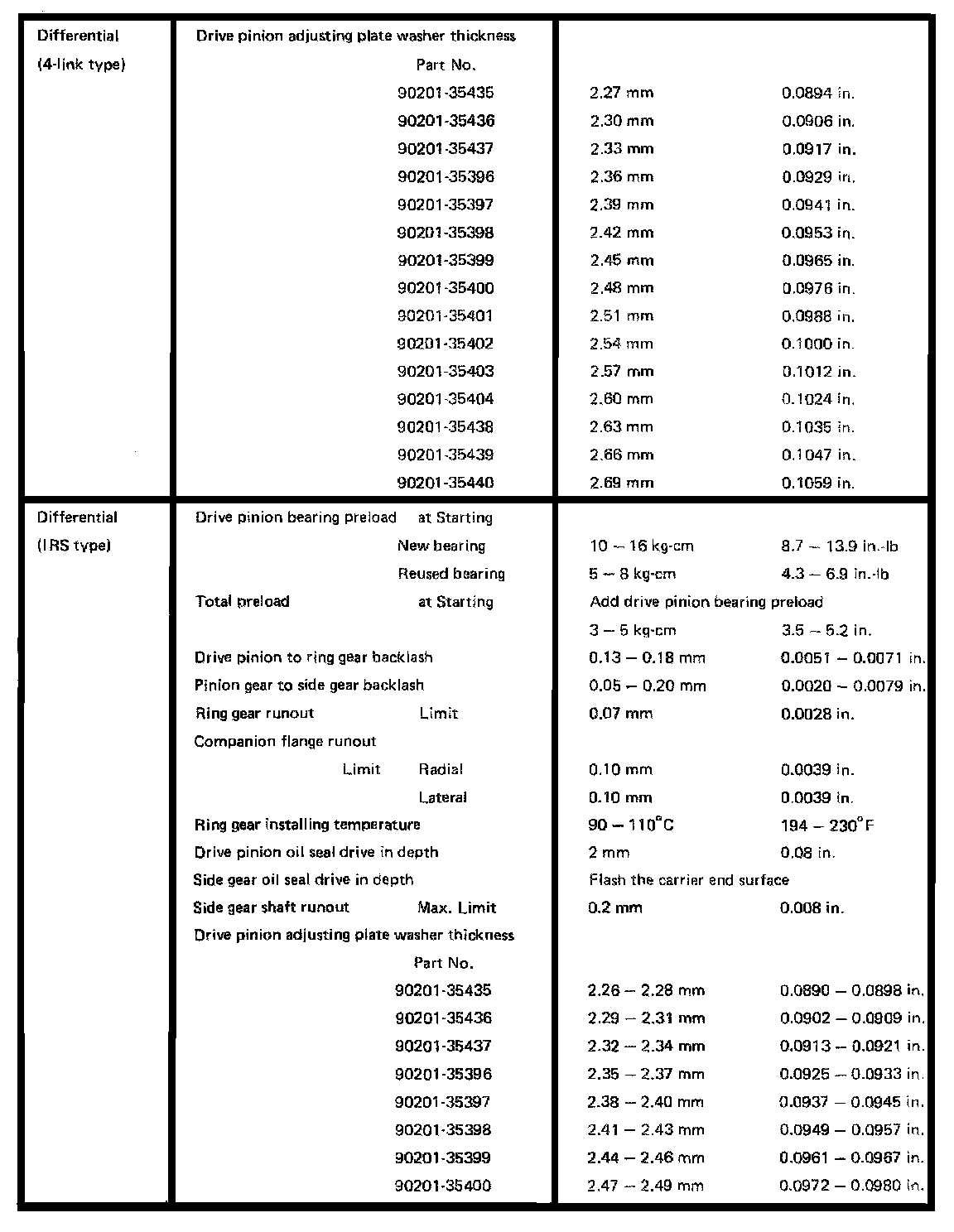

Rear Wheel Drive Differential, 4-Link/Independent Rear Suspension (IRS):

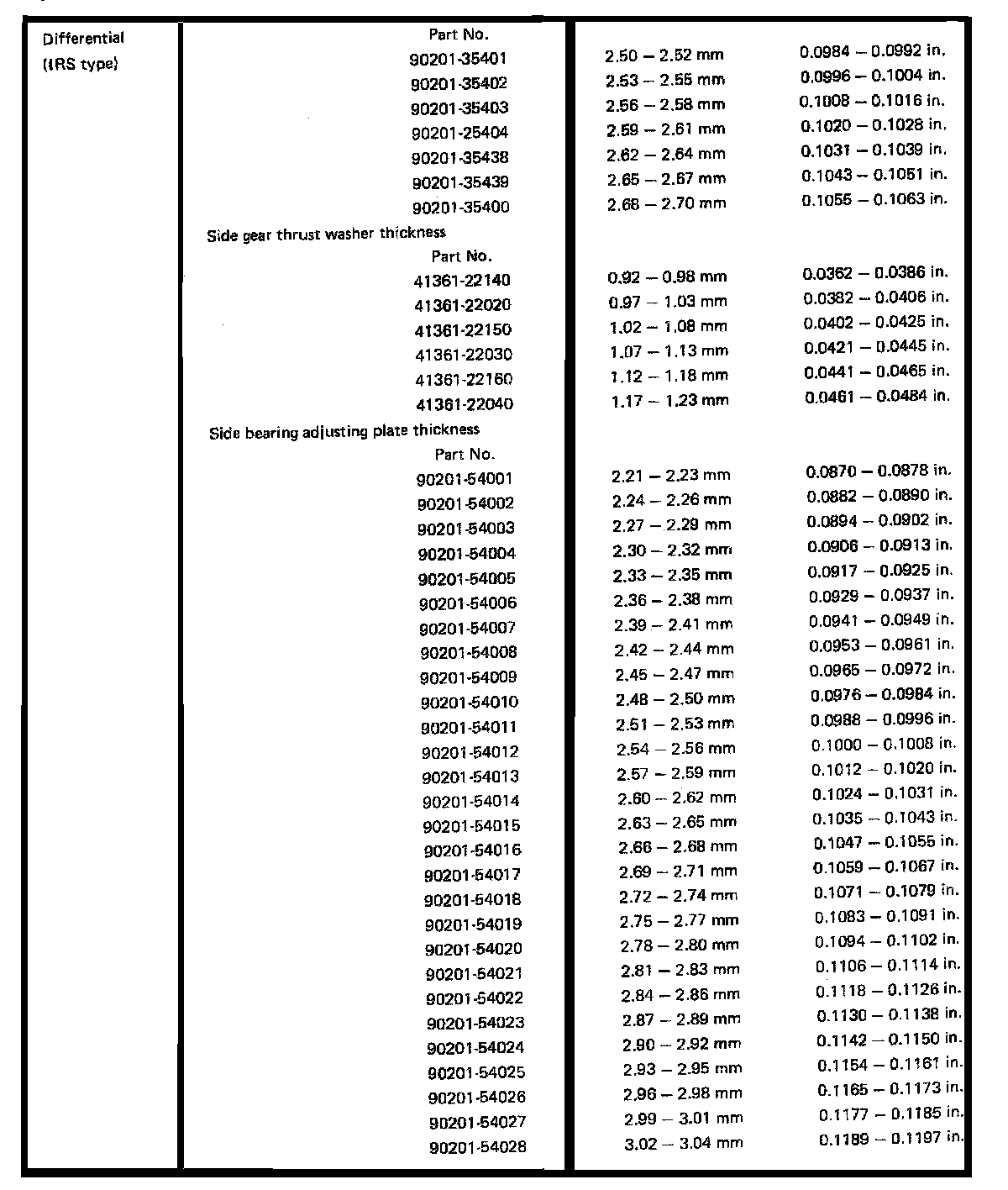

Rear Wheel Drive, Independent Rear Suspension:
