Home >> Toyota >> 1982 >> Corolla RWD L4-1770cc 1.8L (3TC) >> Repair and Diagnosis >> Power and Ground Distribution >> Diagrams

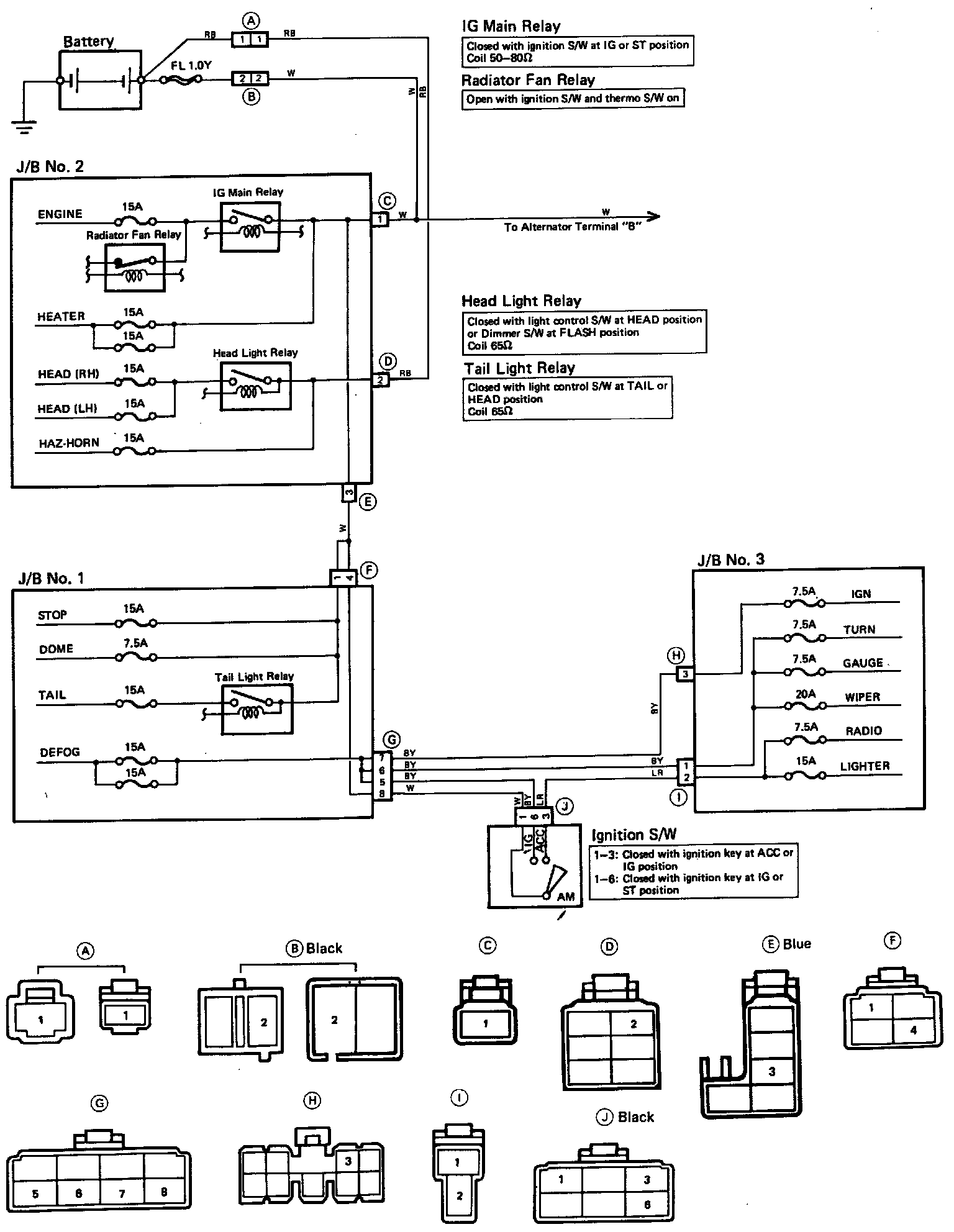

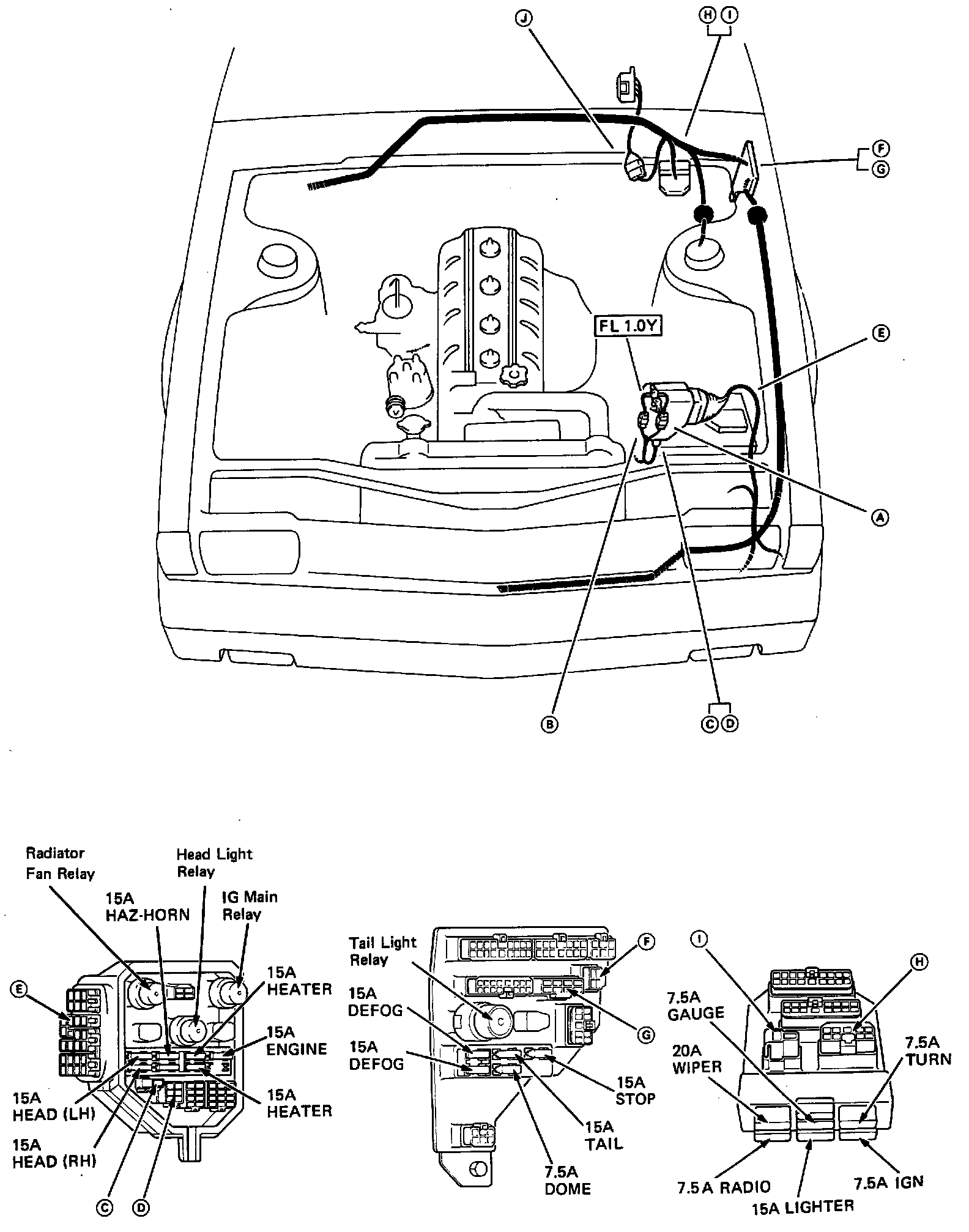

Power and Ground Distribution: Diagrams
