D/F Technical Data

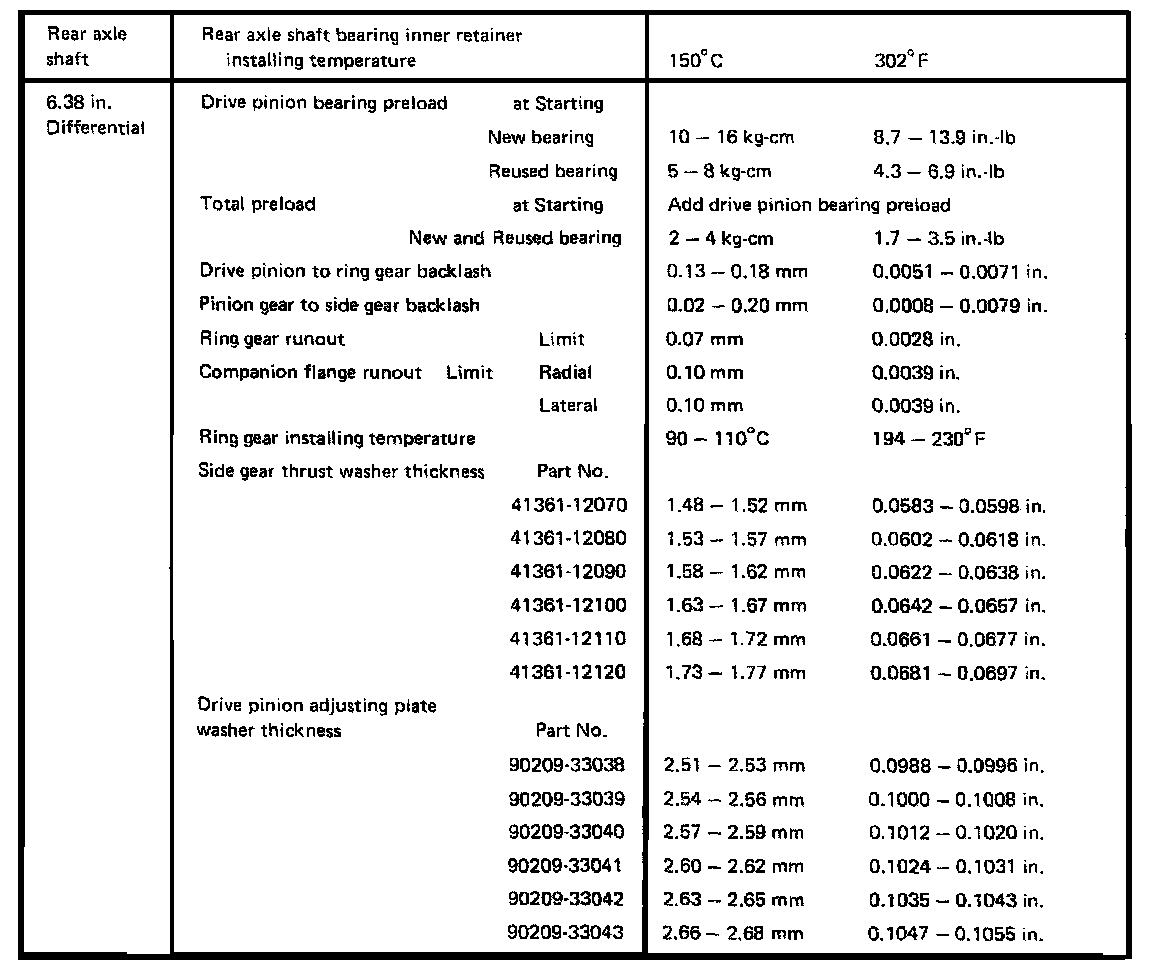

6.38 Inch Differential, Gear Backlash/Drive Pinion:

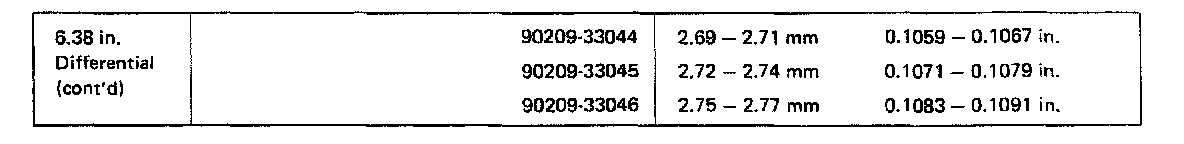

6.38 Inch Differential, Drive Pinion Thickness:
