Home
>>
Toyota
>>
1982
>>
Corolla RWD L4-1770cc 1.8L (3TC)
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Starting System
>>
Ignition Switch
>>
Diagrams

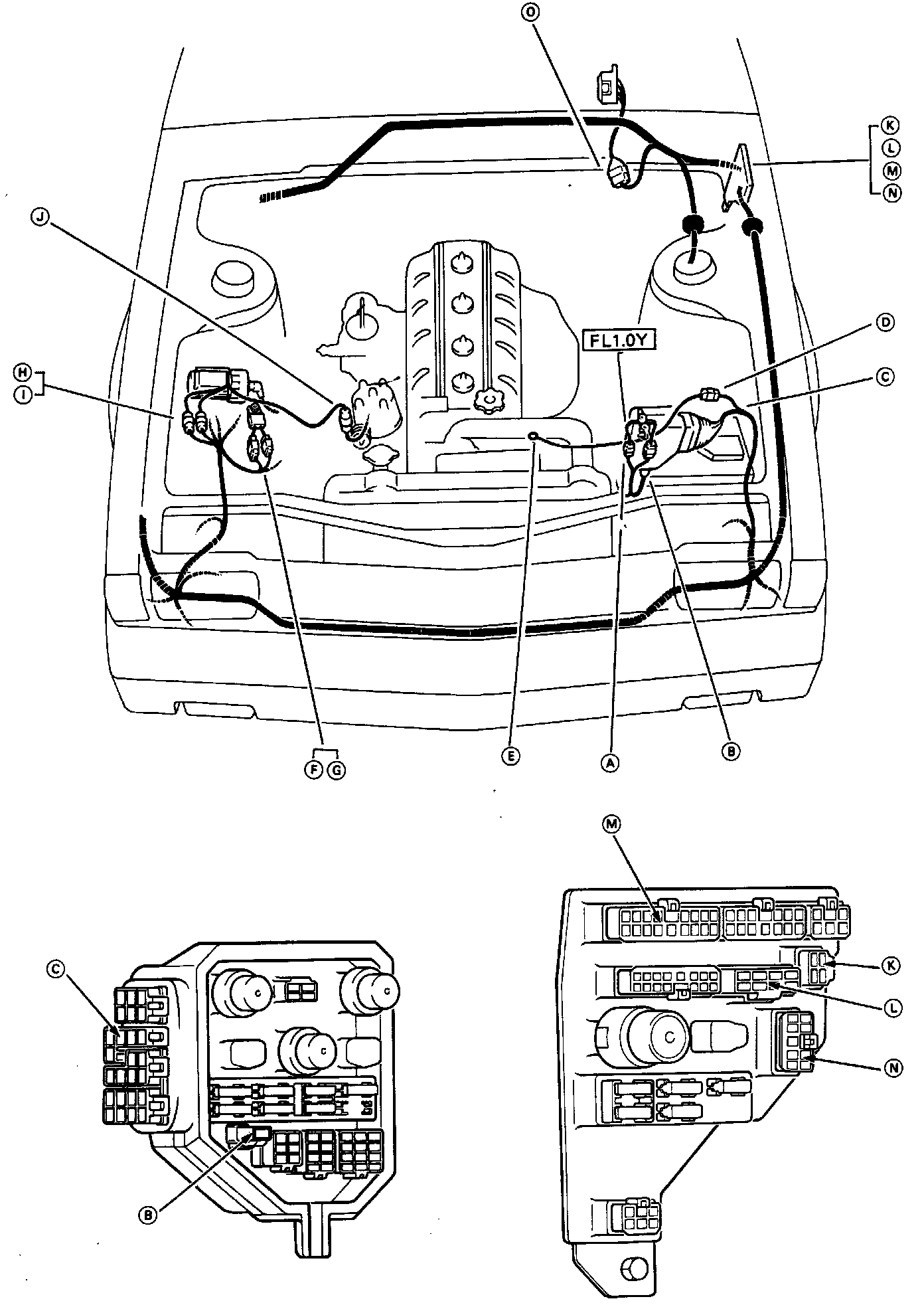

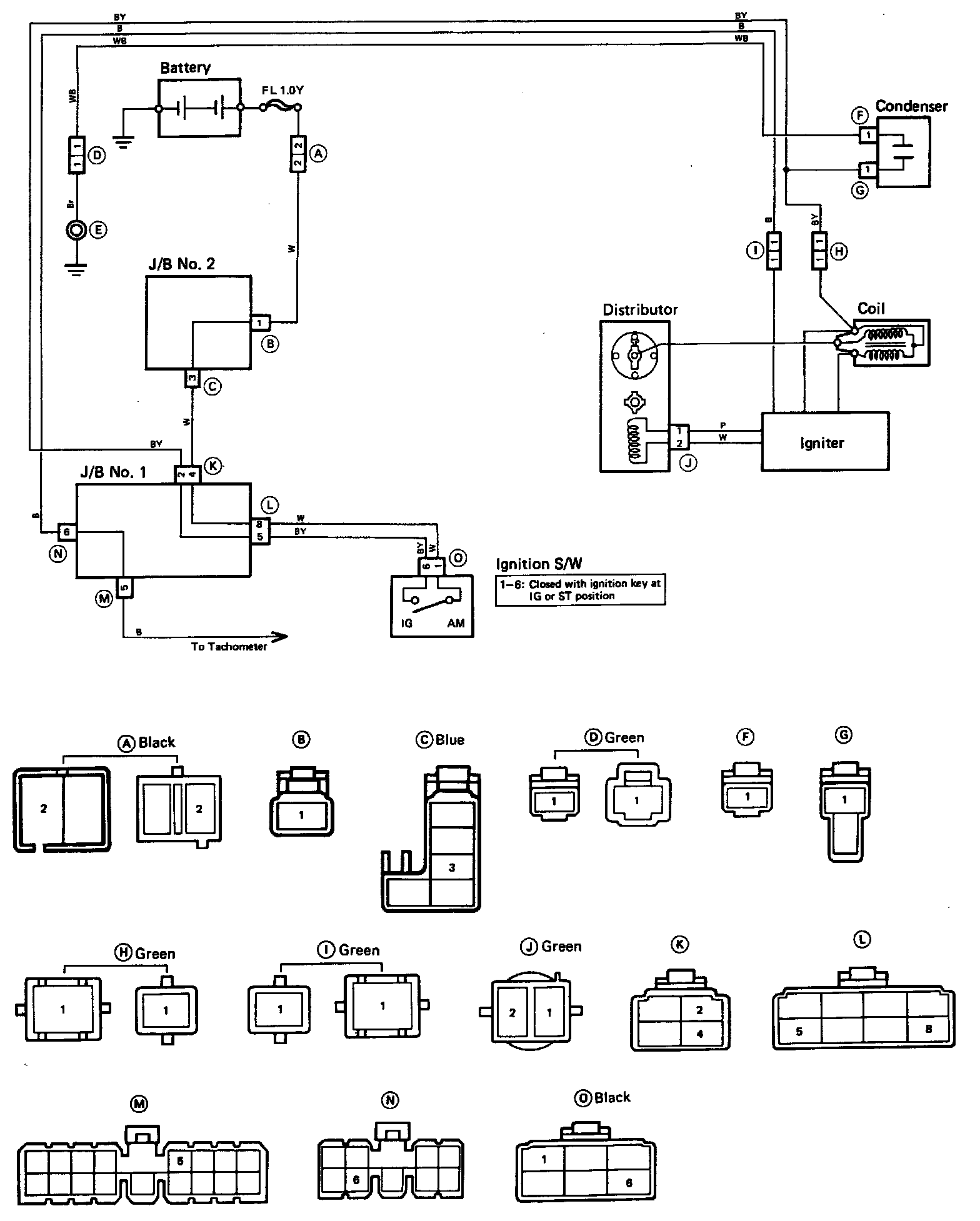

Ignition Switch: Diagrams
