Steering - Relay Rod Reduces Toe-In Variation

REFERENCE FRONT AND REAR SUSPENSION
NUMBER 012/TS149
DATE 8-20-82
MODEL MX62

Steering Relay Rod:

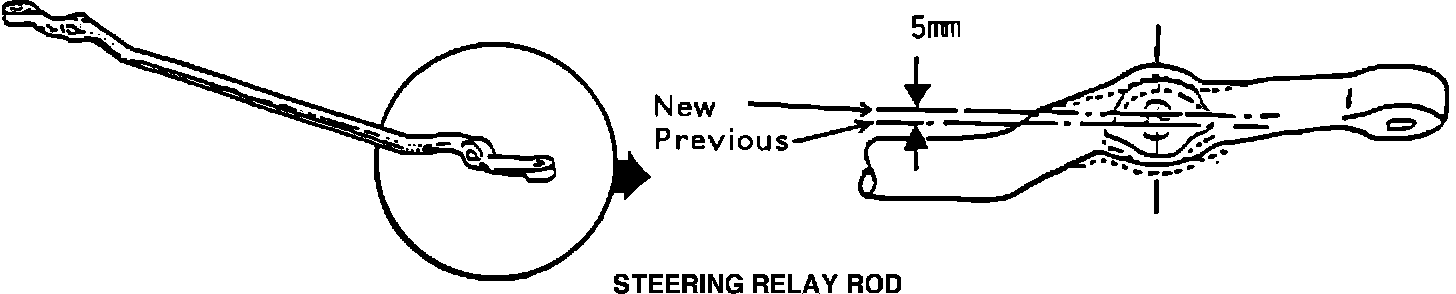

The steering relay rod has been modified as shown below, to reduce toe change and subsequent tire wear.
PRODUCTION EFFECTIVE:

From Frame Number Production Date

JT2MX62**C**058064 April, 1982


PART NUMBER INFORMATION:

Previous Part Number New Part Number Part Name

45451-22090 45451-22100 Steering Relay Rod


NOTE: The new part is interchangeable with the previous part.
PRODUCTION EFFECTIVE:

From Engine Number Production Date

4K-1445787 May, 1982


PART NUMBER INFORMATION

Previous Part Number New Part Number Part Name

90311-38013 90311-38022 Seal, Oil
(For Timing Gear Cover)
90311-70001 90311-70004 Seal, Oil
(For Engine Rear)

NOTE: The new Parts are interchangeable with the previous parts.
