Emission Control Systems: Diagrams

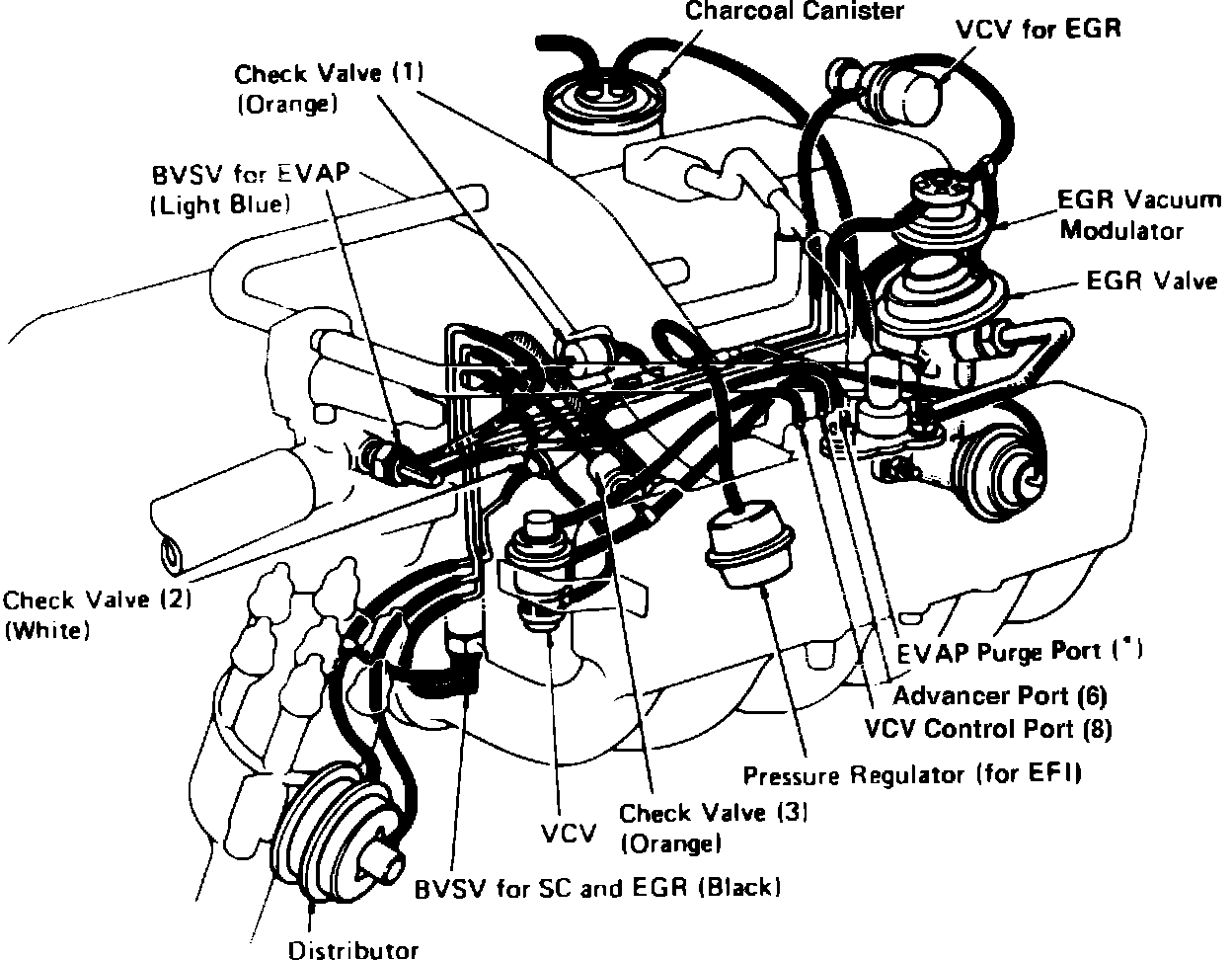

Fig. 8 Emission control system & engine compartment reference diagram.:
