Home >> Toyota >> 1982 >> Cressida L6-2759cc 5M Ser >> Repair and Diagnosis >> Powertrain Management >> Tune-up and Engine Performance Checks >> Distributor >> Distributor Vacuum Control >> Locations

Distributor Vacuum Control: Locations

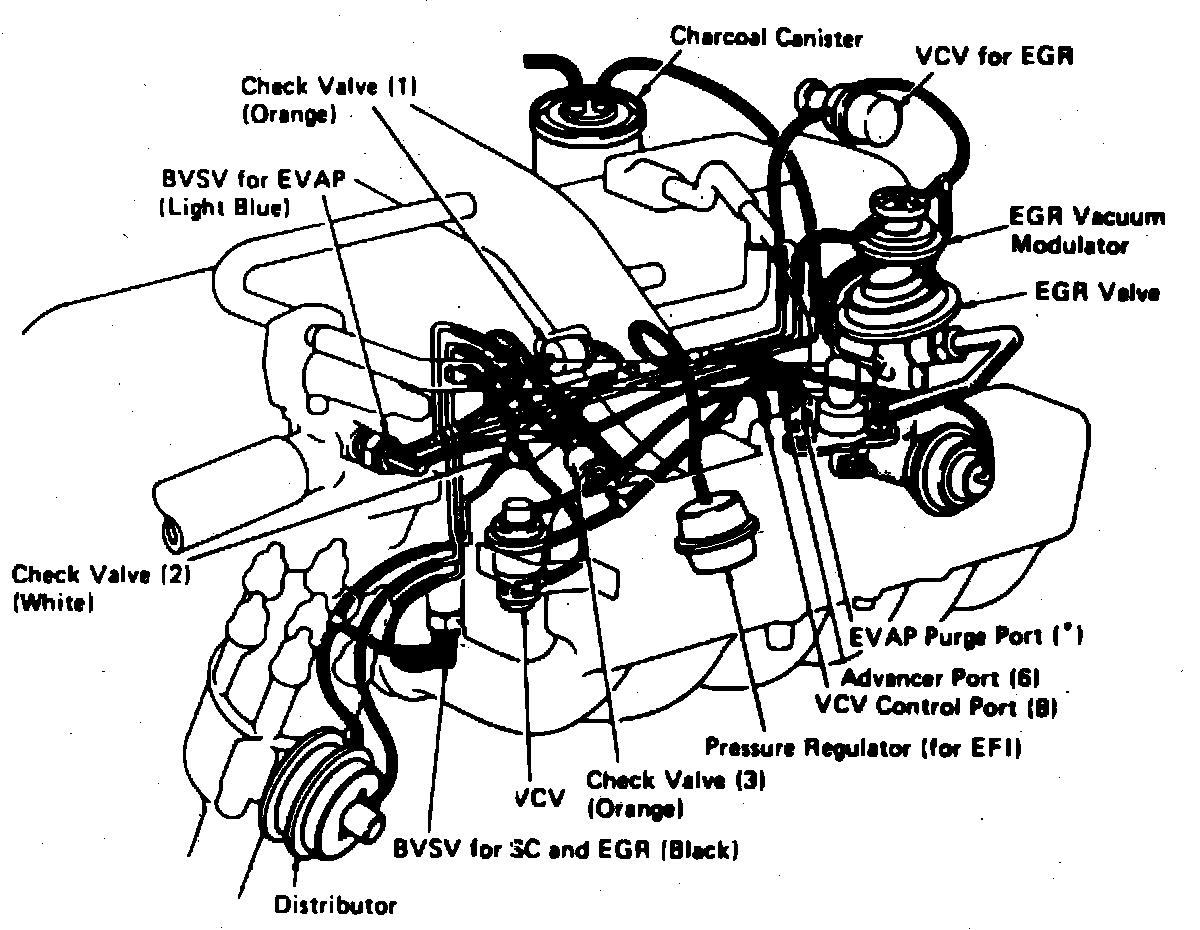

Emission Control System Components.:




Top LH Side Of Engine

Applicable to: 1982 Models w/5M-E Engine
