Installation

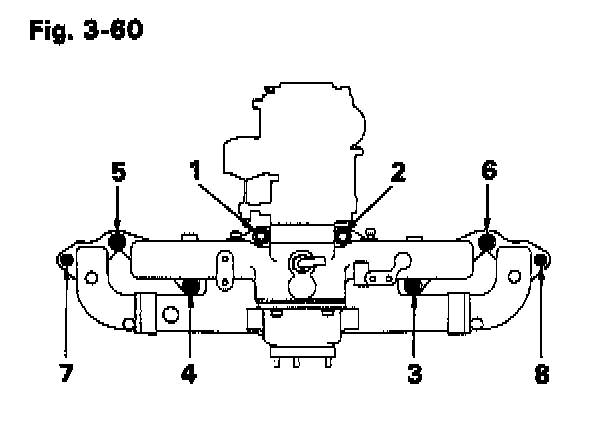

Intake/Exhaust Manifold Tightening Sequence/Torque:

Tighten each manifold bolt and nut a little at a time to the specified torque in the sequence shown in the figure.

Tightening torque: 3.9 - 6.1 kg-m (29 - 36 ft-lb)
