A/C - Lever Type Heater Controls Parts Availability
88toyota14
HEATING & AIR
REFERENCE:
CONDITIONING
NUMBER:
001
DATE:
12-23-88
MODEL:
EL31, SV2#, FJ6#, RN5#, 6#, 7#, VZN61, VZN66
TITLE

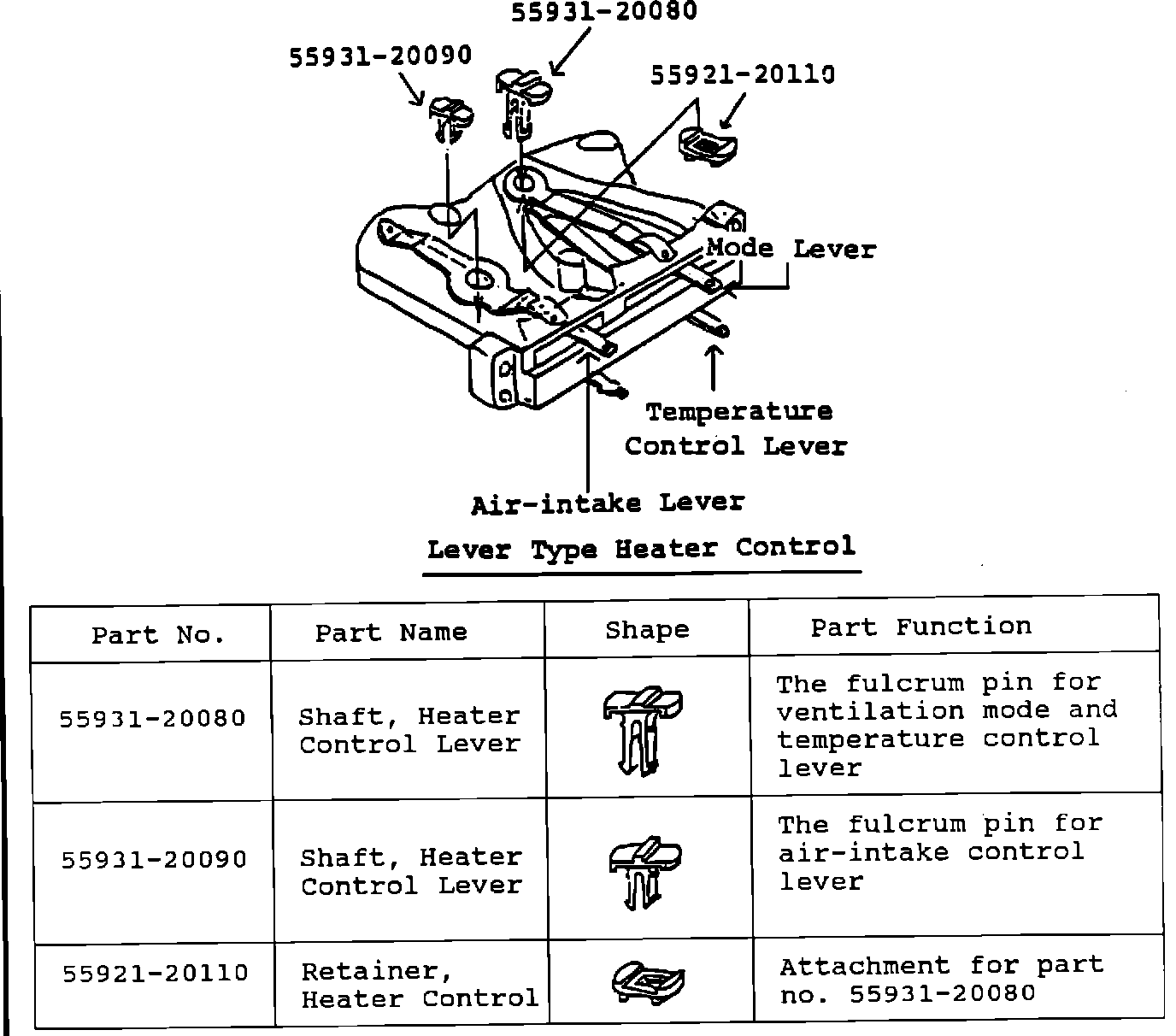

LEVER TYPE HEATER CONTROLS
To facilitate repairs of lever type heater controls, parts have been made available to allow the repair of heater control assemblies.
