Operation CHARM: Car repair manuals for everyone.
Home >> Toyota >> 1982 >> Pickup 2WD L4-2188cc L,DSL >> Repair and Diagnosis >> Power and Ground Distribution >> Diagrams

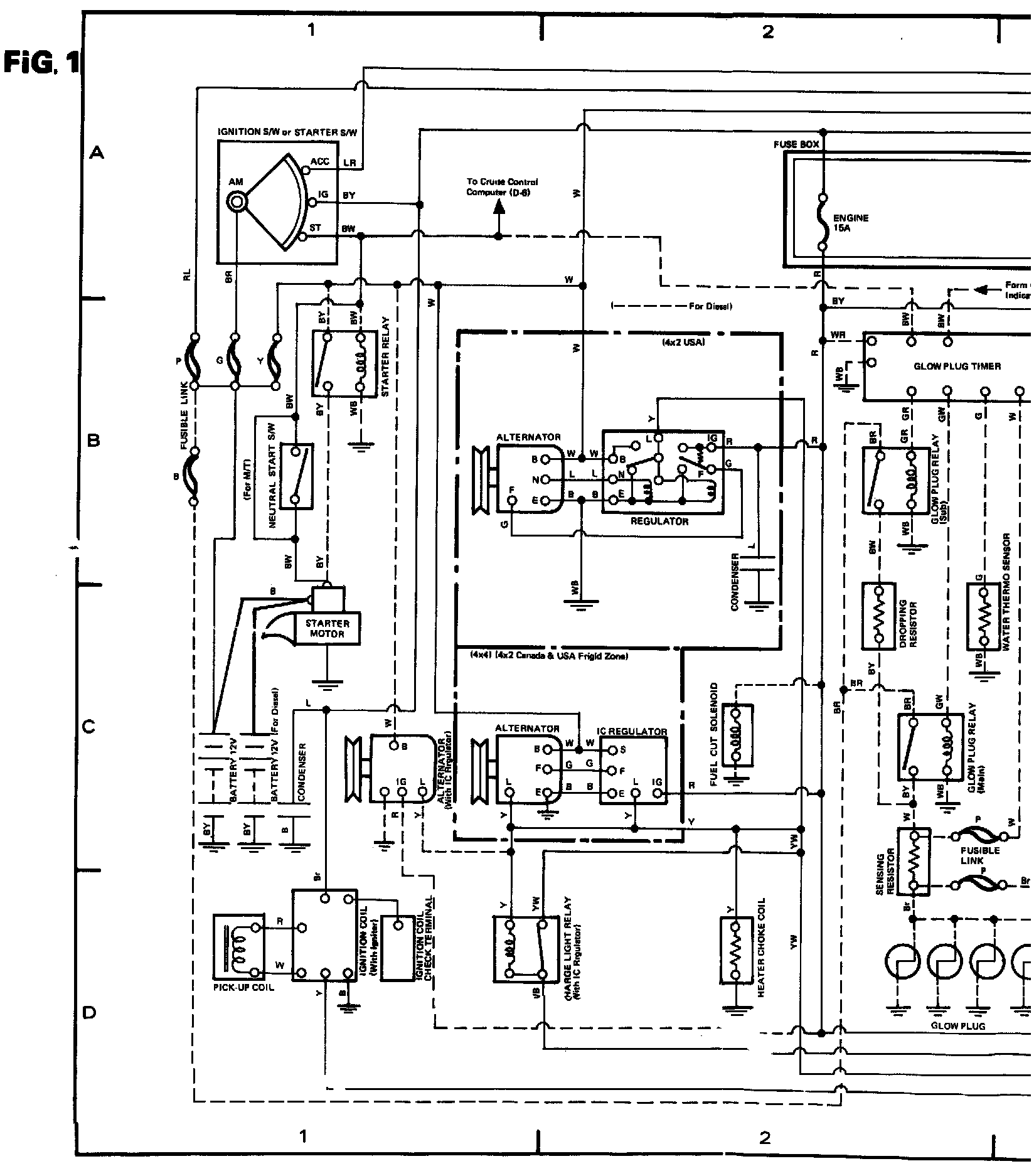

Power and Ground Distribution: Diagrams

F��l,���:
