Section A:Valve Body

Item 1: (A40D only) The valve body parts listed below have been modified to:

^ permit 3-4 upshift at wide open throttle
^ eliminate delayed engagement of N-R shift when hot
^ permit factory adjustment of line pressure (see details)

1 - Valve, 1-2 Shift
2 - Gasket, Upper Valve Body
3 - Plate, Separator
4 - Gasket, Lower Valve Body
5 - Body, Lower Valve
6 - Valve, Low Coast Shift
7 - Gasket, Valve Body Cover, Upper
8 - Plate, Valve Body Cover
9 - Gasket, Valve Body Lower
10 - Cover, Lower Valve Body
11 - Retainer, Primary Regulator Valve
12 - Sleeve, Primary Regulator Valve
13 - Spring, Compression

Adjustable Line Pressure Sleeve:

An adjustable line pressure sleeve has been added which permit's fine tuning of line pressure by the factory during assembly. Note the following precautions when disassembling and assembling the adjustable sleeve.

1. Check pre-set position of sleeve and retainer when disassembling (A, B, or C). Reassemble in the same position.

2. When replacing the sleeve with new parts, assemble in position B.

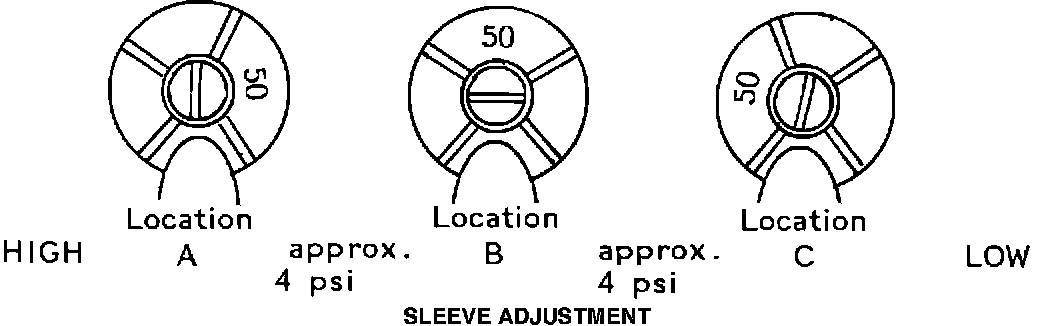

Sleeve Adjustment:

3. Adjustment procedure.

a) Turn sleeve with a screwdriver for adjustment as indicated below.

Item 2: (All A40 series) The 1-2 shift valve has been made in 2 pieces to eliminate sticking when cold.

PRODUCTION EFFECTIVE:

Item Transmission Number

* 2 piece 1-2 Shift Valve A40 from 1GA-47387 (July 81)
A40D 1KB-09326 (Oct. 81)
A43D 1KF-06762 (Oct. 81)
(except 1KF 50001-50986)
A43DL 1KH-00661 (Oct. 81)
** All other components Shown from 1HB-03287 (Aug. 1981)

* 1-2 Shift Valve is interchangeable. ** Interchangeable as a set only.

PART NUMBER INFORMATION:

RT/RA
Previous P/N New P/N Part Name

35420-20010 35420-20011 Lower valve body assy
35475-30010 35475-14020 Cover, lower valve body
35437-30010 35437-30011 Plate, valve body cover
35435-30010 35435-14020 Gasket, valve body cover upper
35436-30020 35436-14020 Gasket, valve body cover lower
35417-22020 35417-22040 Sleeve, primary regulator valve
35425-22010 35425-14010 Retainer, primary regulator valve
90501-16682 90501-18039 Spring, primary regulator valve
35433-30030 35433-14020 Gasket, upper valve body
35434-30030 35434-14020 Gasket, lower valve body
35454-22010 35454-30010 Valve, low coast shift
35432-20020 35432-14050 Plate, separator
35464-22010 35464-22020 Valve, 1-2 shift, upper
35463-22010 Valve, 1-2 shift, lower
04352-14022 04352-14023 Overhaul Kit
04351-22031 04351-22032 Gasket Kit

TE
Previous P/N New P/N Part Name

35420-22100 35420-22101 Lower, valve body assy
35475-30010 35475-14020 Cover, lower valve body
35437-30010 35437-30011 Plate, valve body cover
35435-30010 35435-14020 Gasket, valve body cover upper
35436-30020 35436-14020 Gasket, valve body cover lower
35417-22020 35417-22040 Sleeve, primary regulator valve
35425-22010 35425-14010 Retainer, primary regulator valve
90501-16682 90501-18039 Spring, primary regulator valve
35433-30030 35433-14020 Gasket, upper valve body
35434-30030 35434-14020 Gasket, lower valve body
35454-22010 35454-30010 Valve, low coast shift
35432-14010 35432-14011 Plate, separator
35464-22010 35464-22020 Valve, 1-2 shift, upper
35463-22010 Valve, 1-2 shift, lower
04352-14022 04352-14023 Overhaul Kit
04351-22032 Gasket Kit
