Condenser Fan Motor Relay: Testing and Inspection

Fig. 4 Condenser Fan Motor Connector And Fusible Link Identification.:

1. Remove cover from relay box and remove relay, Fig. 4.

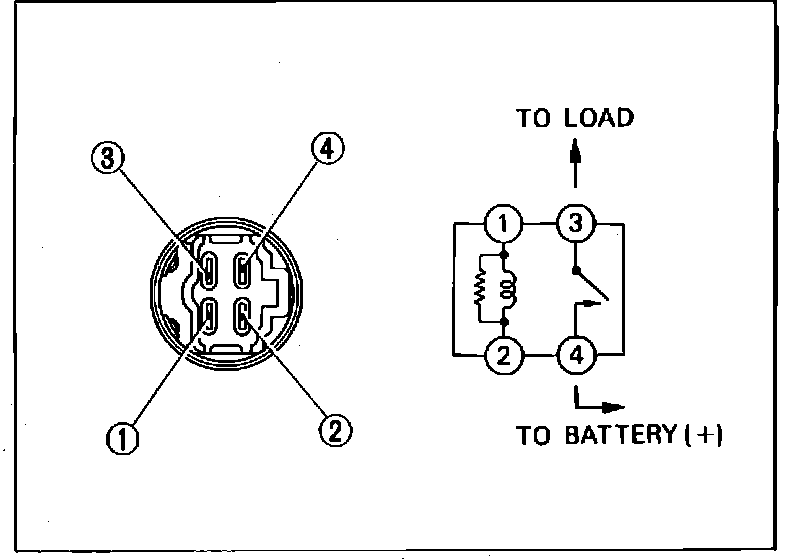

Fig. 5 Condenser Fan Relay Terminal Identification.:

2. Check continuity between terminals 3 and 4, Fig. 5. No continuity should be present. Apply 12V battery voltage across terminals 1 and 2. Continuity should be present at terminals 3 and 4. Replace relay if defective.
