Control Assembly: Testing and Inspection

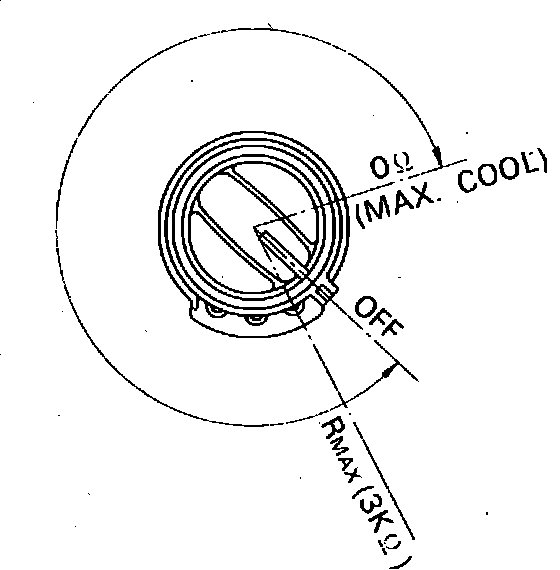

Fig. 15 Thermo-Switch Resistance Specifications.:

1. Disconnect battery ground cable and remove under tray and glove box.
2. Remove connector from thermo-switch resistor and measure resistance of resistor. Resistance should be within specifications shown in Fig. 15. Replace resistor if defective.
