W/O High Altitude

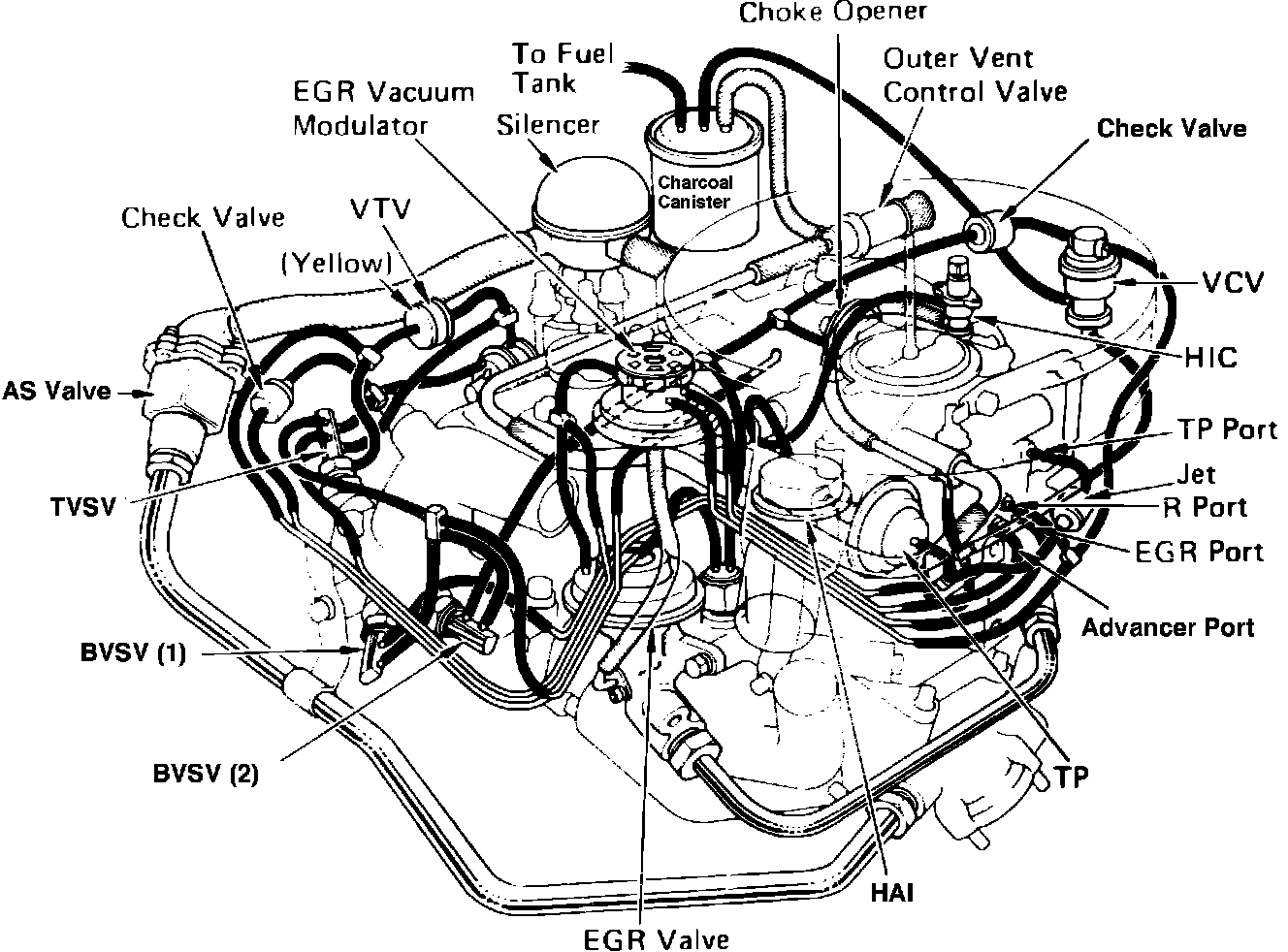

Fig. 6 Emission control system & engine compartment reference diagram.Less high altitude compensation system:
