Blower Motor Resistor: Testing and Inspection

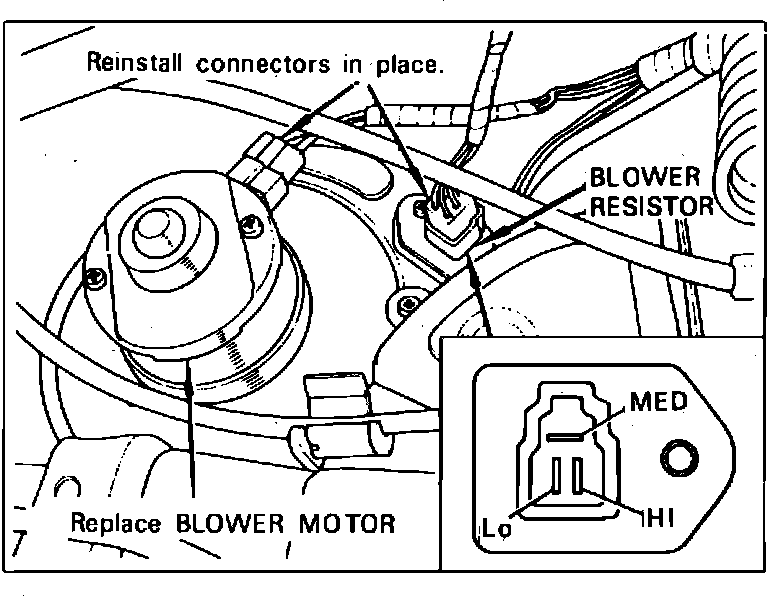

Fig. 1 Blower Motor Resistor Terminal Identification.:
1.
Disconnect battery ground cable and remove glove box.
2.
Remove three-pole connector from blower resistor,
Fig. 1. 3.
Measure resistance of blower resistor. Resistance should be .5 ohm between MED and HI and 1.1 ohms between MED and LO. Replace resistor if defective.
