Condenser Fan Motor Relay: Testing and Inspection

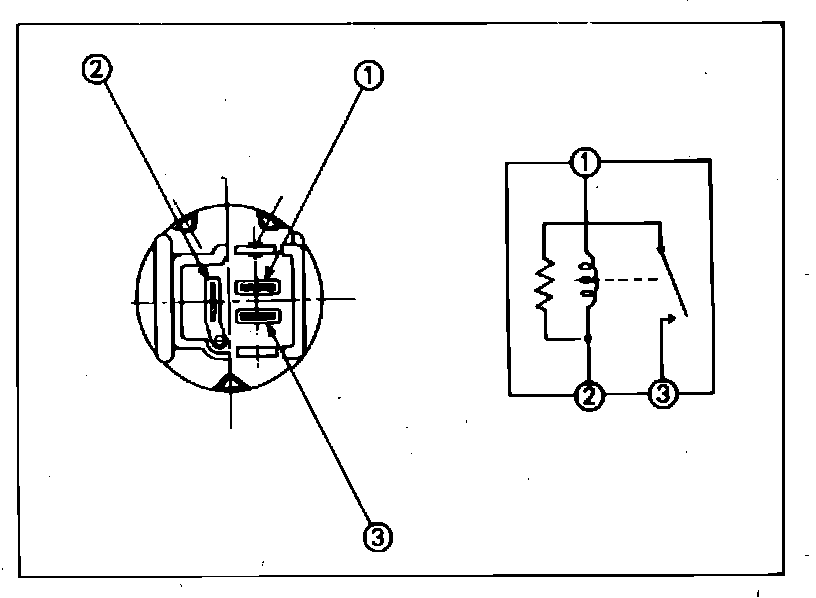

Fig. 7 Condenser Fan Relay Terminal Location.:
1.
Remove cover from
relay box and remove relay.
2.
Check continuity between terminals 1 and 3,
Fig. 7. No continuity should be present. Replace relay if defective.
