A/C - Compressor Oil Application And Quantity

REF.: HEATING & AIR CONDITIONING

NO.: AC93-005

DATE: OCTOBER 22, 1993

MODEL: ALL MODELS

A/C COMPRESSOR OIL APPLICATIONS

Care must be taken to use only refrigerant oil which is compatible to the vehicle's system. Following are A/C oil application charts for both R-12 and HFC-134a systems:

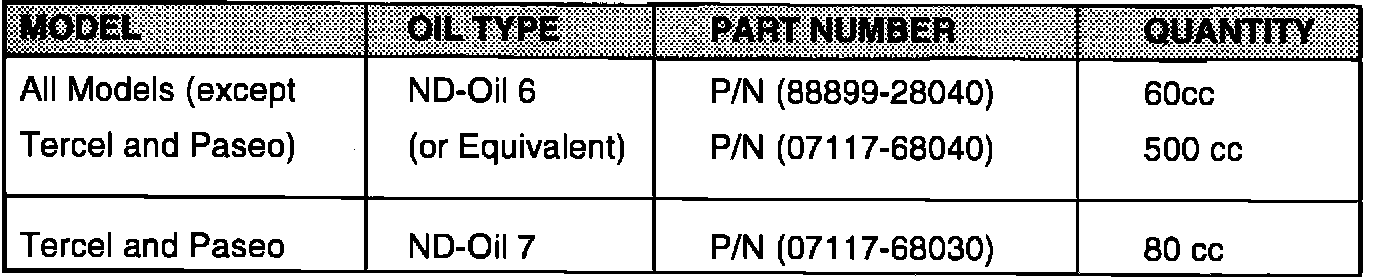

R-12 SYSTEMS

NOTE:

Use only the recommended oil for Tercel/Paseo thru-vane type compressors in order to prevent the possibility of compressor failure.

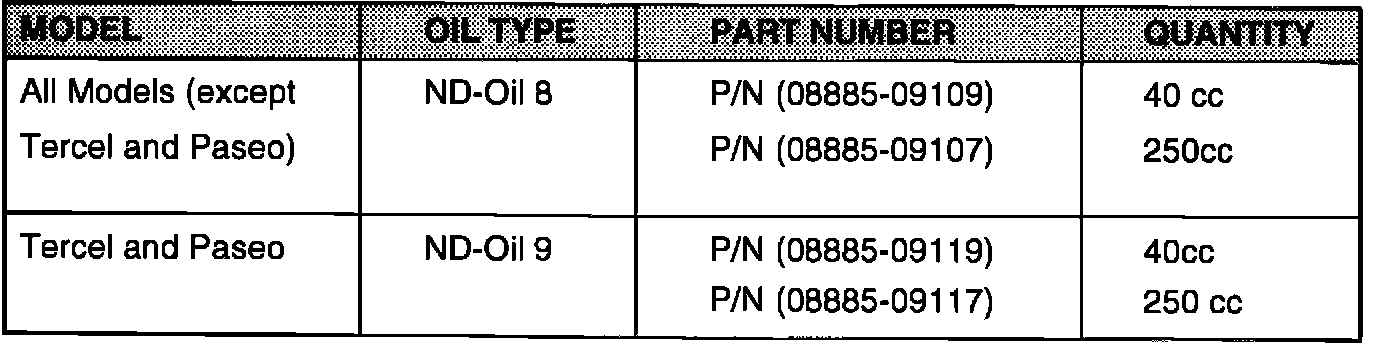

HFC-134A SYSTEMS
