A/T - Fluid Interchangeability

TRANSMISSION & CLUTCH
TC003-99

Title:
AUTOMATIC TRANSMISSION FLUIDS

Models:
All Models

May 21, 1999

REVISION NOTICE:

The information contained in this TSB updates TC003-98 dated June 19, 1998.

Introduction

Automatic Transmission Fluid Type T-IV now replaces Type T-II fluid. Use Type T-IV for all applications that specify ATF Type T-II.

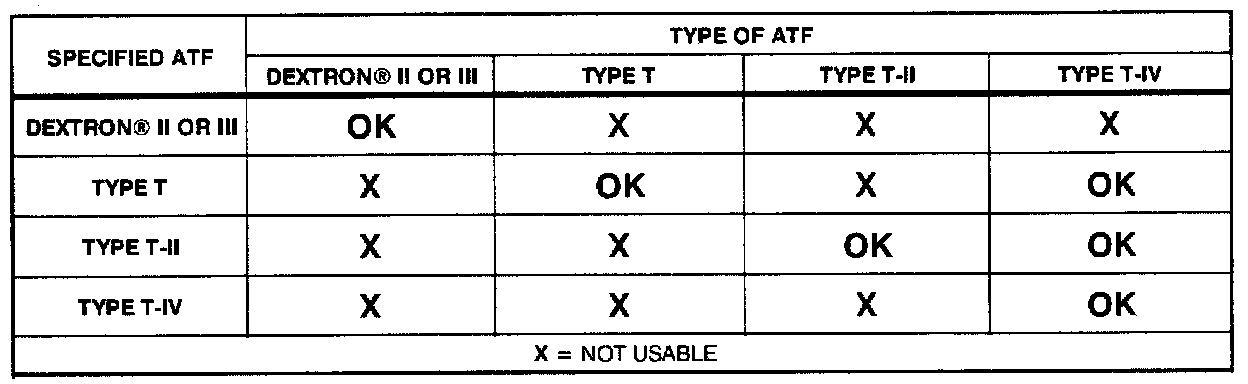

Please refer to the following table for the interchangeability between each ATF.

Affected Vehicles





^ All vehicles produced after 1993 with Automatic Transmissions specified to use ATF Type T, T-II and T-IV.

NOTICE:
With the exception of mixing ATF Type T with Type T-IV fluids, different types of fluids must not be mixed.

Parts Information

SIZE NEW PART NUMBER PART NAME

4 Liter 08886-01705 ATF Type T-IV

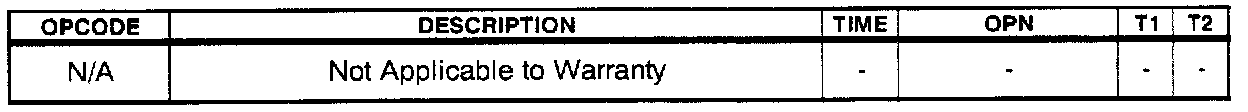

Warranty Information
