Heating and Air Conditioning: Locations

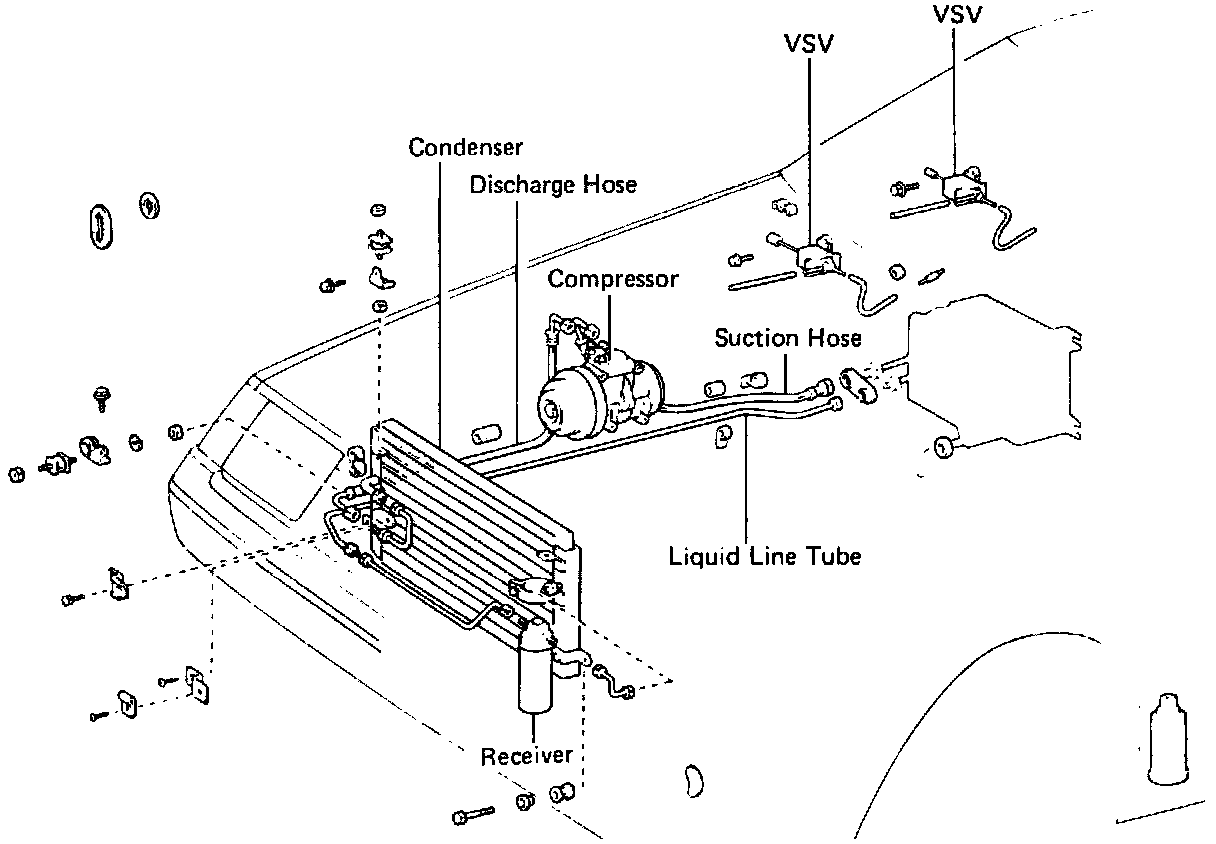

HVAC Underhood Component Layout:

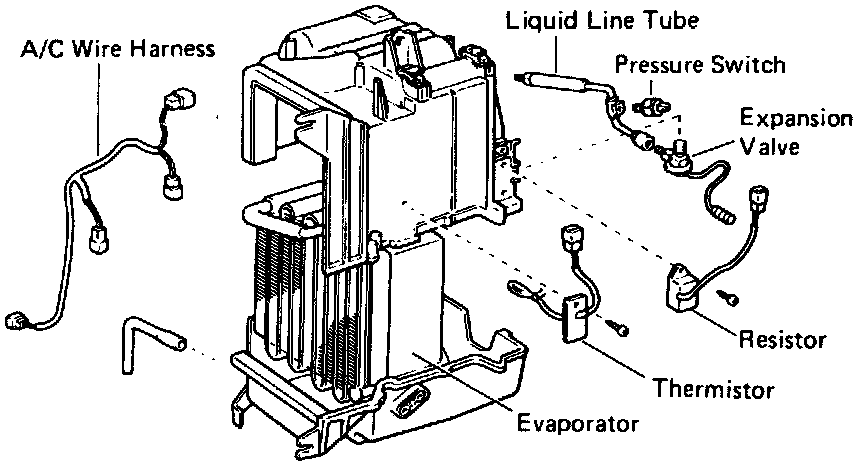

Evaporator Case Exploded View:

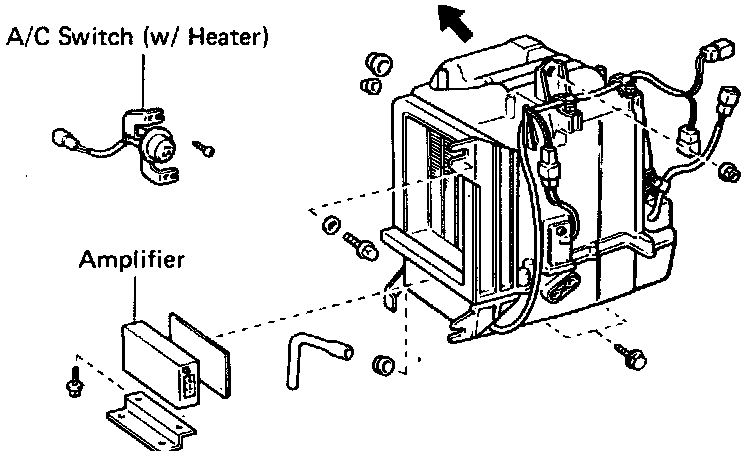

Evaporator Case And Amplifier:
