Mixture Control Solenoid: Locations

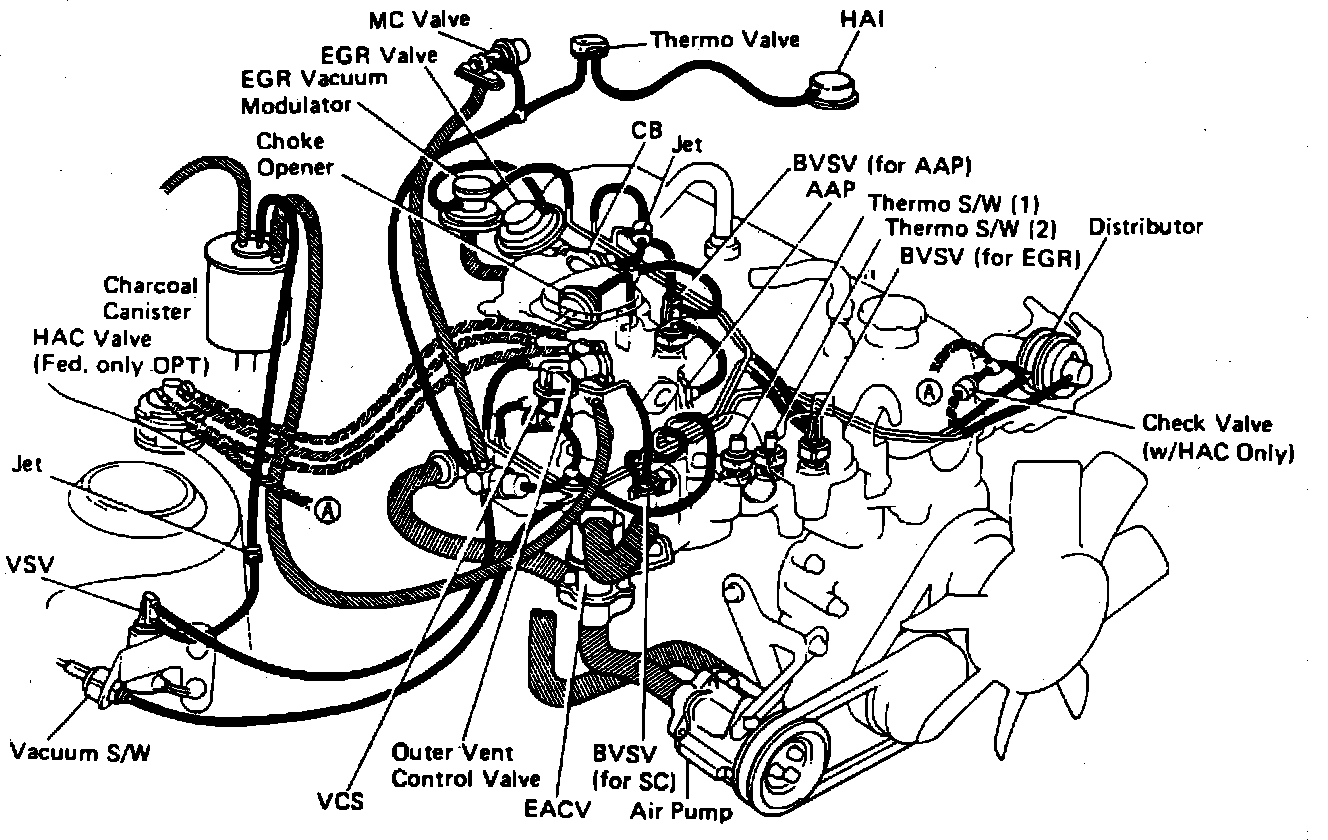

Emission Component Locations.:




RH Side Of Engine

Applicable to: 1983 Models w/22R Engine
