Main Relay (Computer/Fuel System): Locations

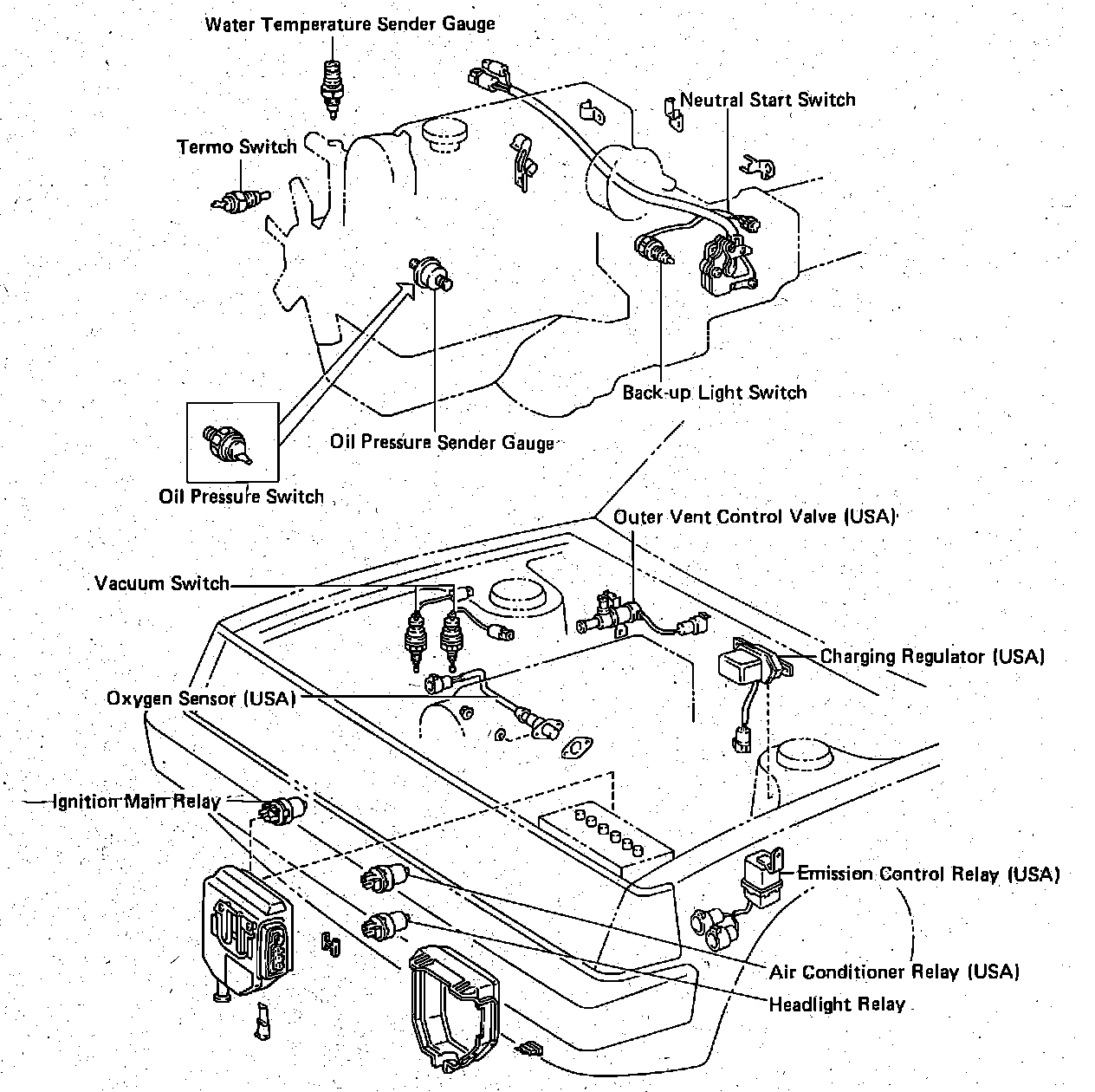

Engine Compartment Component Locations.:




Front Of Engine Compartment

Applicable to: 1983 Models
