Home >> Toyota >> 1983 >> Cressida L6-2759cc 5M Ser >> Repair and Diagnosis >> Powertrain Management >> Ignition System >> Diagrams

Ignition System: Diagrams

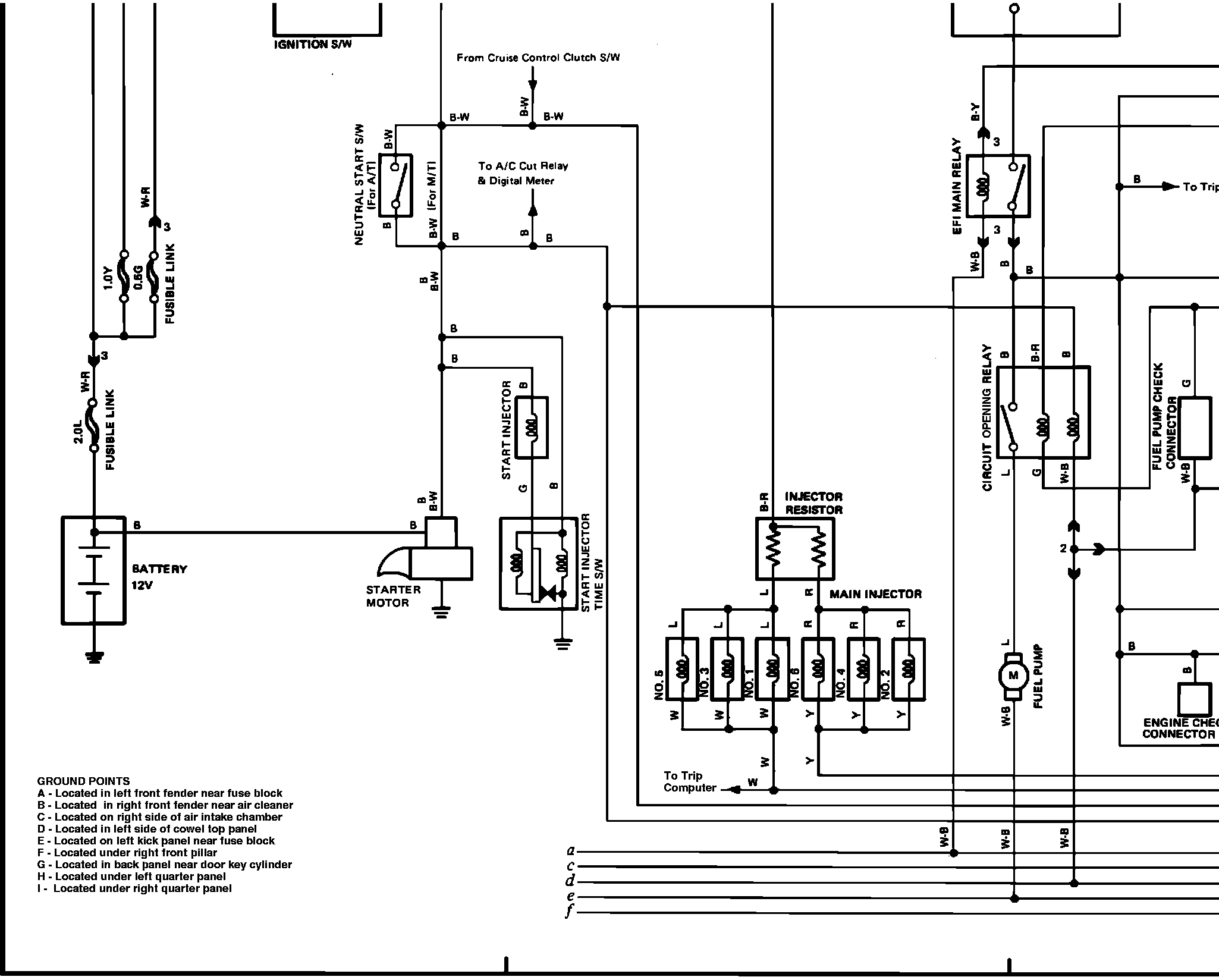

b<Eb�kbVxbY�b��b��bFig. 26a Power Supply, Starting System, Fuel System, Ignition System, Charging System, and Heating & A/C System Wiring Diagram:
