Operation CHARM
: Car repair manuals for everyone.
Home
>>
Toyota
>>
1984
>>
Camry L4-1839cc DSL (1CLC)
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Cruise Control
Cruise Control

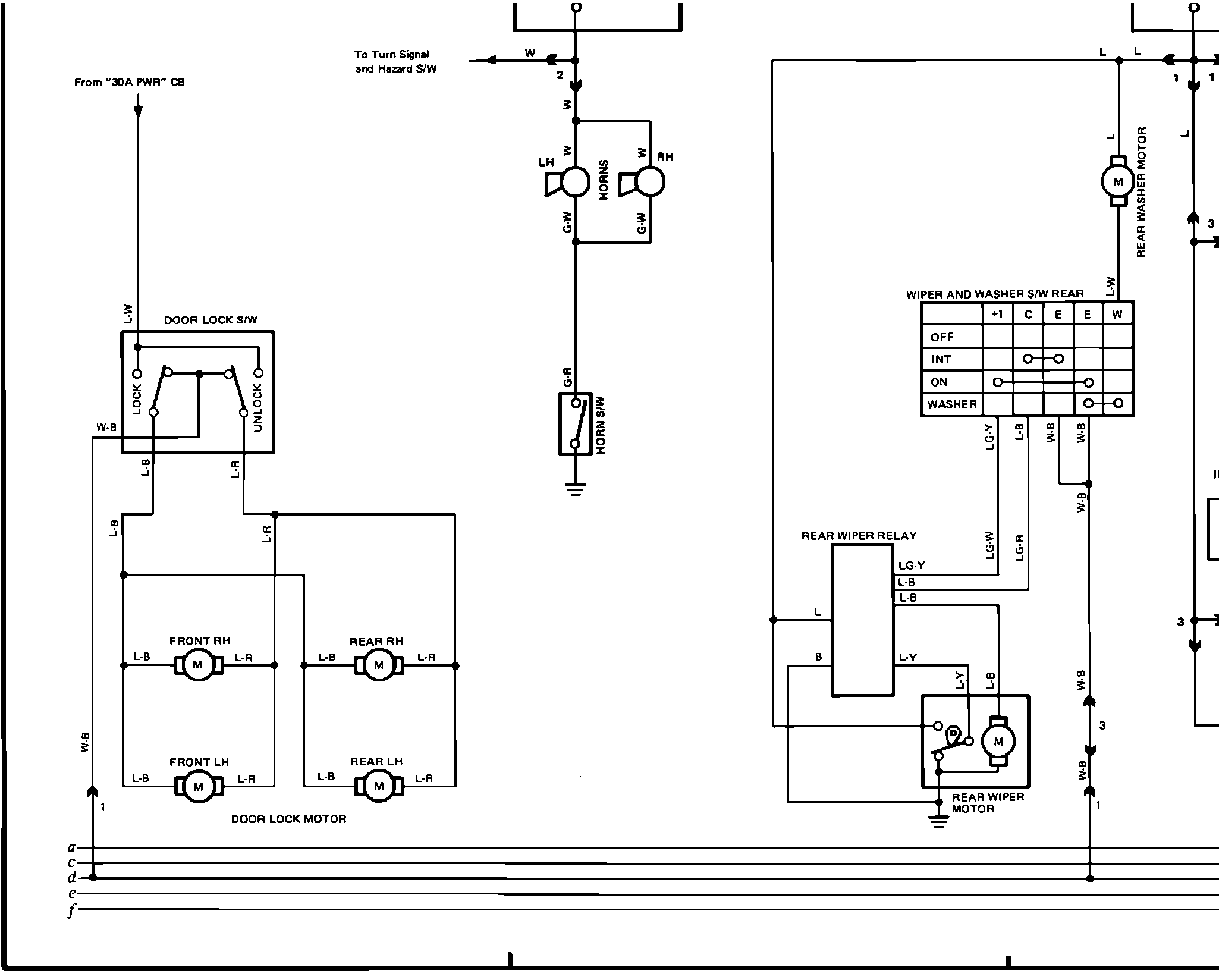

غ����%��/�}:��D��M�Fig. 6c Power Door Locks, Horn, Rear Wiper & Washer, Windshield Wiper & Washer, Cruise Control, Stop Light, Taillight & Illumination, and Headlamp Wiring Diagram:
