W/4A-C Engine, Except California

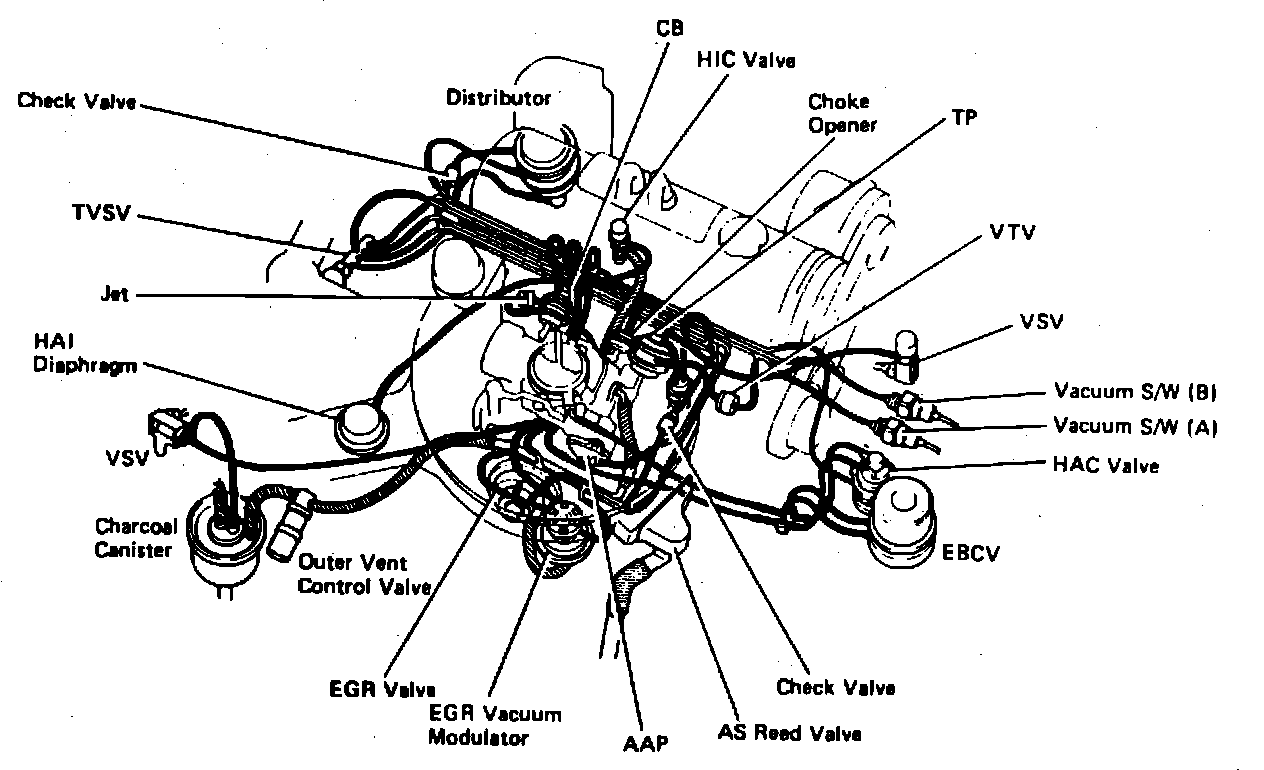

Emission Control System Components.:




Rear Side Of Engine

Applicable to: 1984 Models w/4A-C Engine & Front Wheel Drive Except California
