Throttle Position Sensor: Testing and Inspection

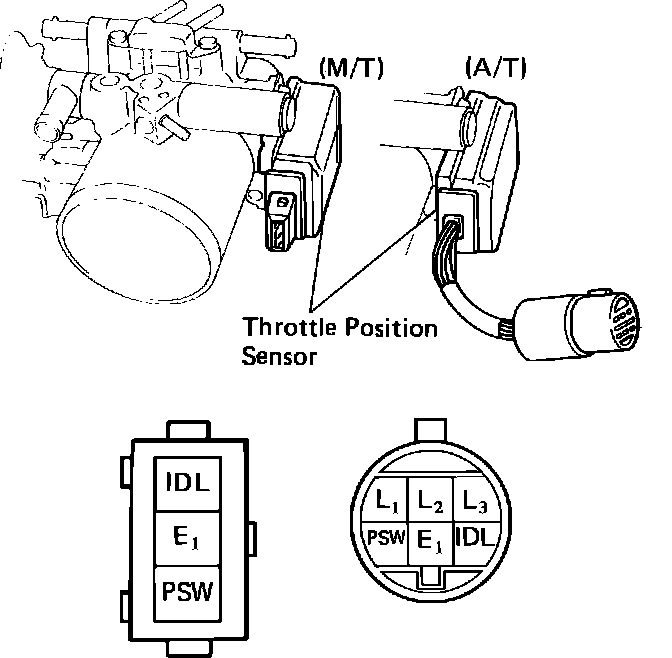

Fig. 242 Throttle Sensor ID:

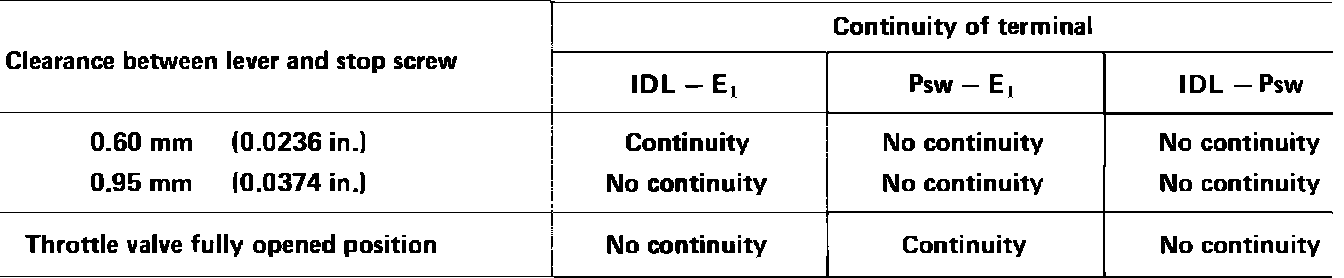

Fig. 243 Checking Throttle Sensor:

1. Disconnect throttle position sensor wire connector, Fig. 242.
2. Using suitable ohmmeter and feeler gauge inserted between throttle lever and stop screw, check for proper operation of switch, Fig. 243.
3. If switch does not pass the test, loosen the set screws to rotate
and test again. If the switch cannot be brought into the proper range, replace the throttle switch.
