Ignition System: Diagrams

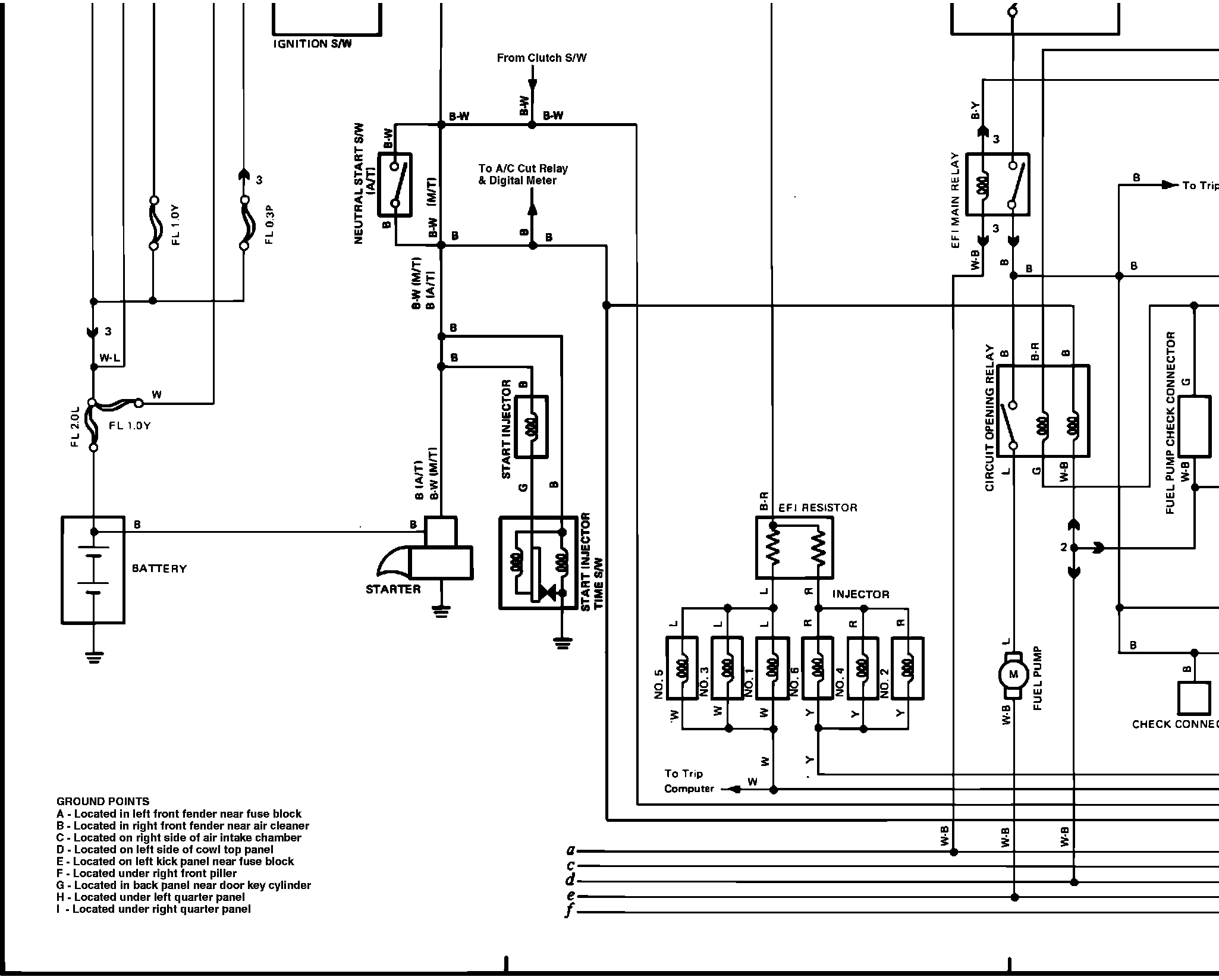

tea��a2�a��a��aH�a��aFig. 27a Power Supply, Starting System, Fuel System, Ignition System, Charging System, and Heating & A/C Wiring Diagram:
