Manual Transmission/Transaxle
>>
G52 Transmission
G52 Transmission

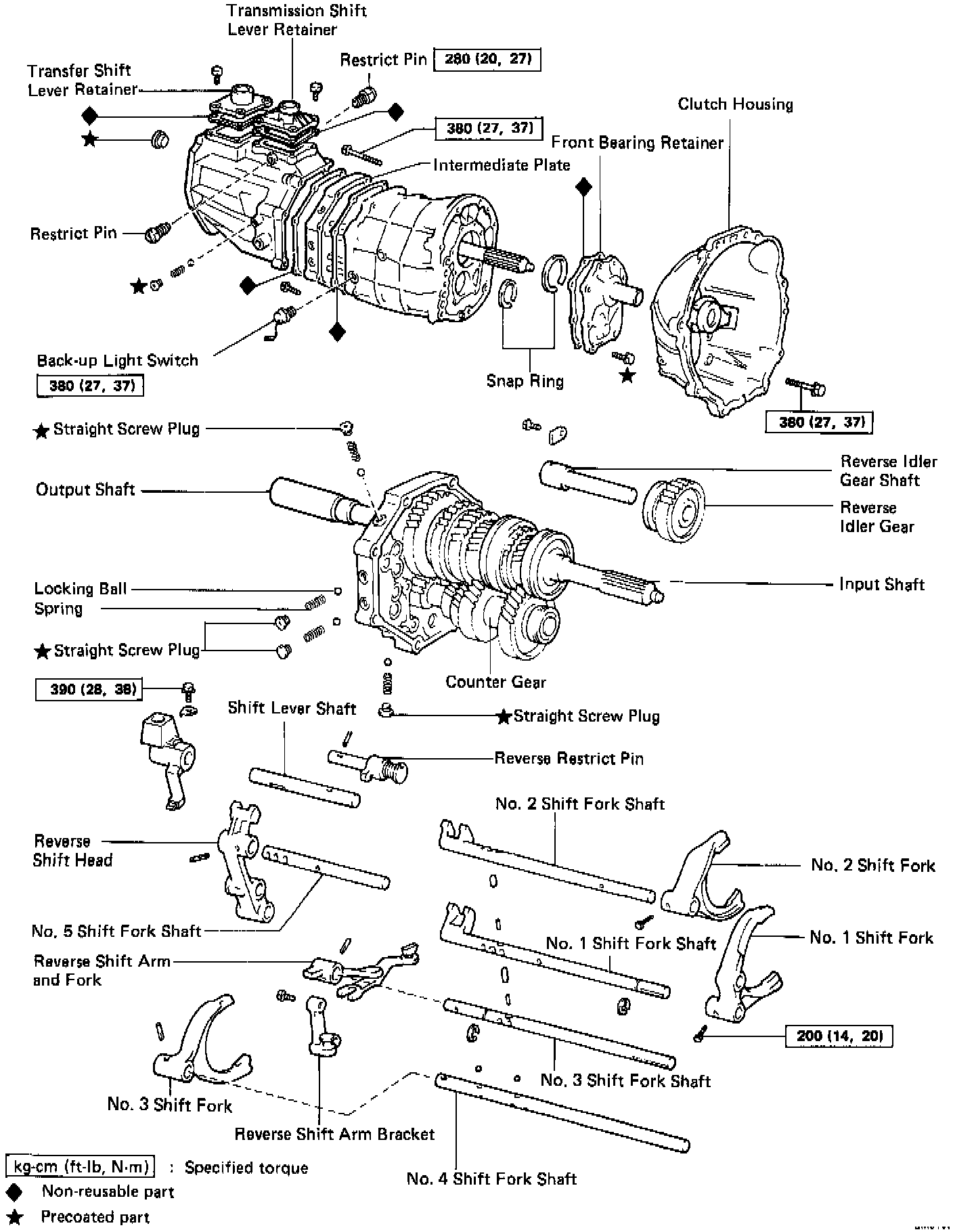

Case and Shift Components

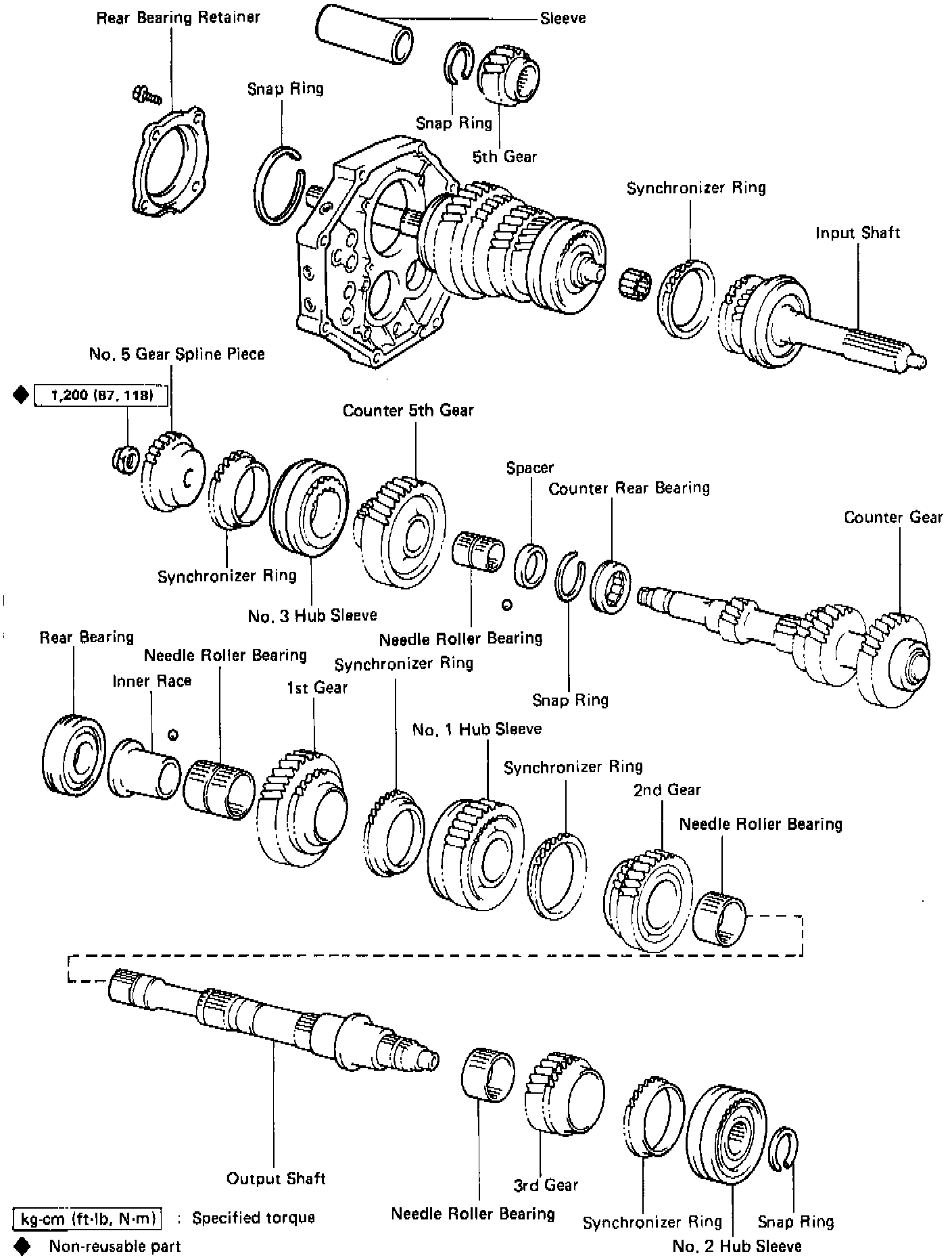

Gears and Shafts
