Control Module HVAC: Locations

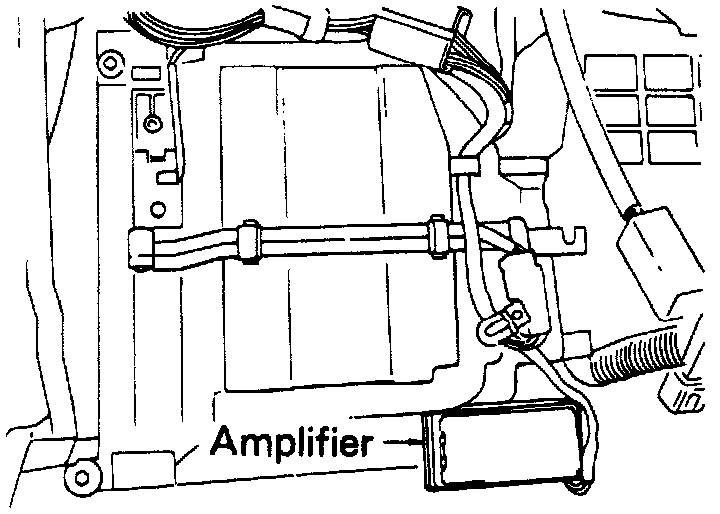

AC Amplifier Location:






Located at the bottom of the evaporator housing.
