Receiver Dryer: Locations

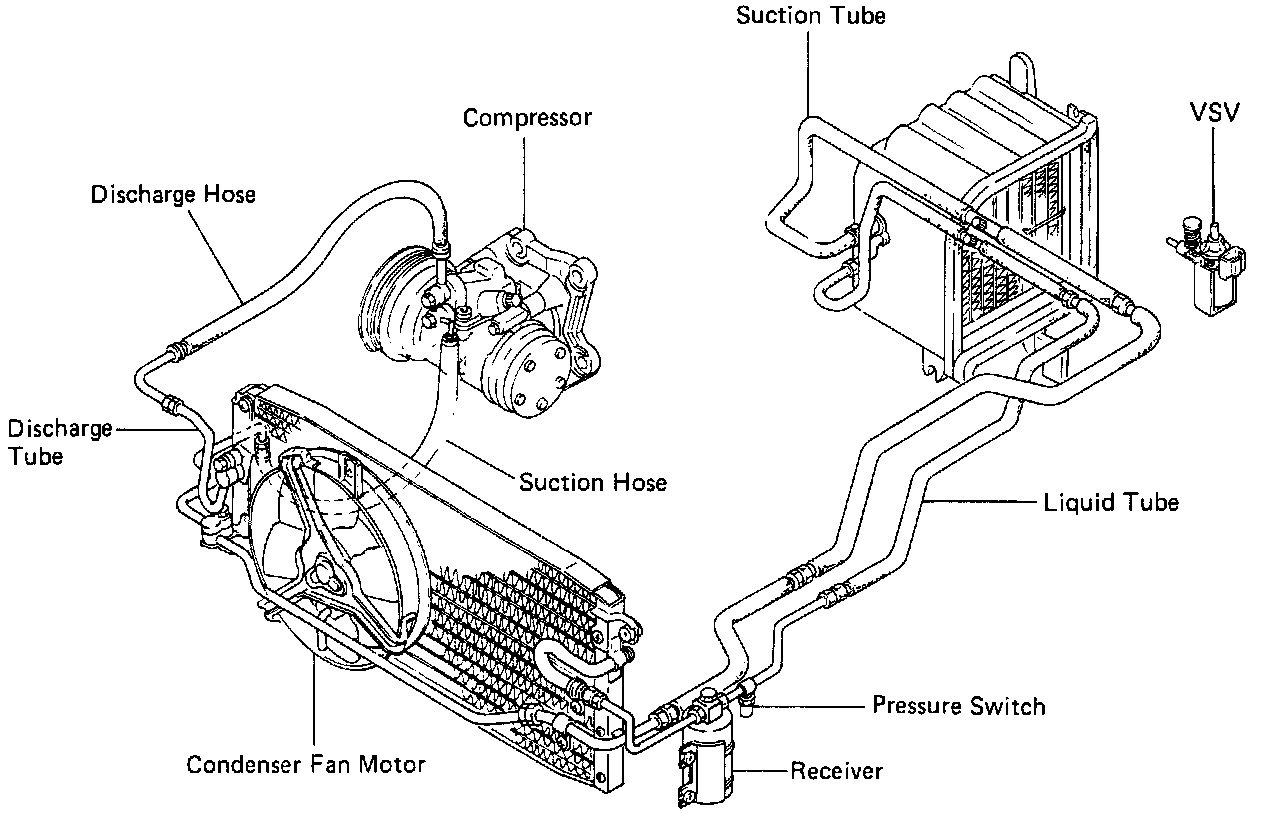

Component, Hose And Tubing Layout:
FX MODELS

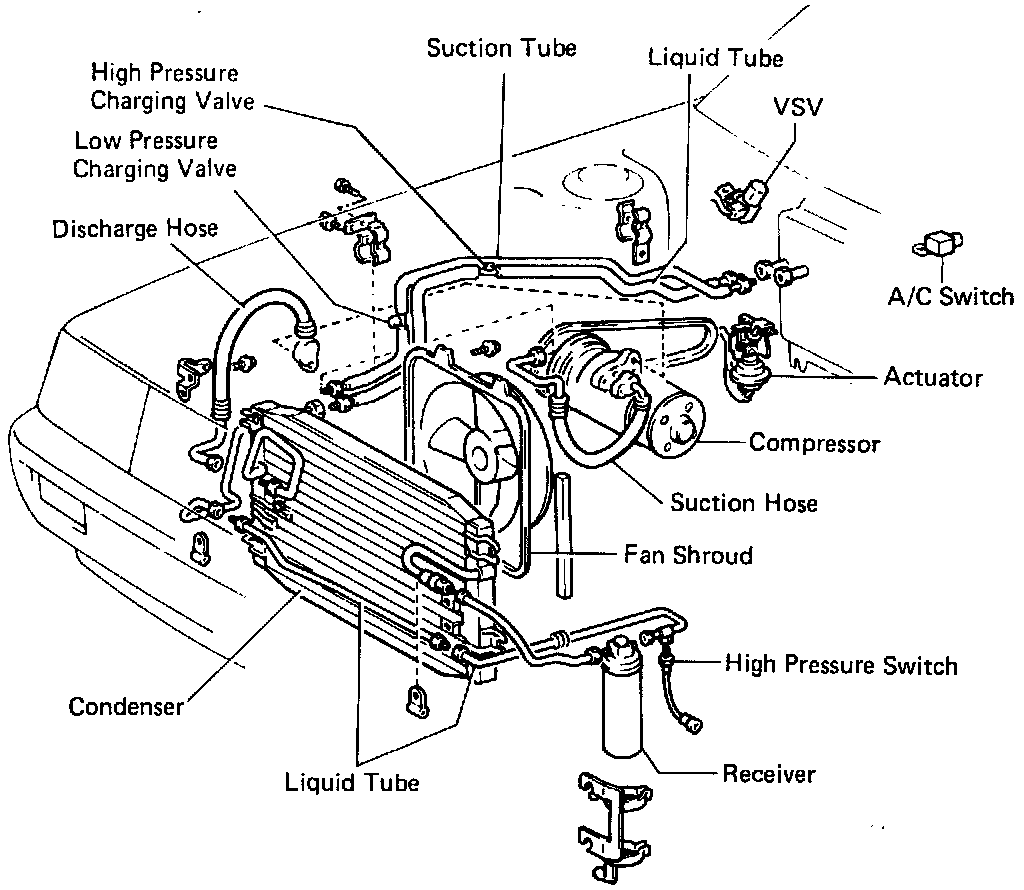

Component, Hose And Tubing Layout:
EXCEPT FX MODELS
