Home
>>
Toyota
>>
1985
>>
Cressida L6-2759cc 5M Ser
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Diagrams
>>
Connector Views
>>
ECU Terminal ID
ECU Terminal ID

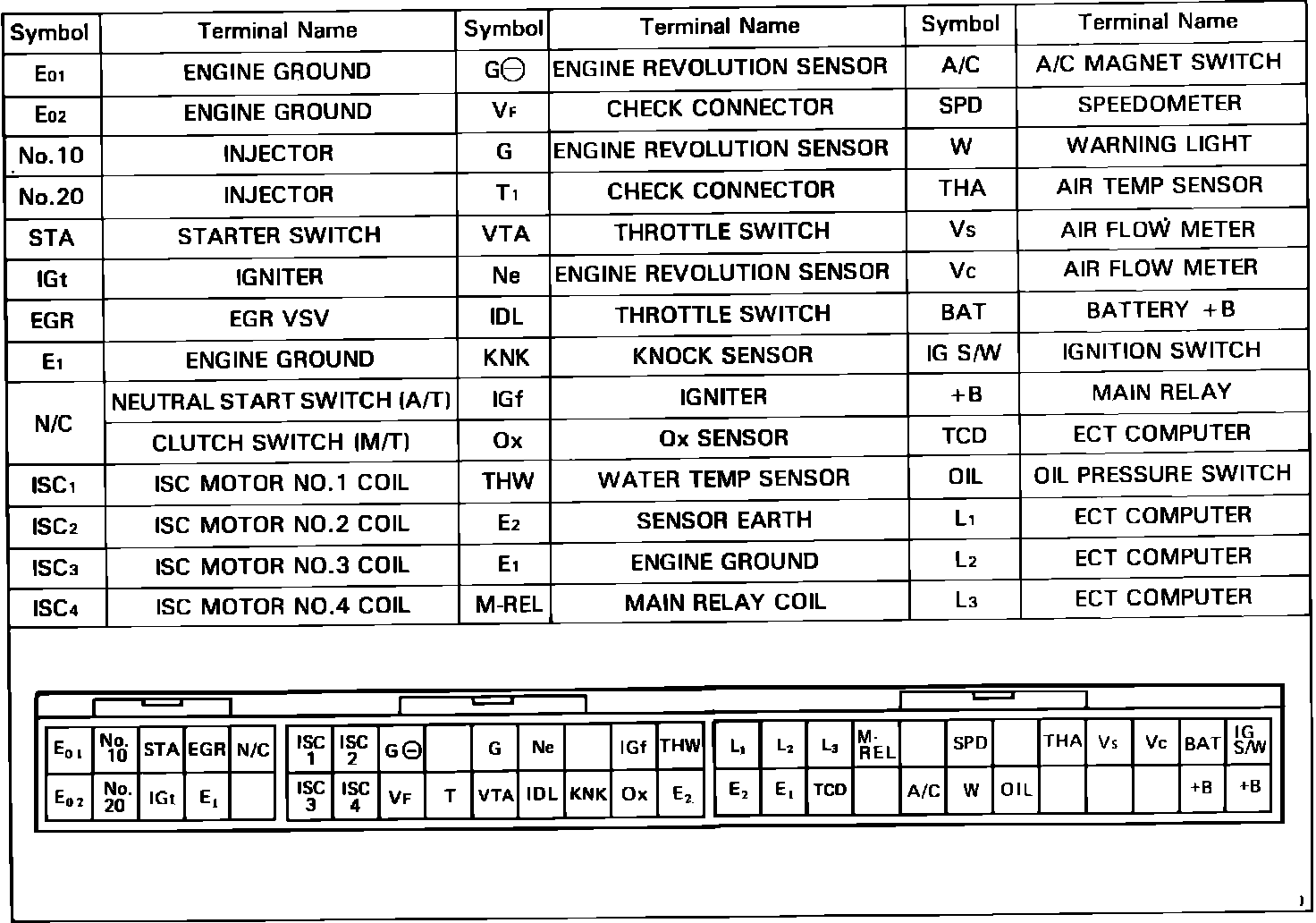

Fig. 137 ECU Connector ID.:
