Home >> Toyota >> 1985 >> MR2 L4-1587cc 4A DOHC >> Repair and Diagnosis >> Specifications >> Electrical Specifications >> Air Flow Meter/Sensor >> Test Specifications With Unit Removed

Test Specifications With Unit Removed

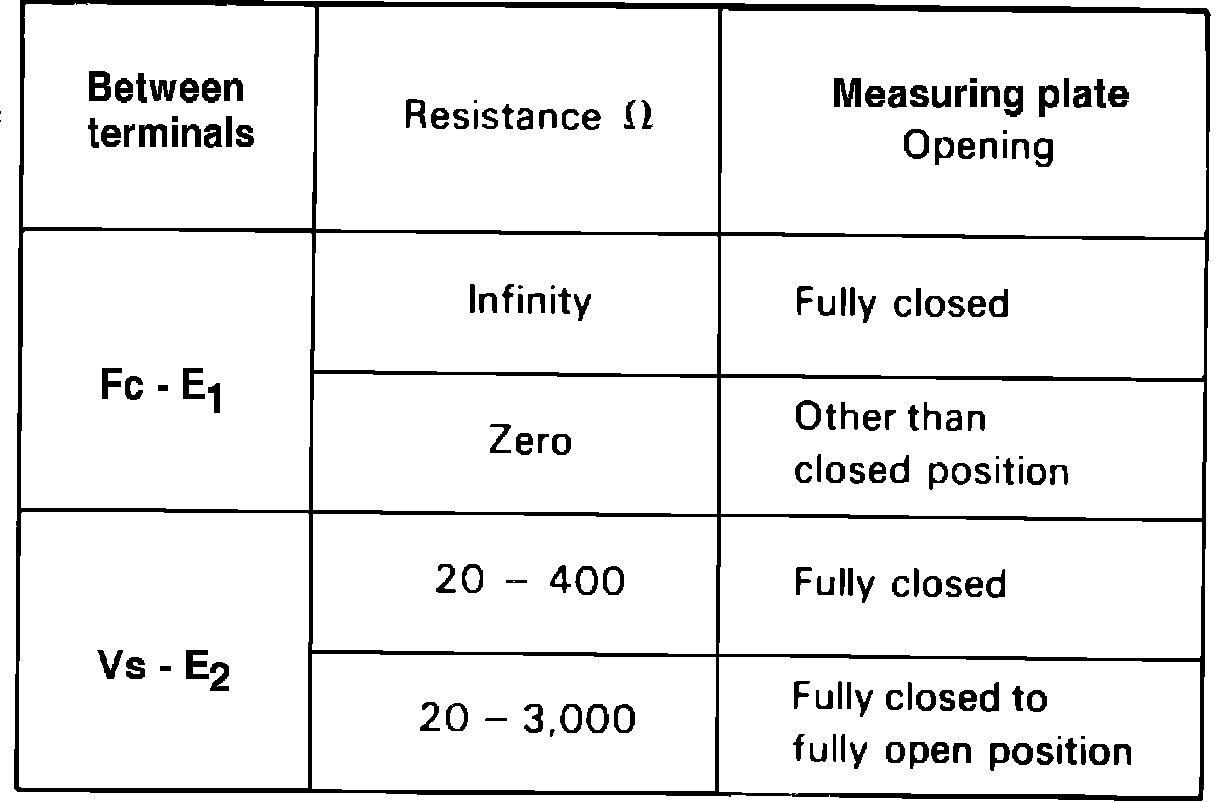

Fig. 56 Air flow meter test specifications w/unit removed.:
