Torque Specifications

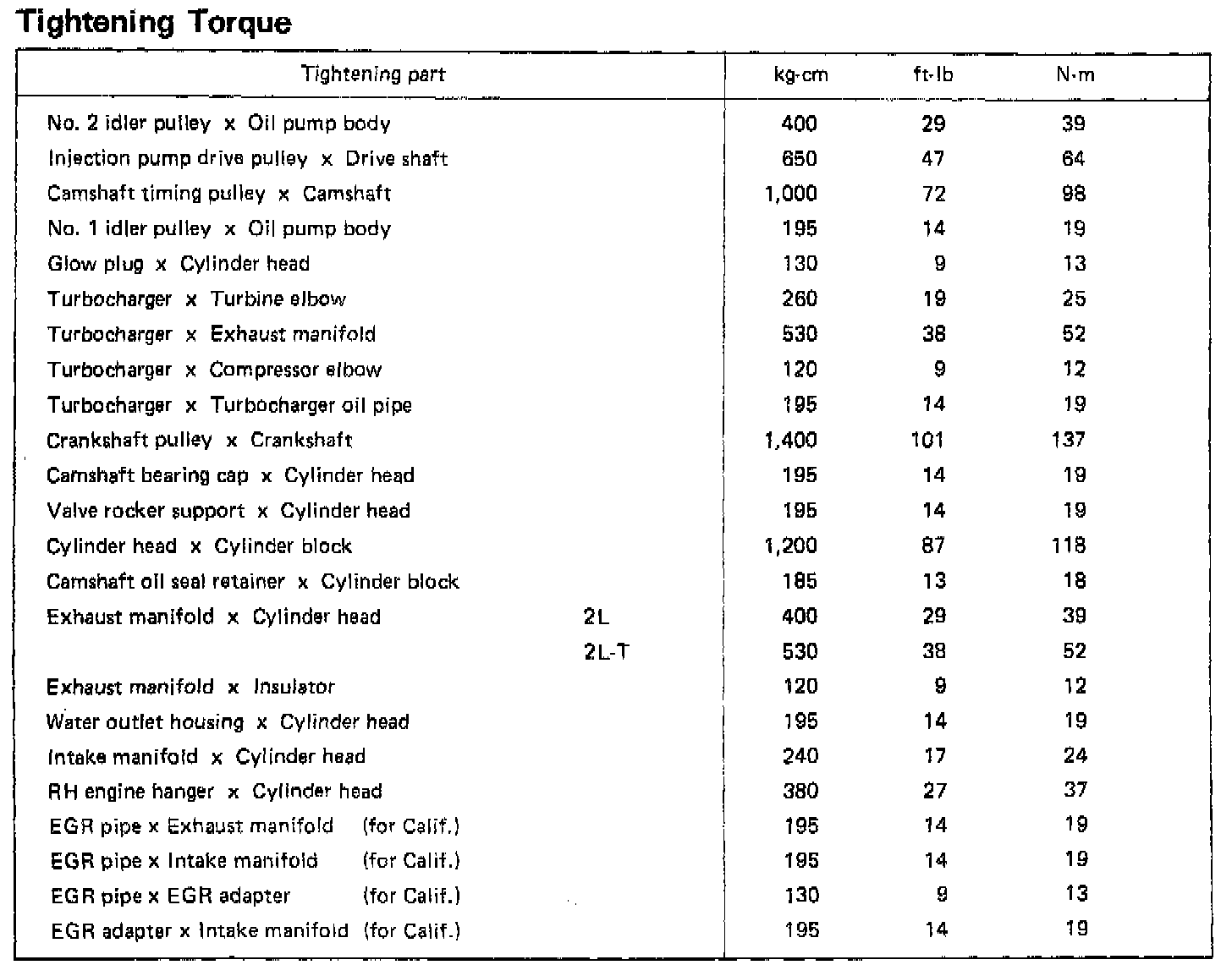

Torque Chart:

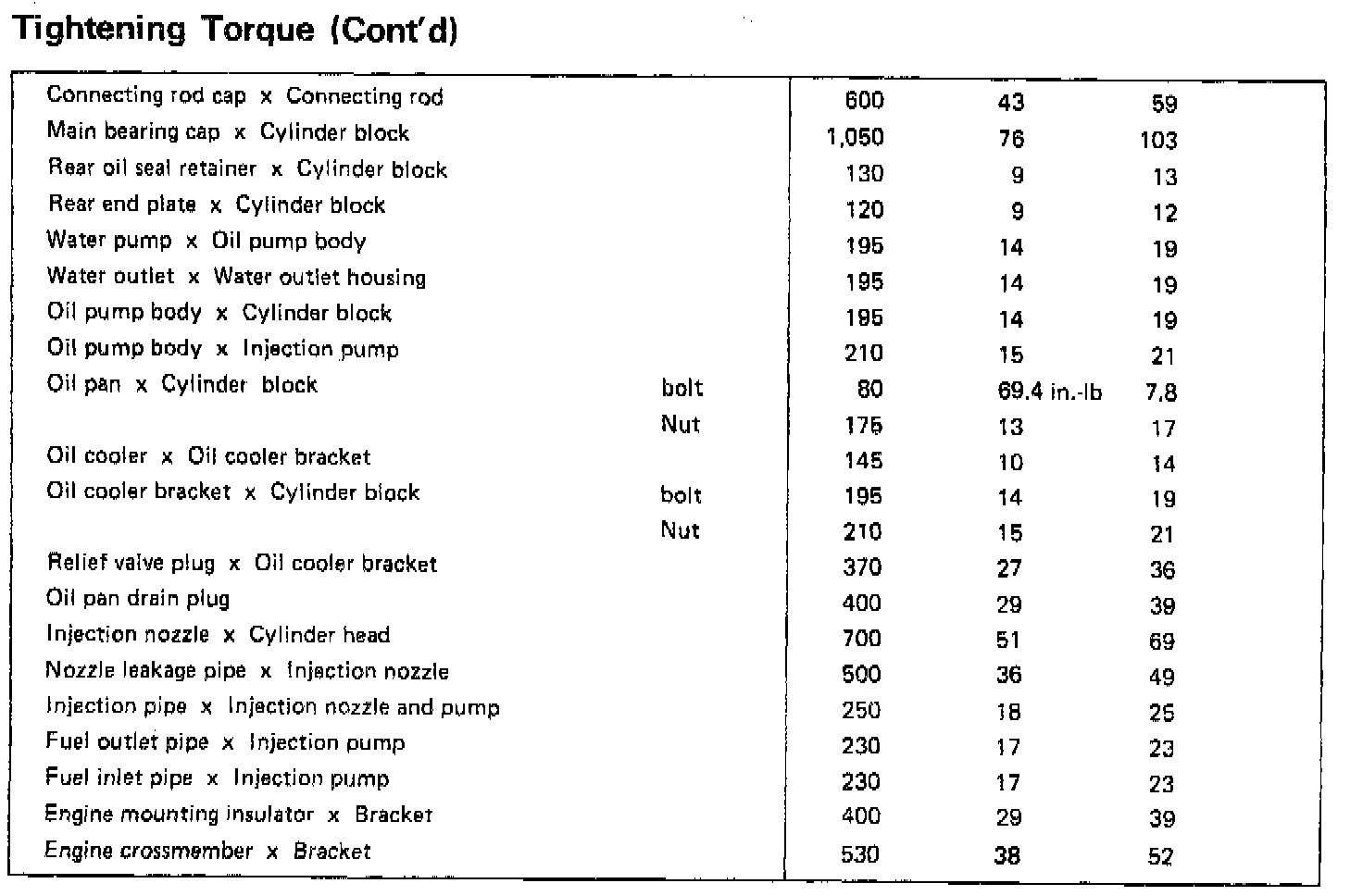

Torque Chart (cont.):

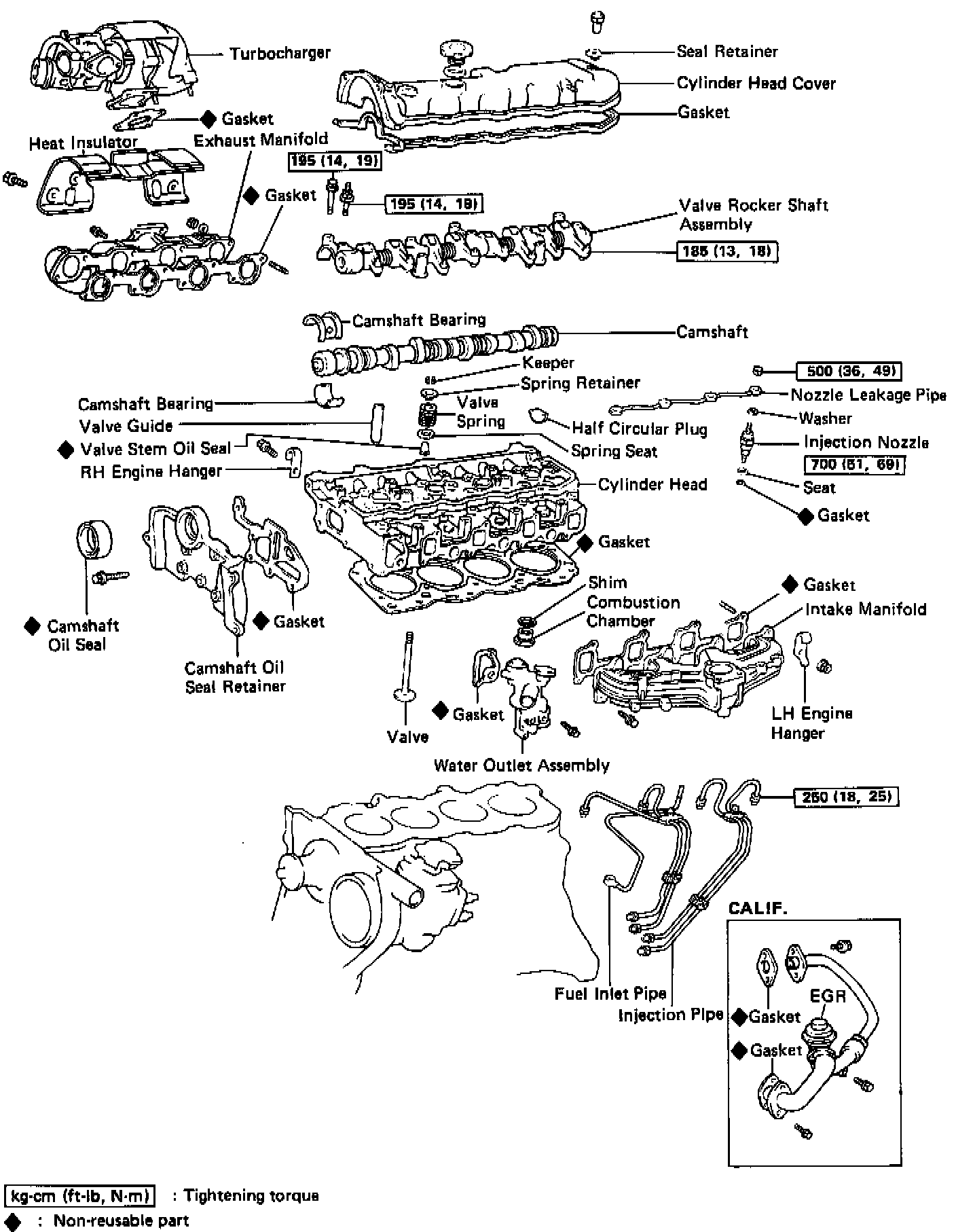

Upper Engine Torque Values:

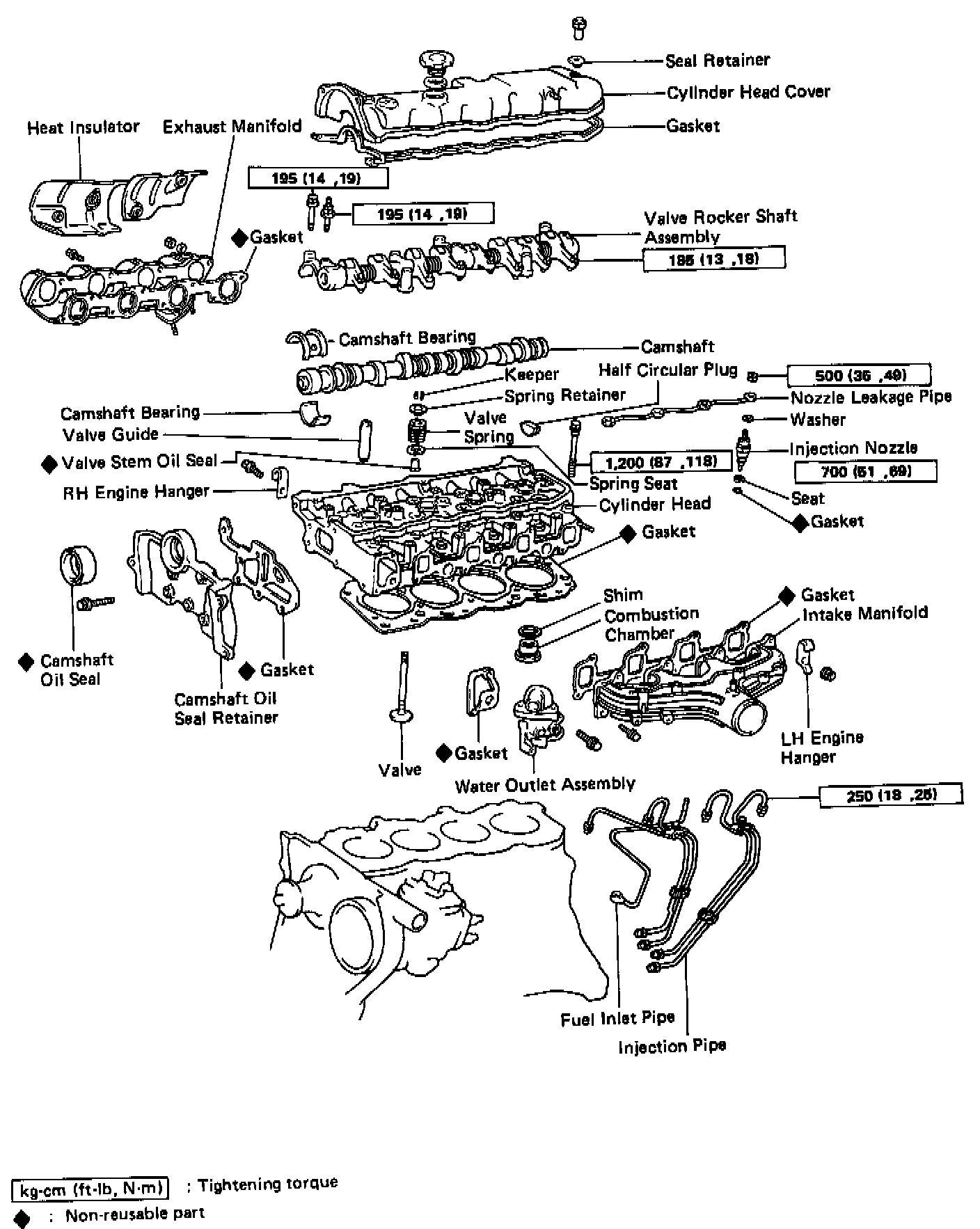

Upper Engine Torque Values:

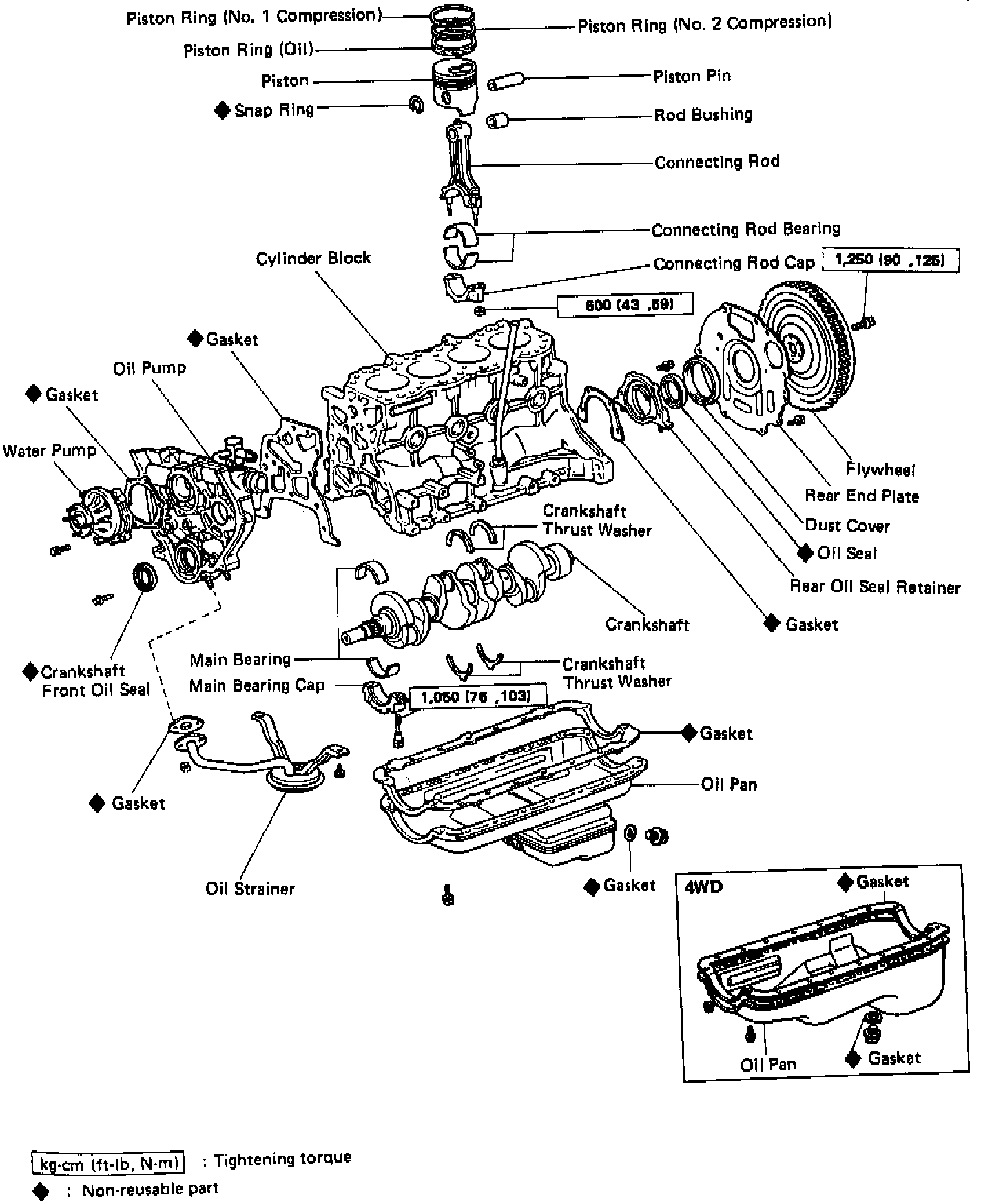

Lower Engine Torque Values:

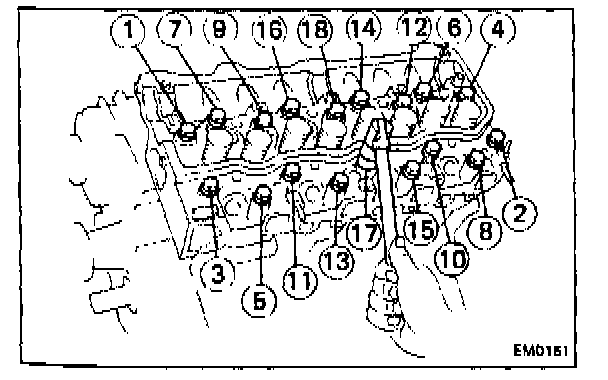

Head Loosening Sequence:

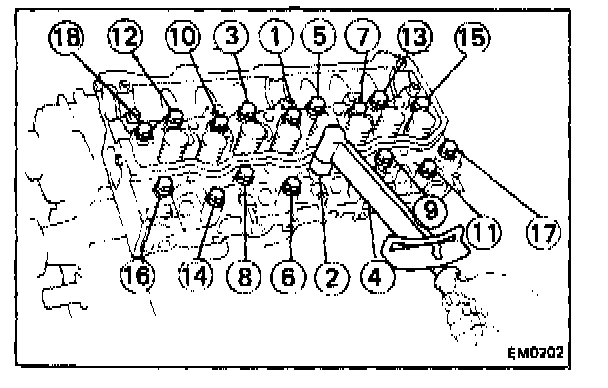

Head Tightening Sequence:
