Torque Specifications

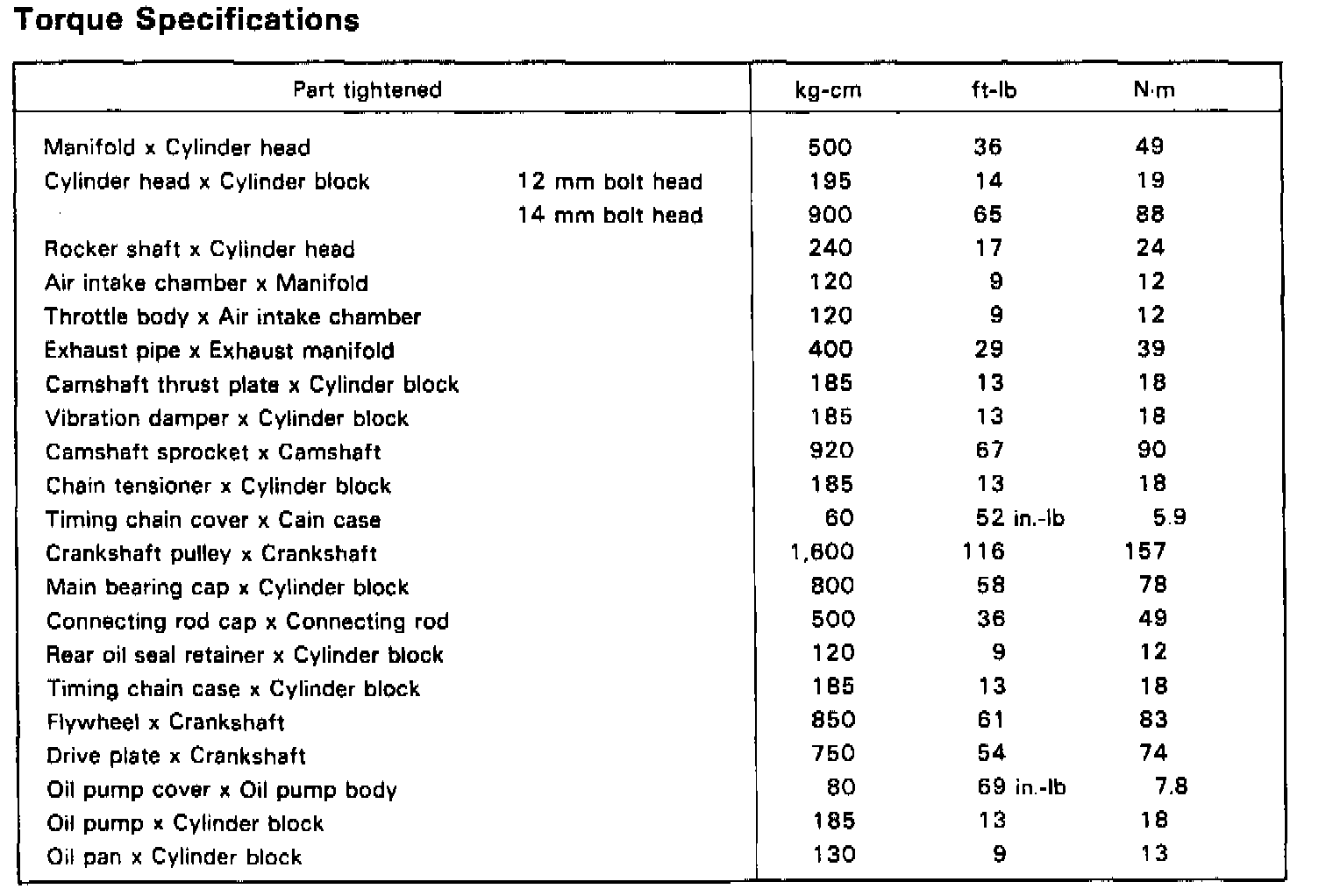

Torque Chart:

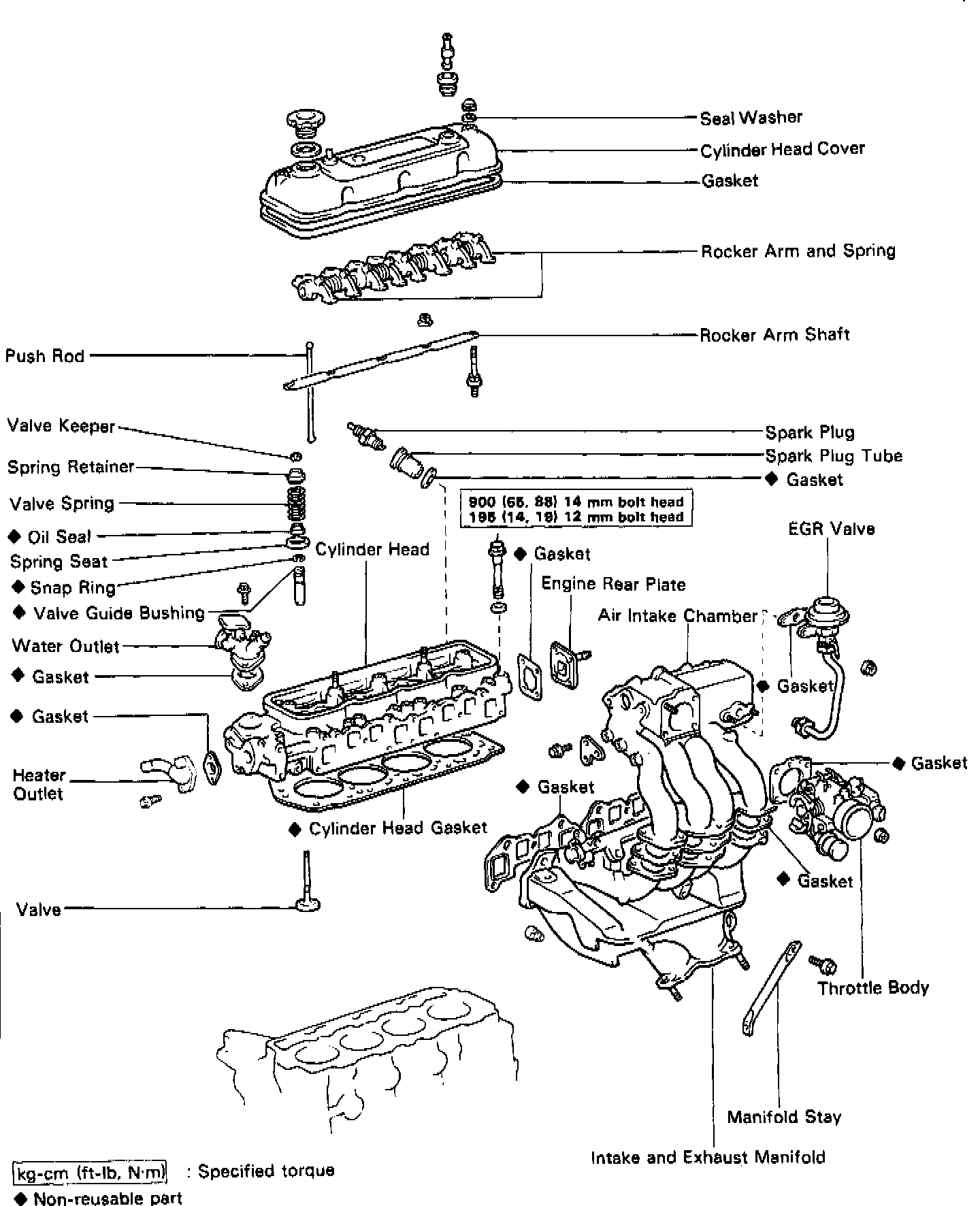

Upper Engine Torque Values 4Y-EC:

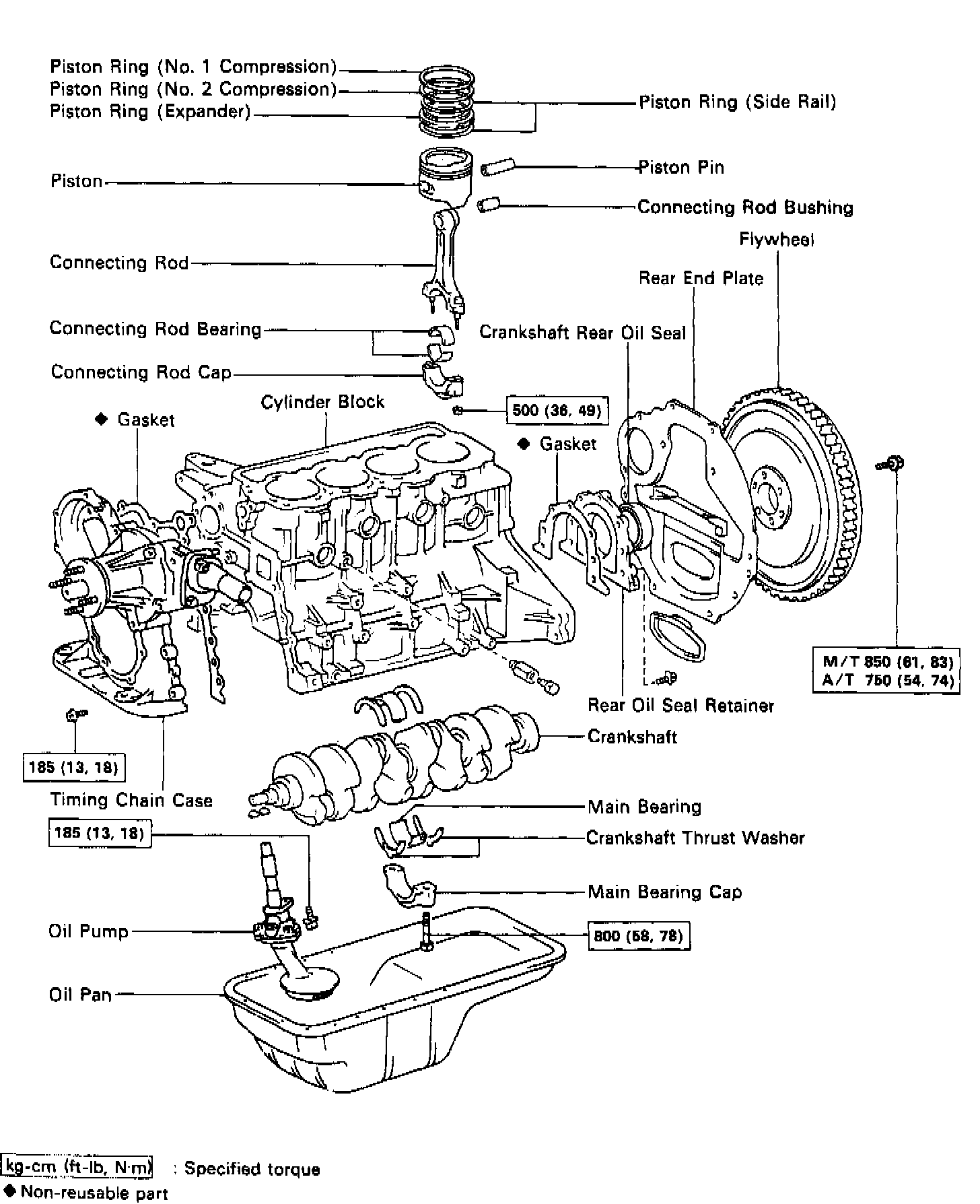

Lower Engine Torque Values 4Y-EC:

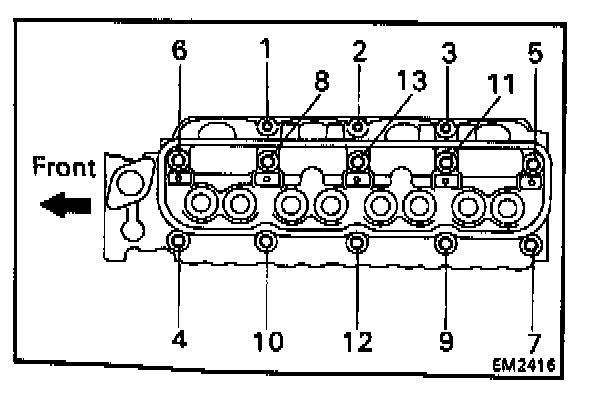

Head Loosening Sequence 4Y-EC:

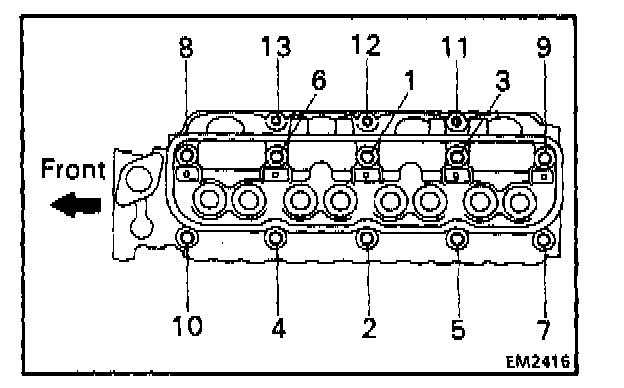

Head Tightening Sequence 4Y-EC:






Main Bearing Torque Sequence:

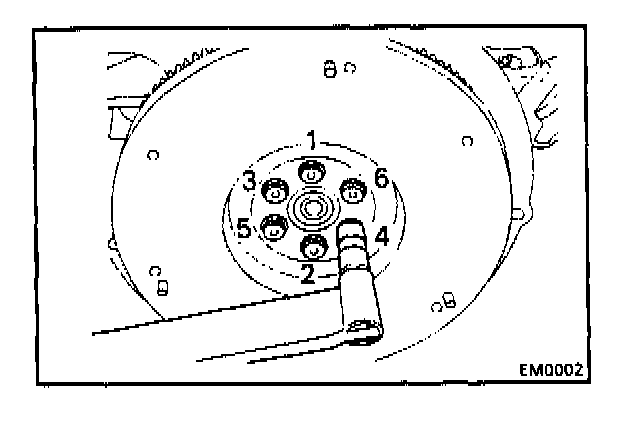

Flywheel Torque Sequence 4Y-EC:
