A140E Electronic Control Circuit Schematic

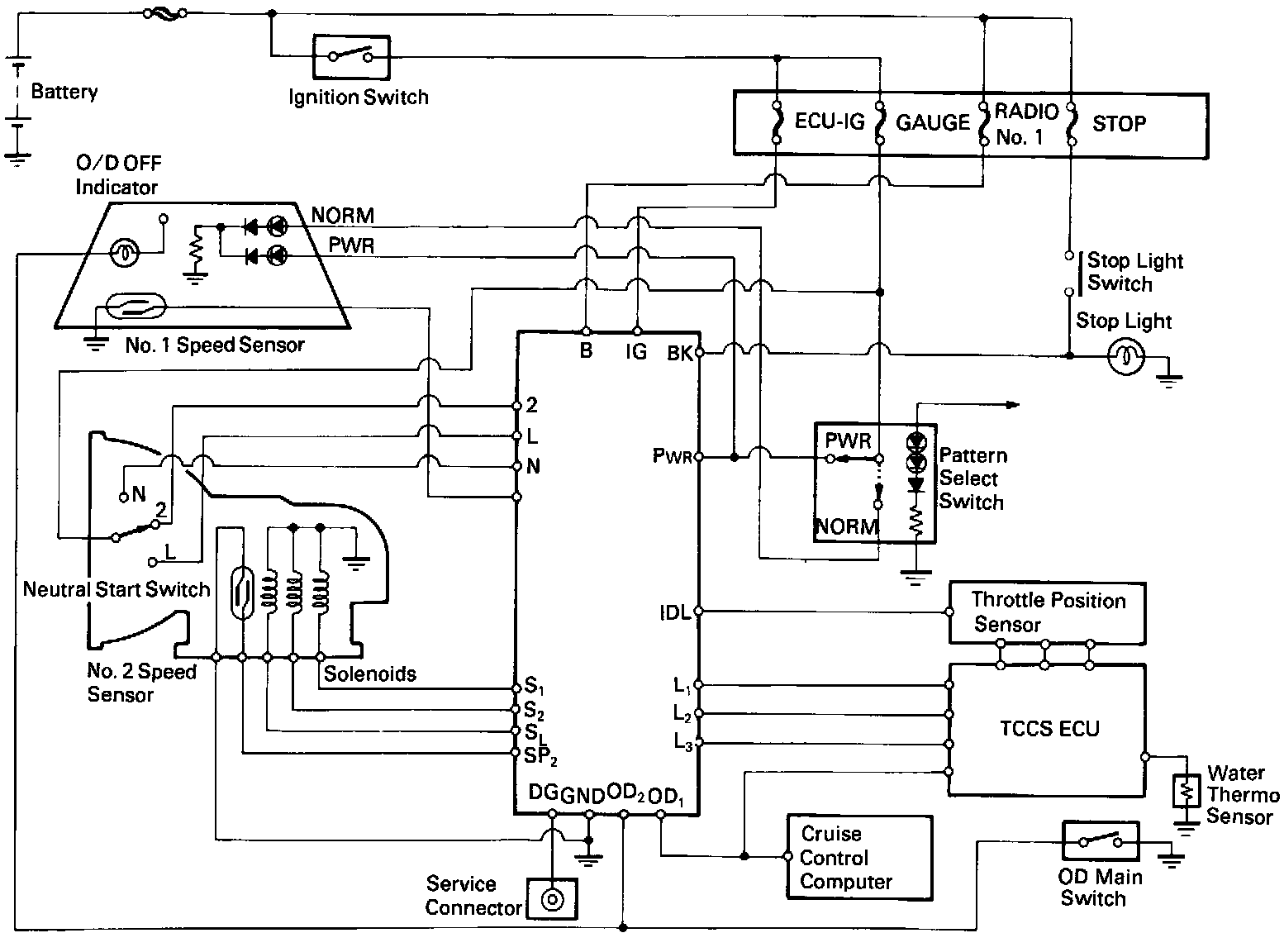

A140E Electronic Control Circuit Schematic
A140E Electronic Control Circuit:
