Throttle Position Sensor: Testing and Inspection

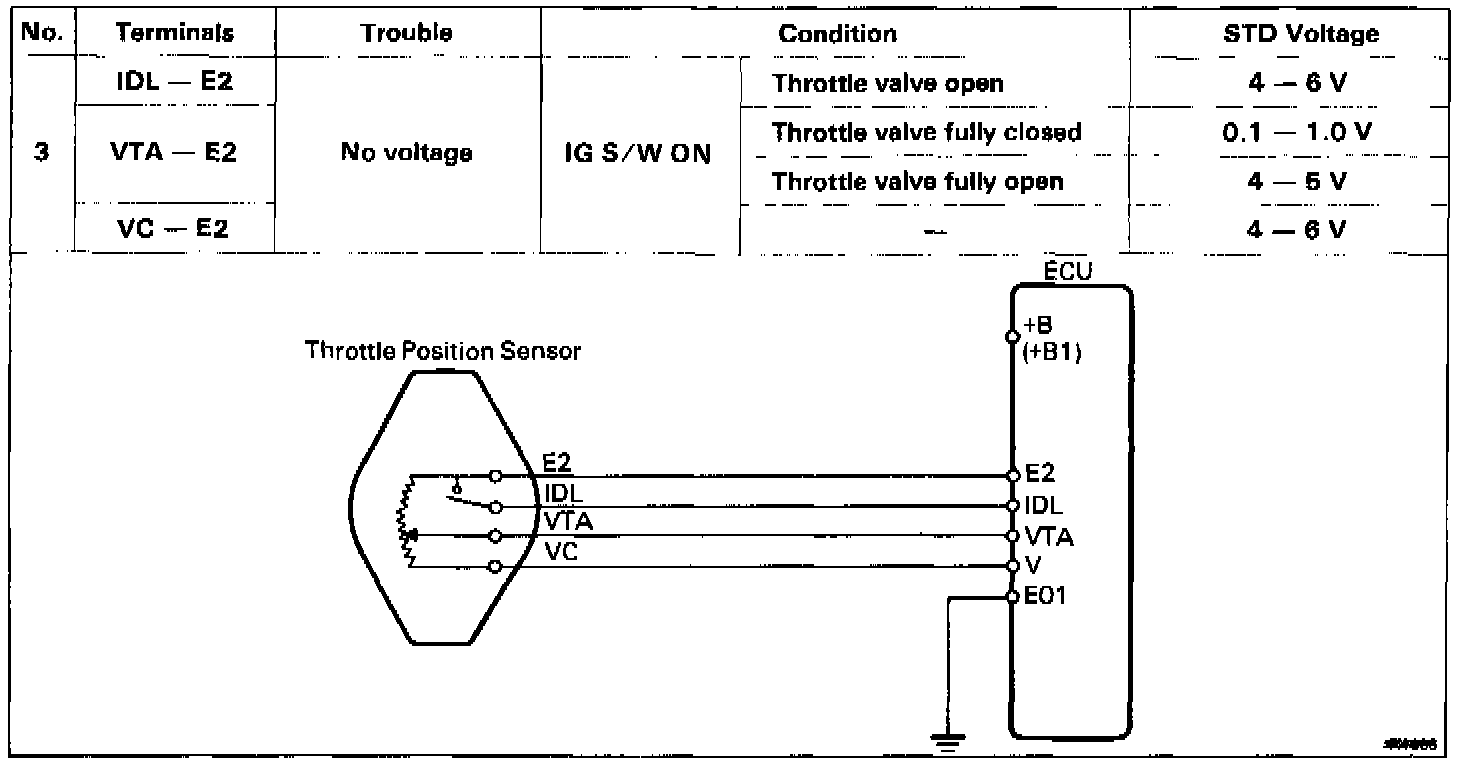

Test No. 3

Test No. 3 Summary:

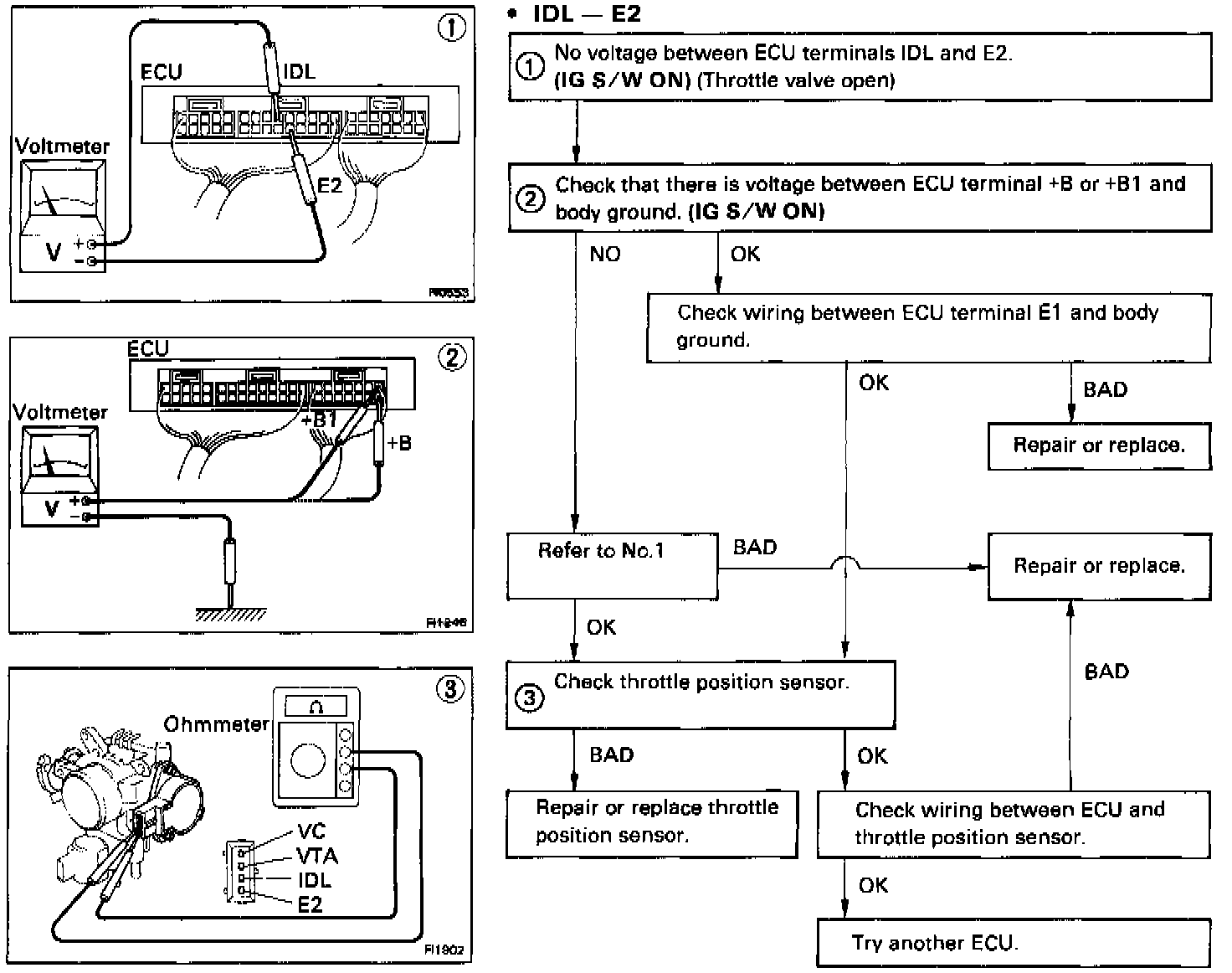

IDL - E2:





VTA - E2:

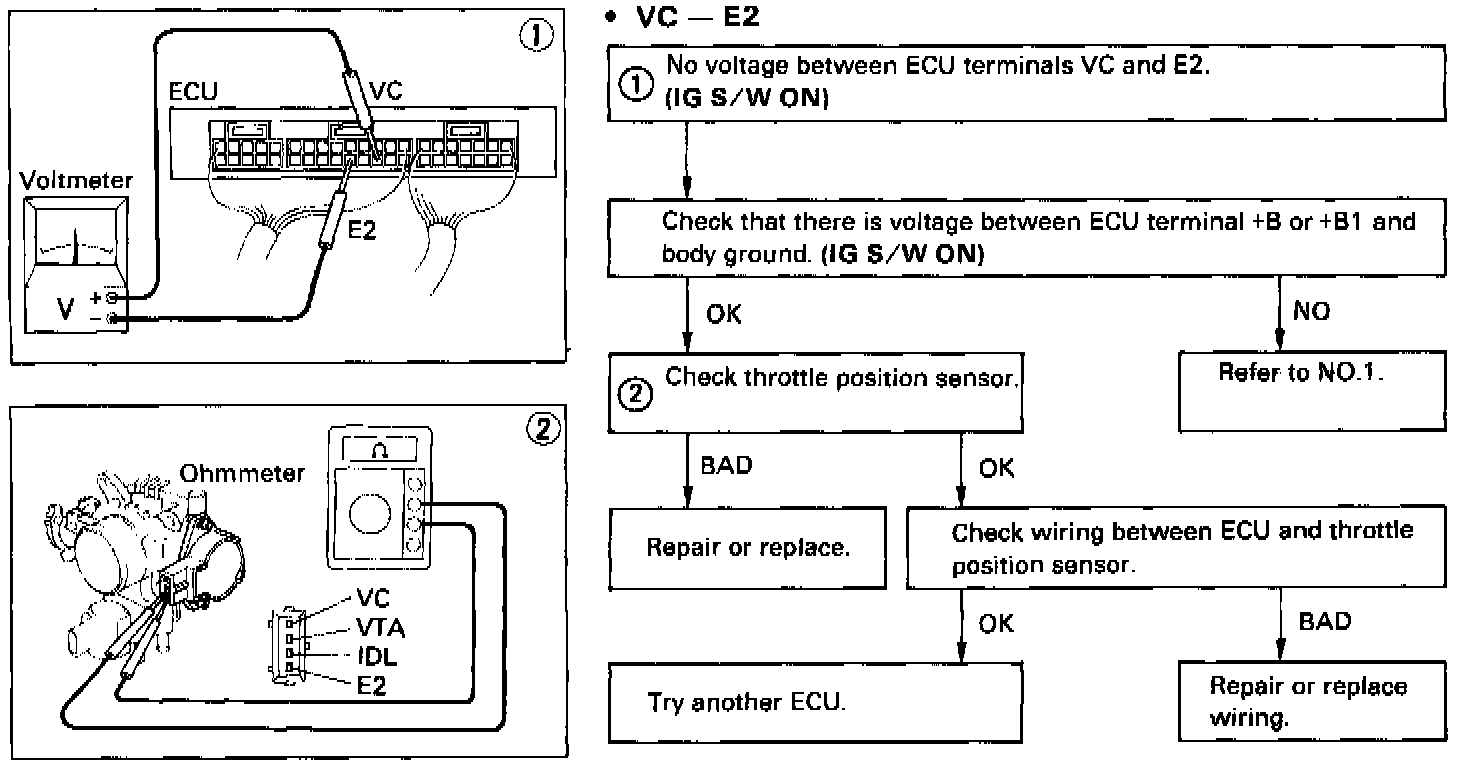

VC - E2:
