Torque Specifications

Torque Chart 3S-FE:

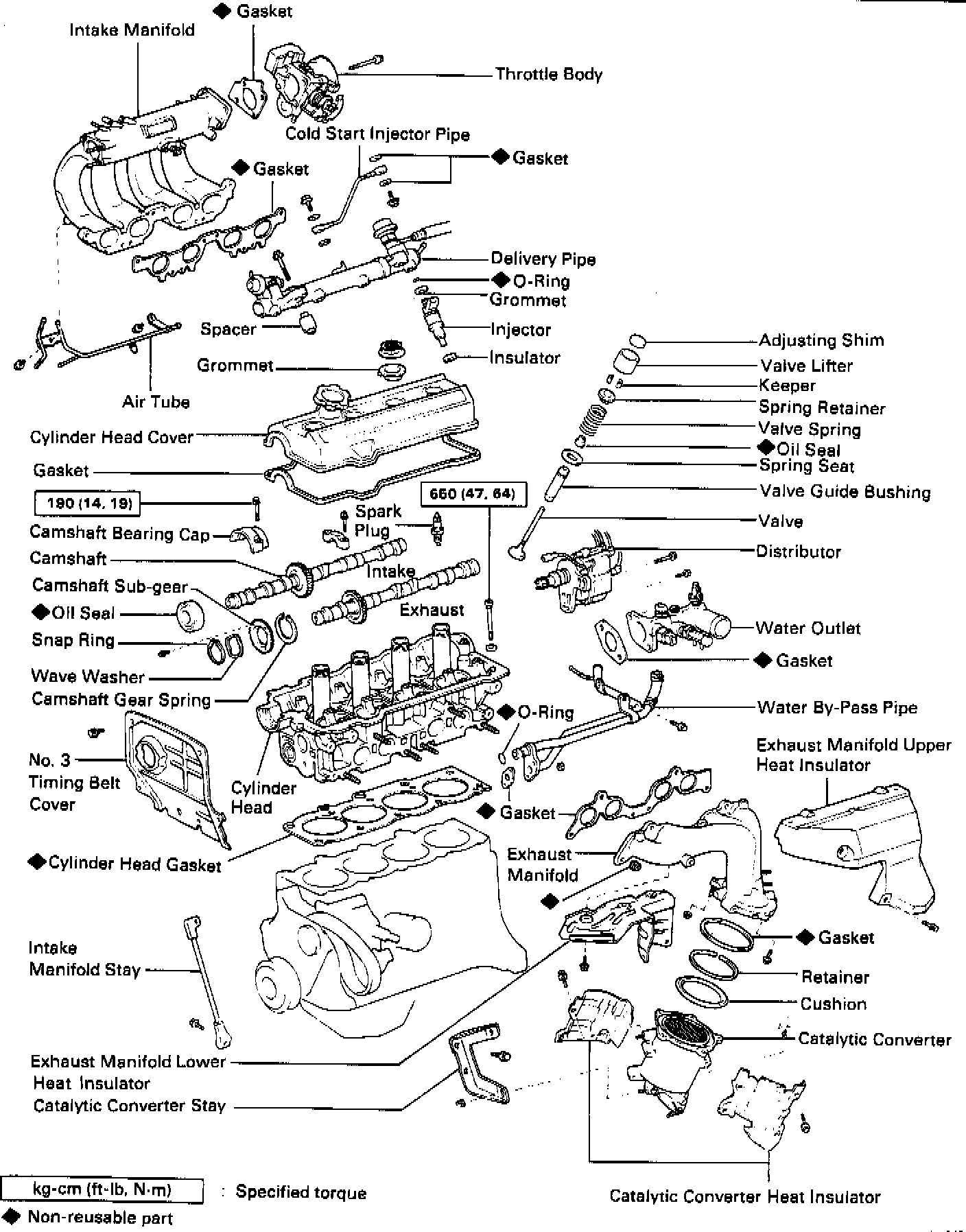

Upper Engine Torque Values 3S-FE:

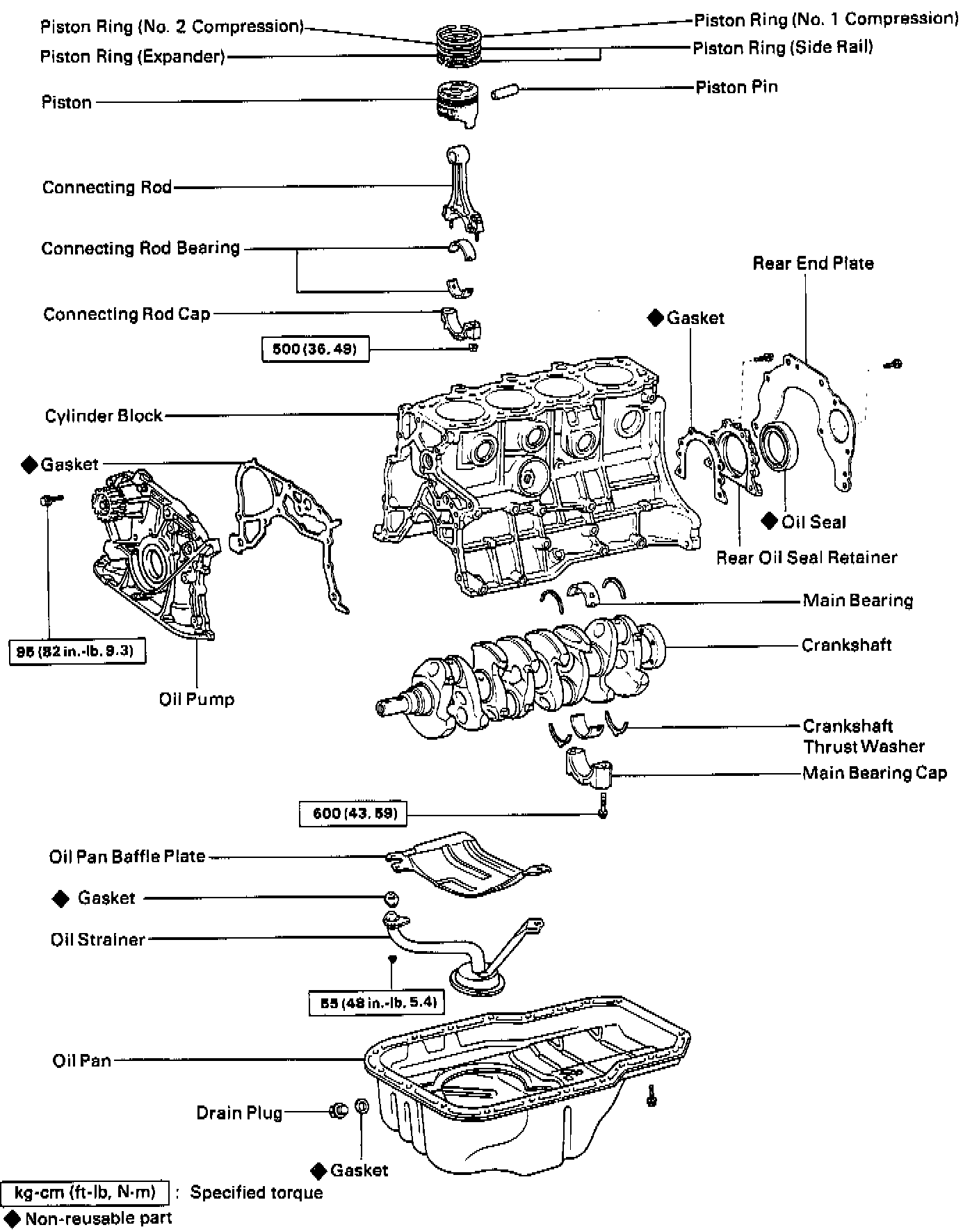

Lower Engine Torque Values 3S-FE:

Fig. 1 Exhaust Camshaft Bearing Cap Bolts 1 & 2 Removal. 3S-FE:

Fig. 2 Exhaust Camshaft Bearing Cap Bolt 3 Through 8 Removal. 3S-FE:

Fig. 3 Exhaust Camshaft Bearing Cap Bolt 9 & 10 Removal. 3S-FE:

Fig. 4 Intake Camshaft Bearing Cap Bolt 1 & 2 Removal. 3S-FE:

Fig. 5 Intake Camshaft Bearing Cap Bolt 3 Through 8 Removal. 3S-FE:

Fig. 6 Intake Camshaft Bearing Cap Bolt 9 & 10 Removal. 3S-FE:

Fig. 9 Intake Camshaft Bearing Cap Bolt Tightening Sequence. 3S-FE:

Fig. 11 Exhaust Camshaft Bearing Cap Bolt Tightening Sequence. 3S-FE:

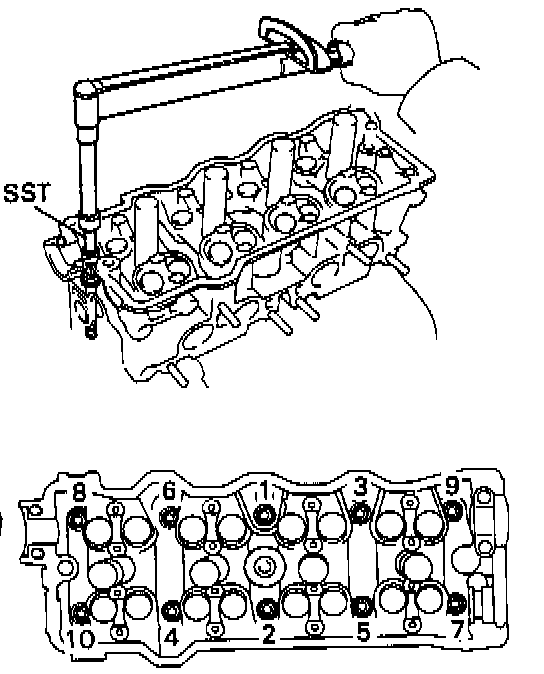

Head Loosening Sequence 3S-FE:

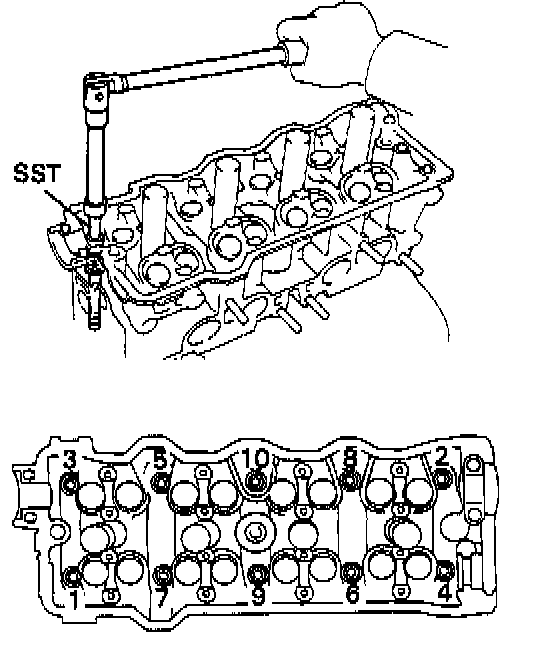

Head Tightening Sequence 3S-FE:

Main Bearing Torque Sequence:

Flywheel Torque Sequence - Tighten To Specified Torque In 2 Or 3 Passes:
