Air Conditioning Amplifier

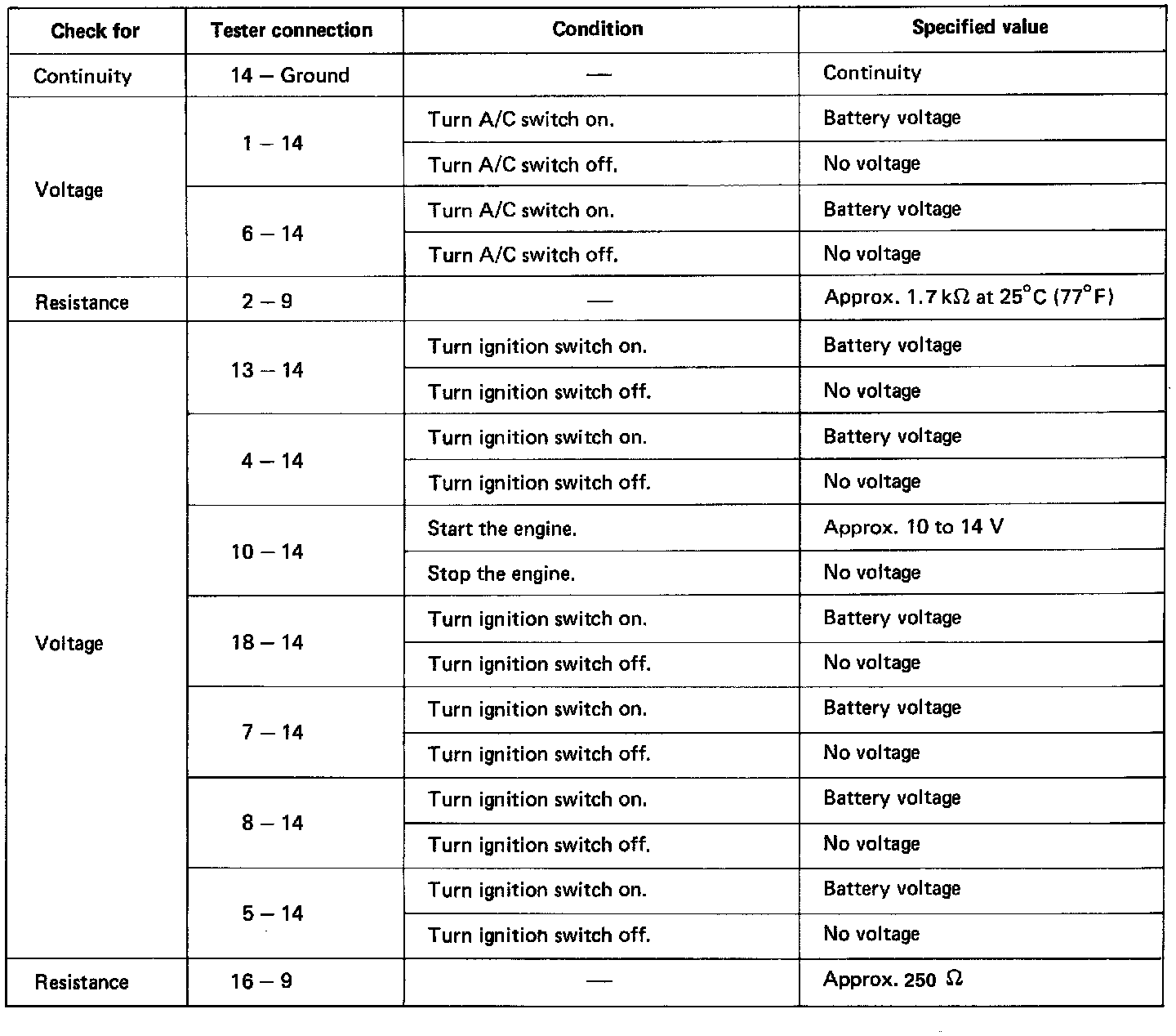

Disconnect the amplifier and inspect the connector on the wire harness side as shown in the chart below.

Test conditions:
1. Ignition switch: ON
2. Temperature control lever: MAX COOL
3. Blower switch: HI
