Component Inspection

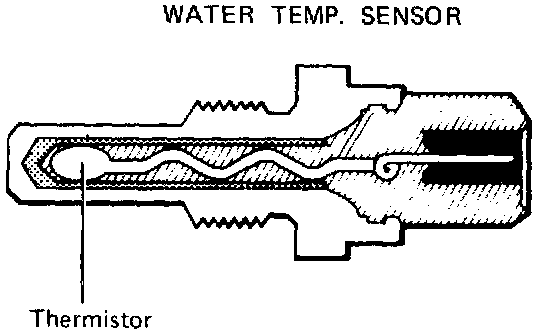

INSPECTION OF WATER TEMPERATURE SENSOR









1. INSPECT WATER TEMPERATURE SENSOR.

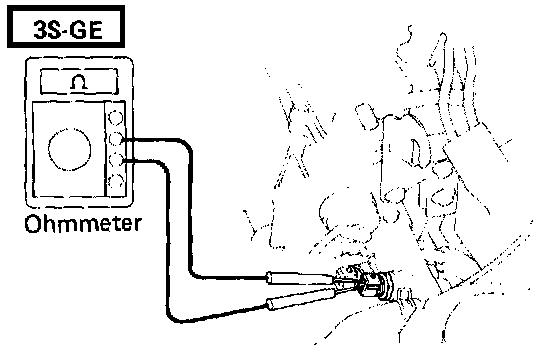

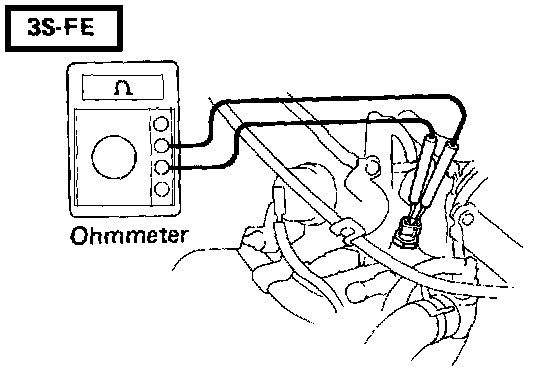

a. Using an ohmmeter, measure the resistance between the terminals.

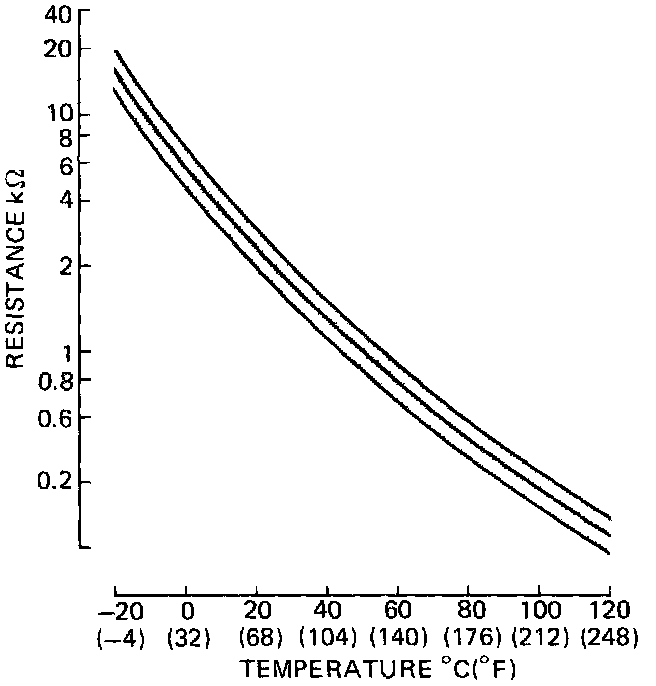

Temperature To Resistance Values:

Resistance: Refer to image

b. If the resistance is not as specified, replace the sensor.
