System Check Procedure

EFI SYSTEM CHECK PROCEDURE

NOTE:
^ Perform all voltage measurements with the connectors connected.
^ Verity that the battery voltage is 11 V or more when the ignition switch is at "ON".

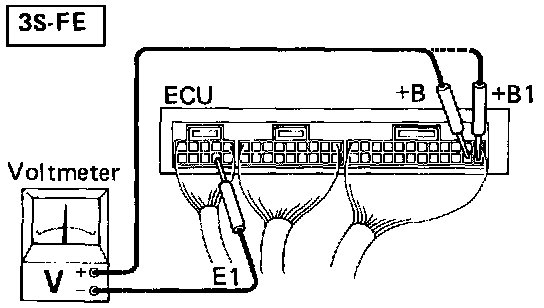

Using a voltmeter with high impedance (10 k ohms/V minimum), measure the voltage at each terminal of the wiring connectors.

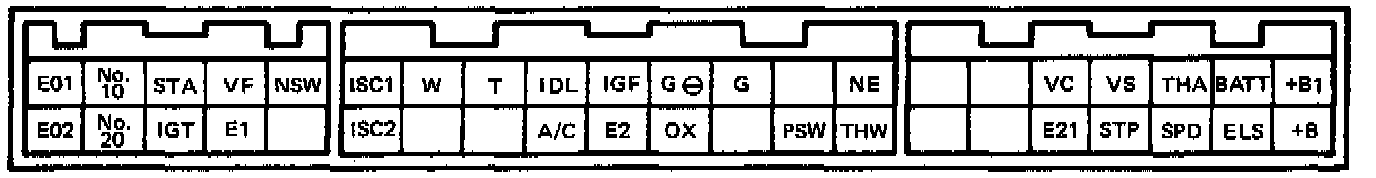

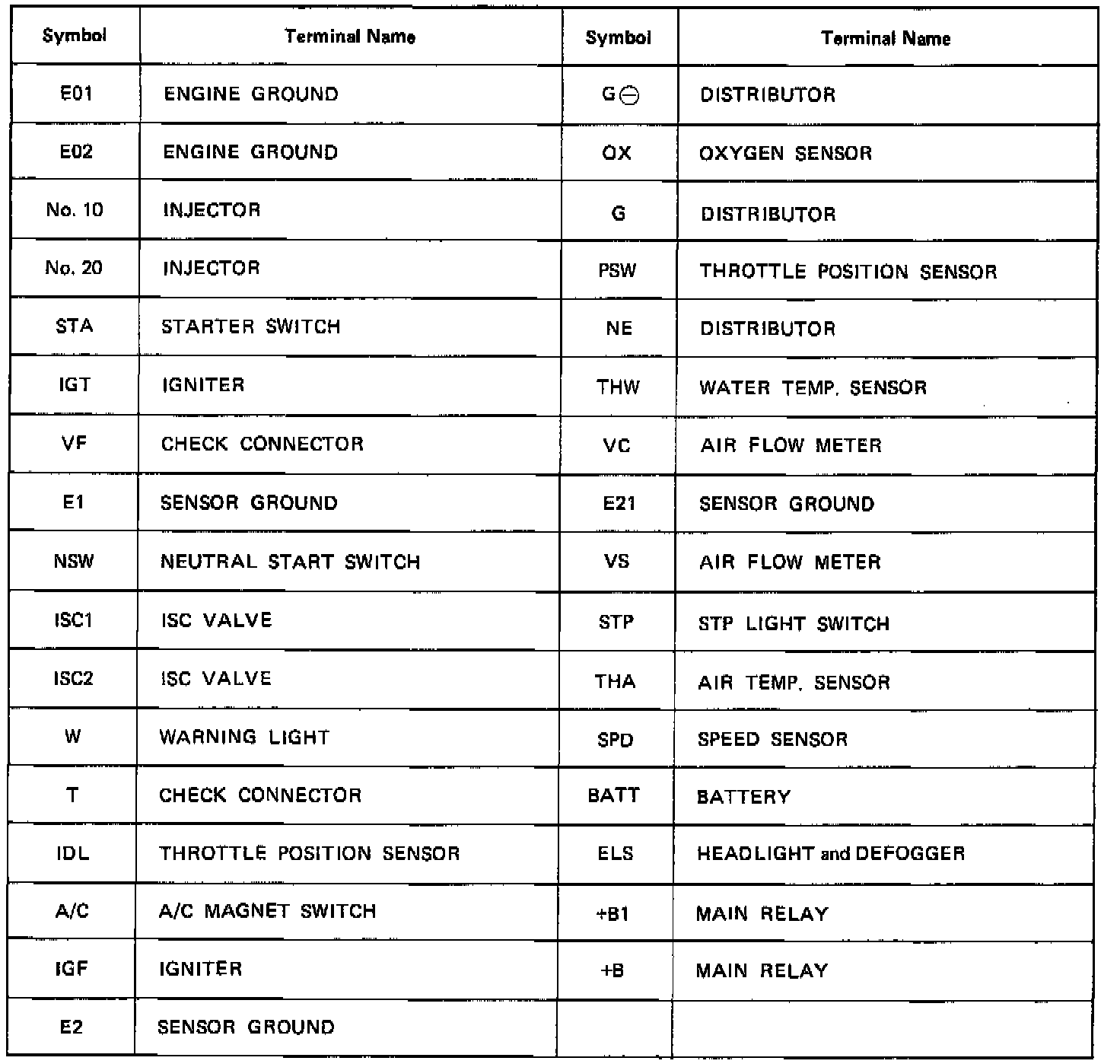

Terminals of ECU

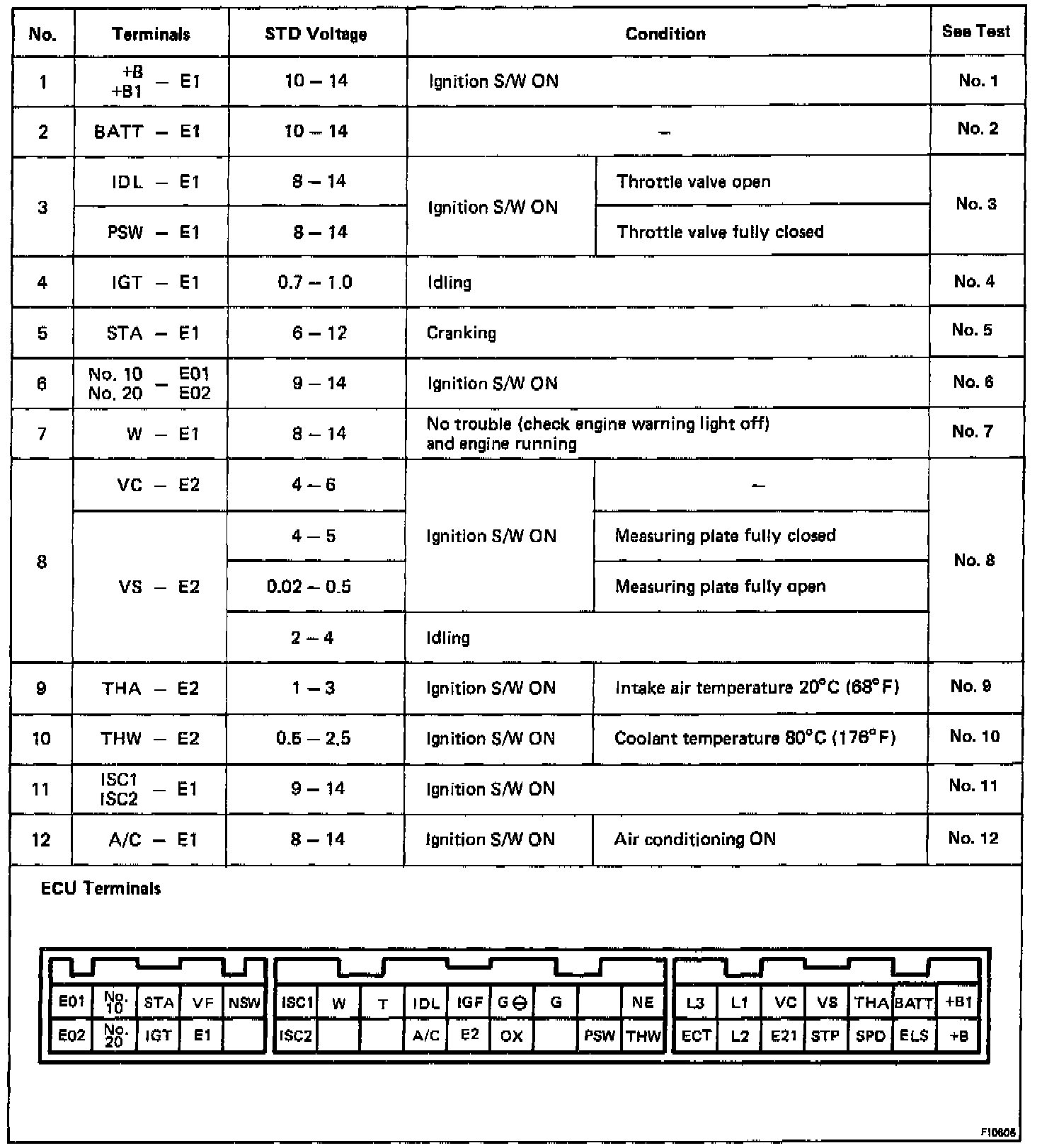

Voltage at ECU Wiring Connectors

NOTE: If there are any problems, proceed with test indicated in left column.
