Emission Control Systems: Diagrams

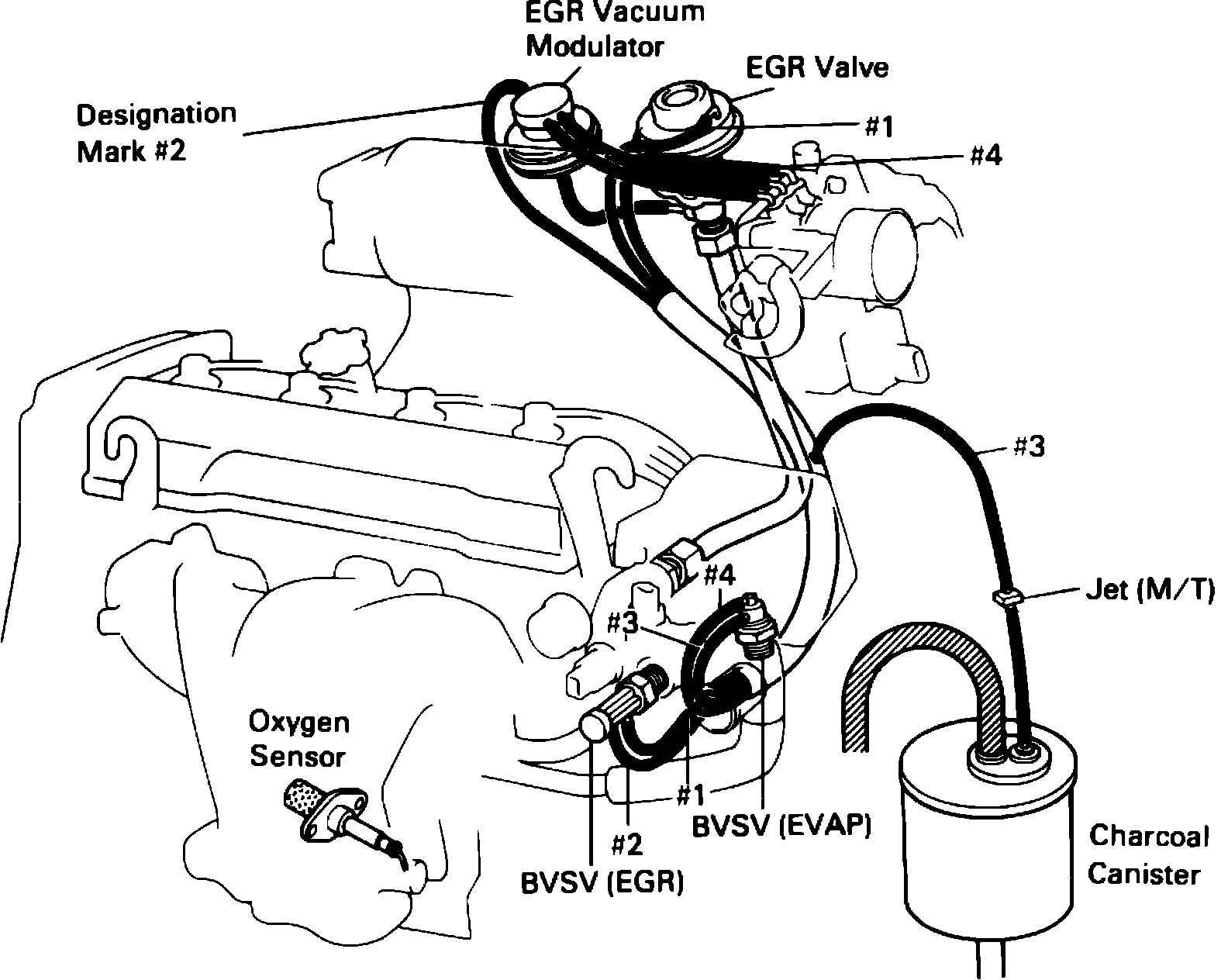

Fig. 36 Emission control system & engine compartment reference diagram.:
