Torque Specifications

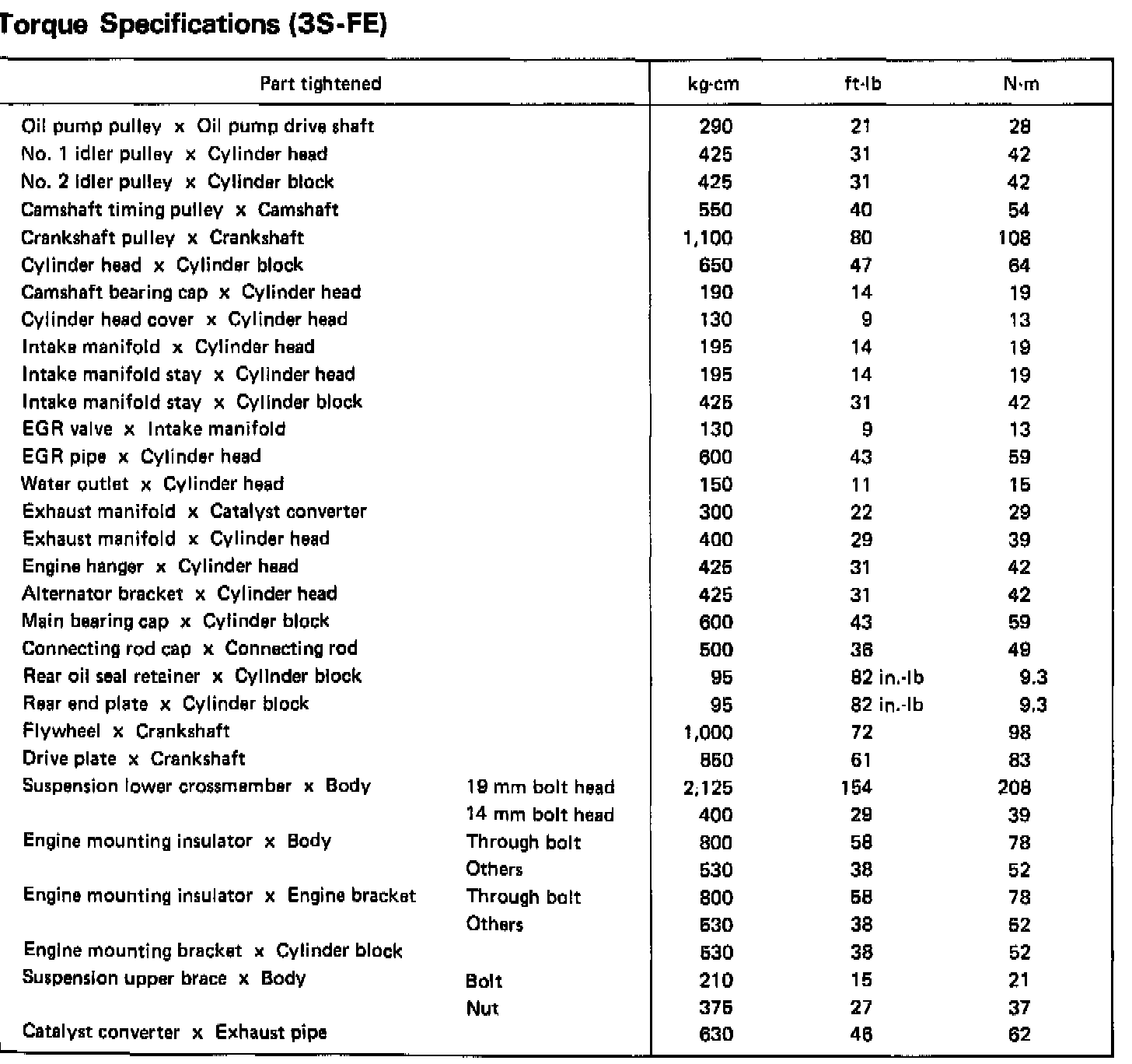

Torque Chart 3S-FE:

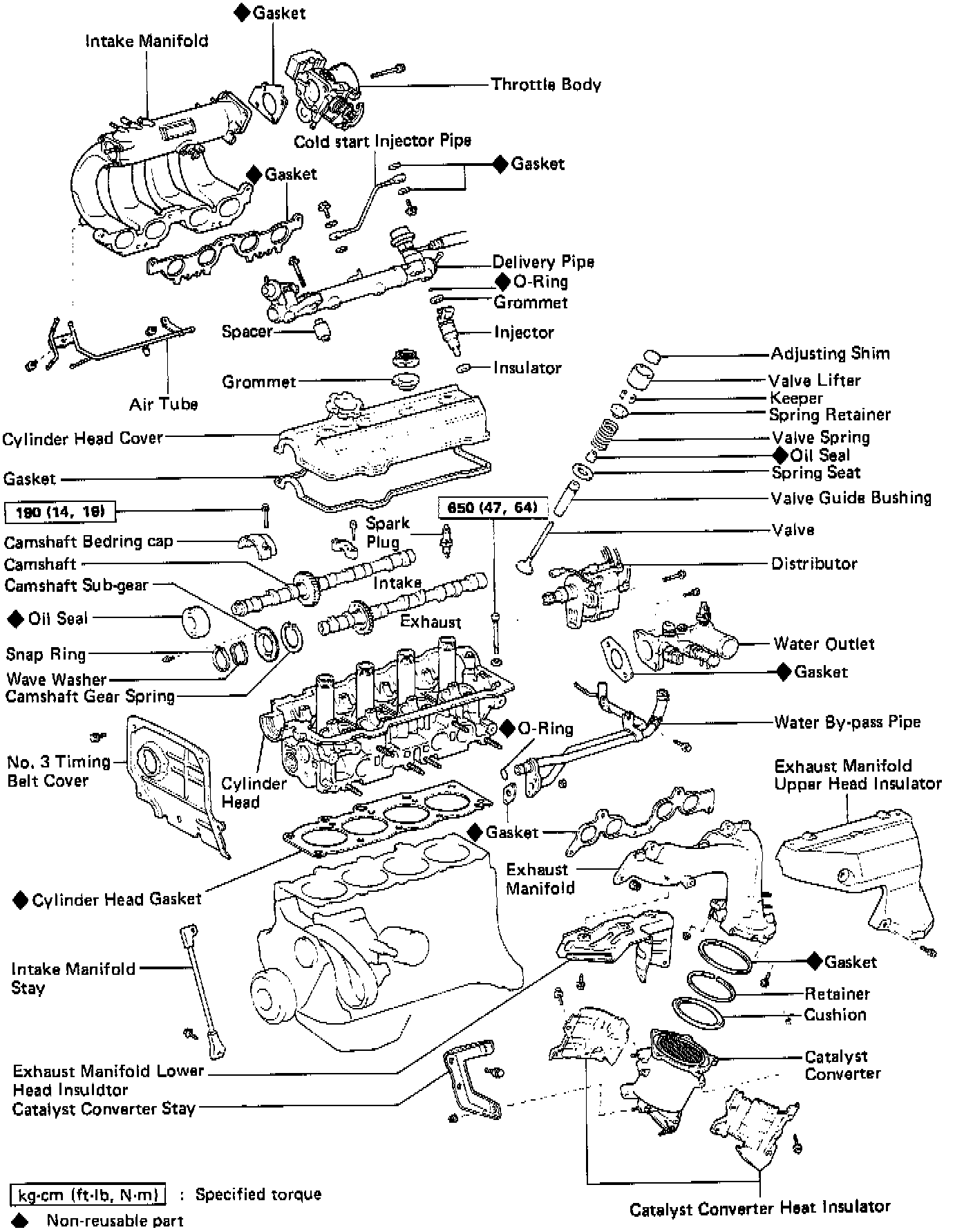

Upper Engine Torque Values 3S-FE:

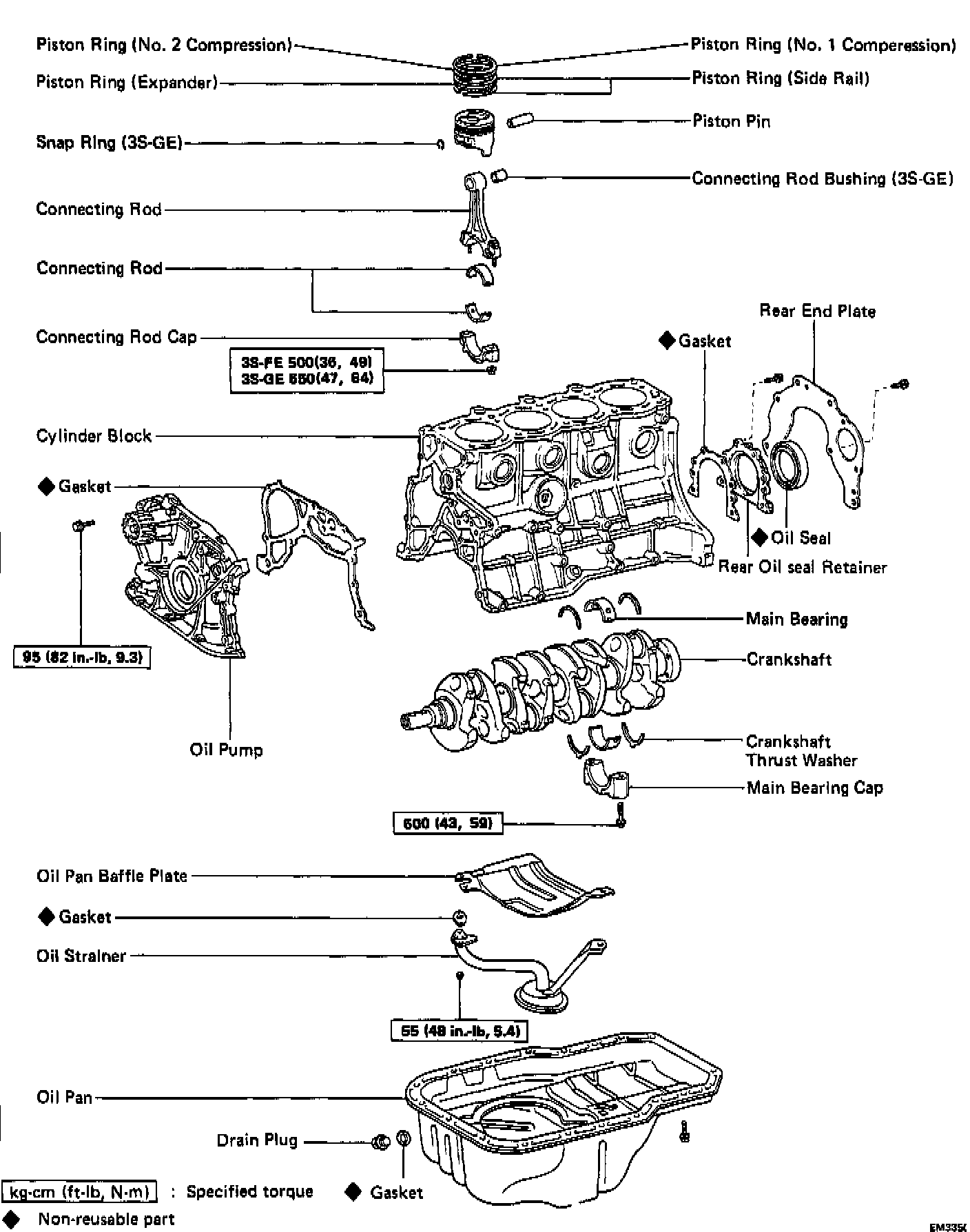

Lower Engine Torque Values 3S-GE/3S-FE:

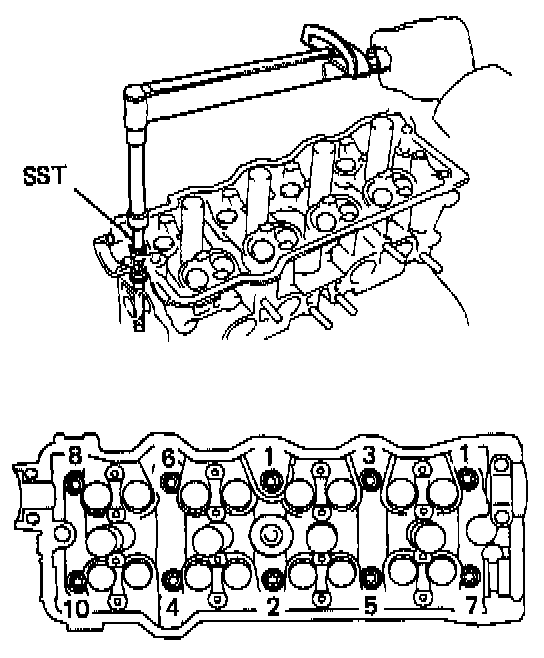

3S-FE Cylinder Head Tightening Sequence:






Main Bearing Torque Sequence:






3S-FE Flywheel Torque Sequence:
