Antitheft - Intrusion Monitoring System Update
REFERENCE ACCESSORIESNUMBER 023
DATE 02-27-87
MODEL 1987 CELICA CONVERTIBLE
TITLE - INTRUSION MONITORING SYSTEM
Condition: Instructions for wiring connections at fuse box and trunk latch in 1987 Celica Installation Manual for Intrusion Monitoring System are not the same as instructions for Celica Convertible.
Cause: Wiring on Celica Hardtop is different from wiring on Celica Convertible. Striker plate on trunk latch is also revised on convertible.
Correction: The steps below apply to the Celica Convertible.

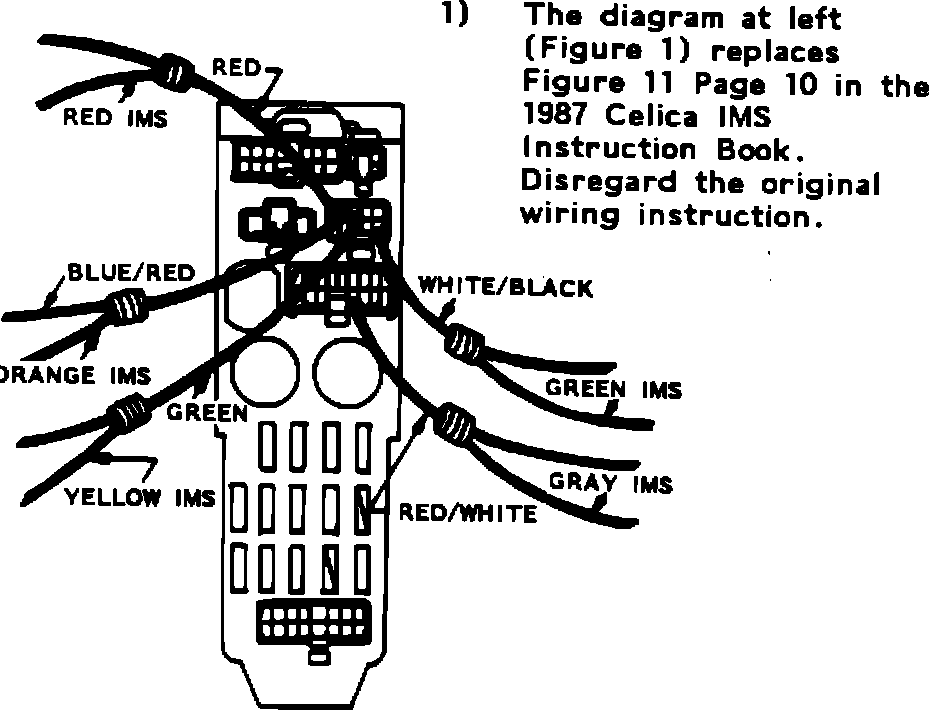

Figure 1:
1) The diagram at left (Figure 1) replaces 30mFigure 11 Page 10 in the 1987 Celica IMS Instruction Book. 30mDisregard the original wiring instruction.
Connect the IMS wires to the vehicle wires as follows:
IMS WIRE FUNCTION CONNECTS TO LOCATION OF
COLOR VEHICLE WIRE VEHICLE WIRE
COLOR
Gray Door Open Red/White Above fuse box, bottom
Sensor connector fourth wire from
right, bottom row.
Orange Accessory Blue/Red Above fuse box, bottom
Power right connector, second wire
from left, top row.
Yellow Parking Green Above fuse box, middle
Lights right connector, third
wire from left, top row.
Red Battery Red Above fuse box, middle right
Power connector, far left wire,
top row.
Green Ground White/Black Above fuse box, middle
right connector, far right wire, bottom row.
Figure 2A:

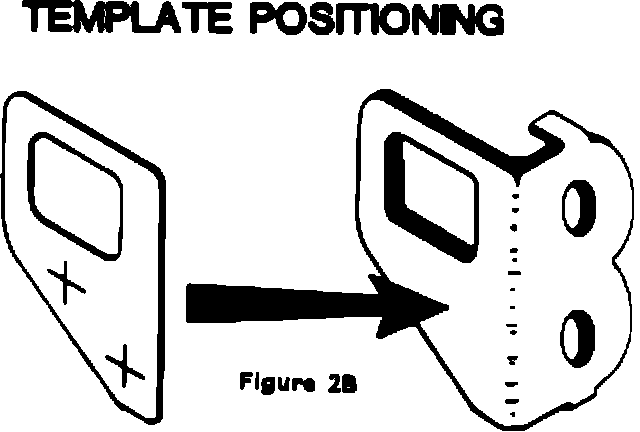

Figure 2B:
2) The trunk latch striker plate in the convertible will require modification before the trunk switch can be installed. Stop before proceeding beyond Step 6 Page 10 in the 1987 Celica IMS Instruction Book. Use the full size template below (Figure 2A). Cut out the template and place against the striker plate as shown (Figure 2B). Center punch for two holes. Using a 3/16 inch drill, drill both holes through the plate. Proceed with Step 7 Page 11 in the Instruction Book.
