Operation CHARM
: Car repair manuals for everyone.
Home
>>
Toyota
>>
1987
>>
Landcruiser 4WD L6-4227cc 2F
>>
Parts and Labor
>>
Transmission and Drivetrain
>>
Differential Assembly
>>
Images
Images

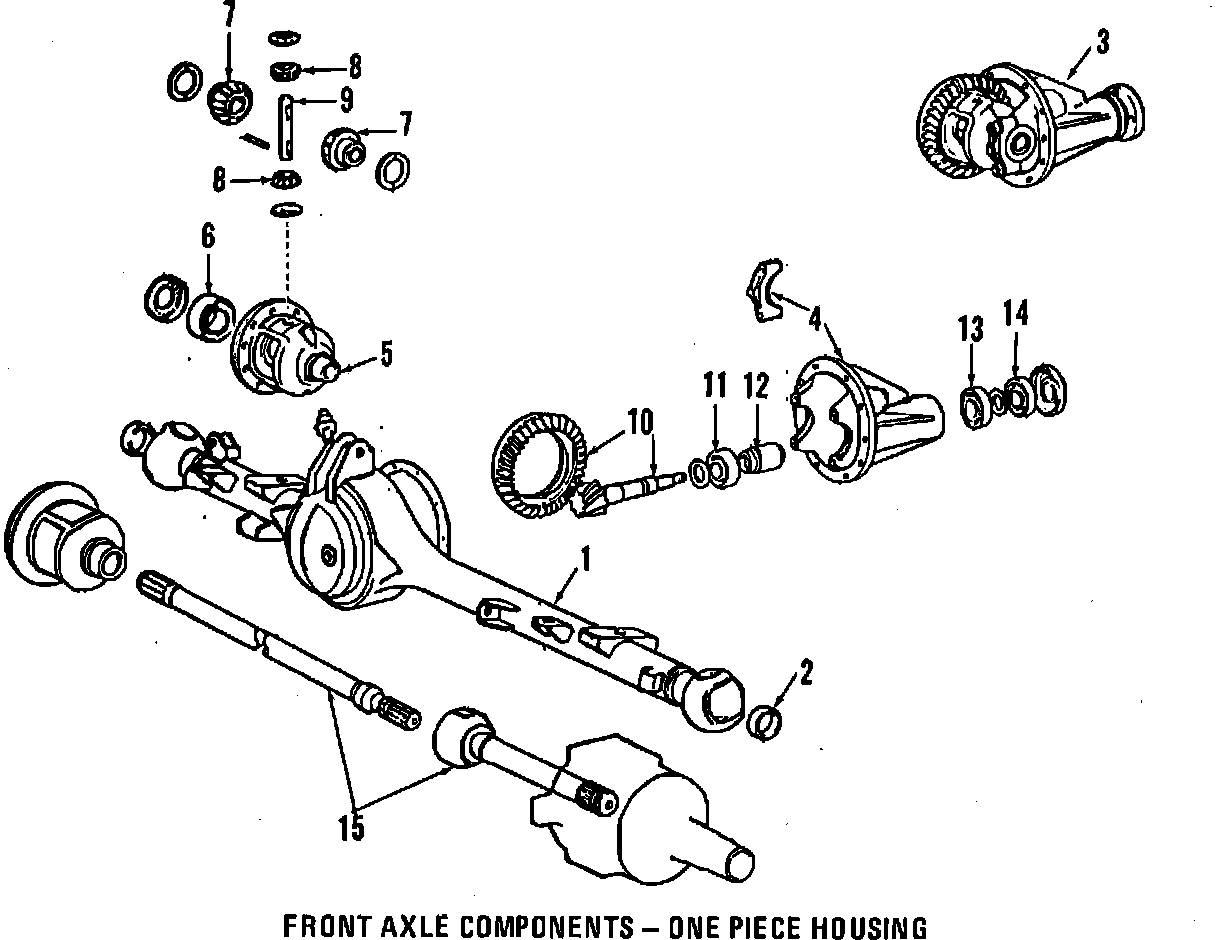

Front, One Piece Housing:

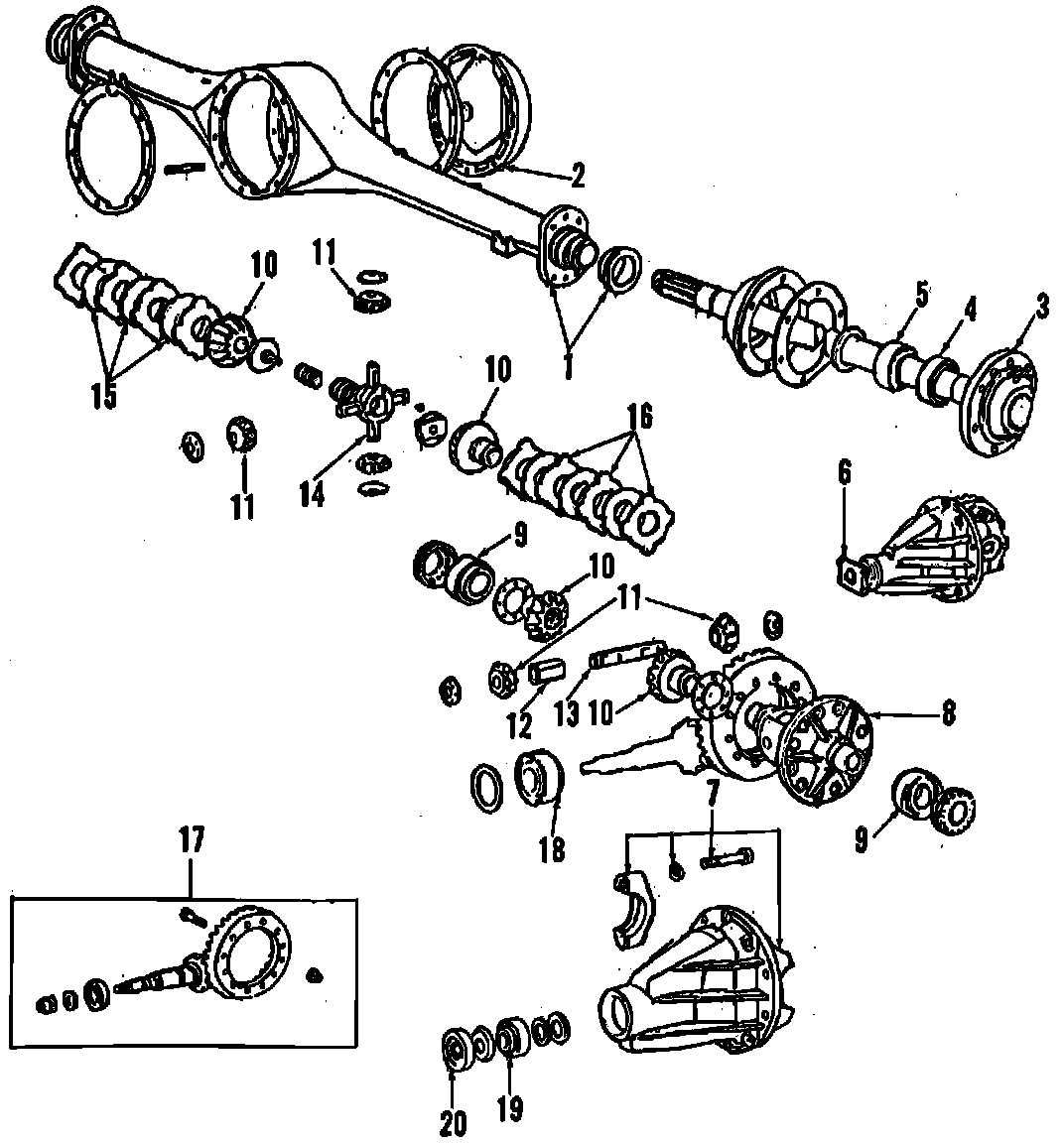

Rear Differential:
