Home >> Toyota >> 1987 >> Supra L6-3.0L DOHC (7M-GE) >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> A/C Signal >> Testing and Inspection

A/C Signal: Testing and Inspection

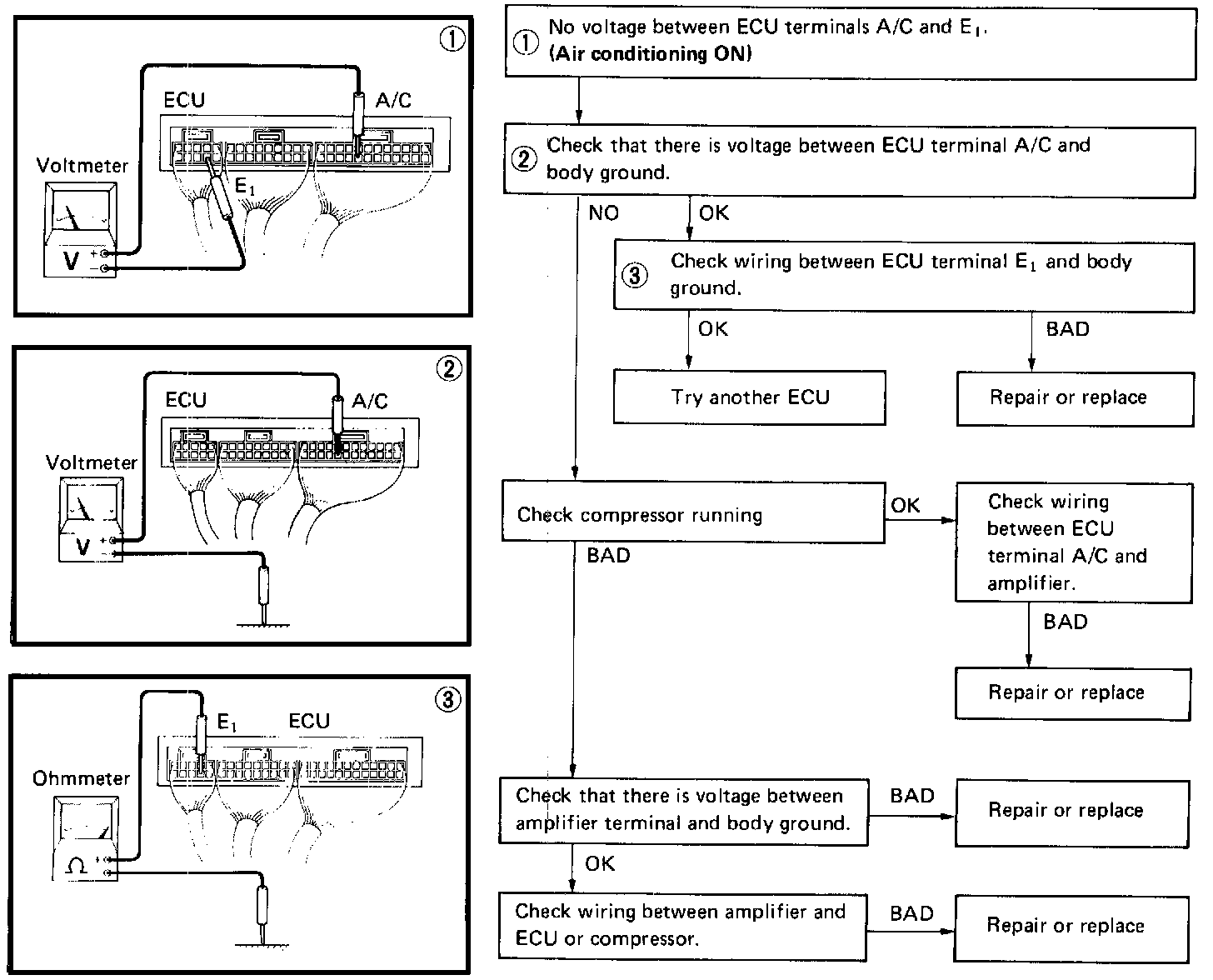

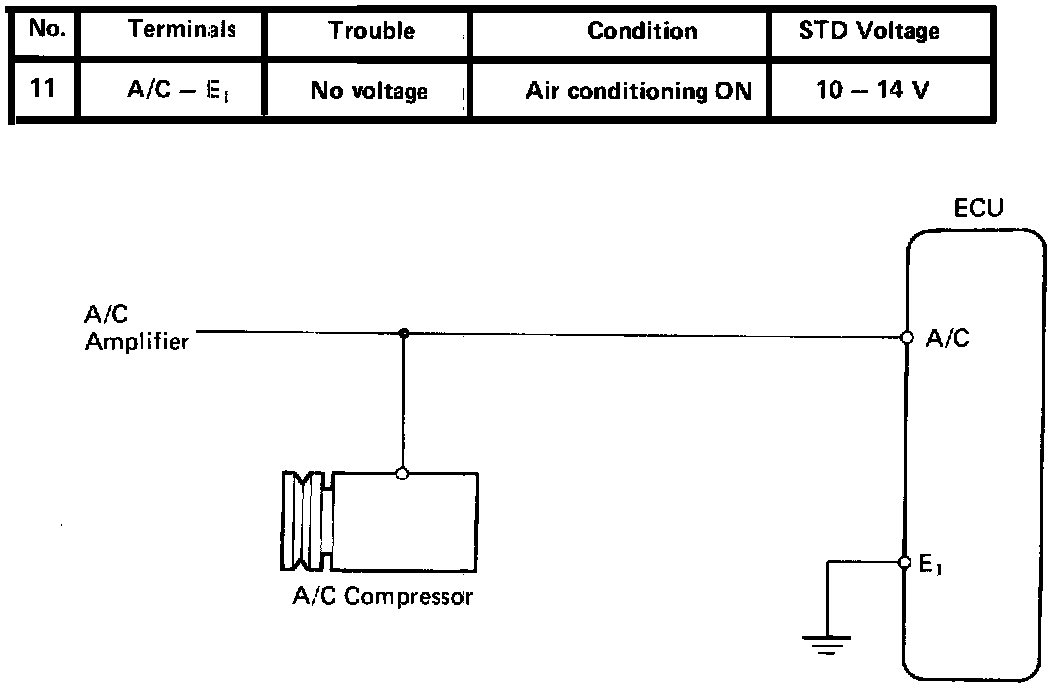

Circuit Test No. 11
